搜轴承 -- 黑板报 -- 轴承B2420、轴承B2816、轴承B2824、轴承B3012、轴承B3016...
轴承B2420、轴承B2816、轴承B2824、轴承B3012、轴承B3016、轴承B3216、轴承S3016、轴承S2020、轴承S68
发布时间：2025-05-04

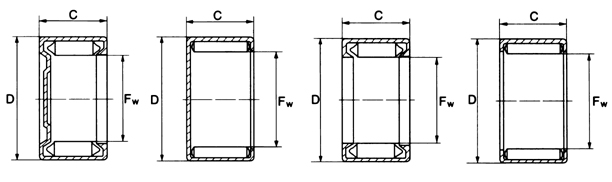

冲压外圈满针轴承
| 轴承型号 | 外形尺寸 | |
| Fw ×D × C | ||
| B44 | 6.35×11.112×6.35 | |
| B57 | 7.938×12.7×11.11 | |
| S68 | B68 | 9.525×14.288×12.7 |
| B78 | 11.112×15.875×12.7 | |
| B88 | 12.7×17.462×12.7 | |
| B810 | 12.7×17.462×15.88 | |
| B108 | 15.875×20.638×12.7 | |
| B1012 | 15.875×20.638×19.05 | |
| B128 | 19.05×25.4×12.7 | |
| B1612 | 25.4×31.75×19.05 | |
| B1616 | 25.4×31.75×25.4 | |
| B1812 | 28.575×34.925×19.05 | |
| B1816 | 28.575×34.925×25.4 | |
| B2012 | 31.75×38.1×19.05 | |
| B2016 | 31.75×38.1×25.4 | |
| S2020 | B2020 | 31.75×38.1×31.75 |
| B2220 | 34.925×41.275×31.75 | |
| B2416 | 38.1×47.625×25.4 | |
| B2420 | 38.1×47.625×31.75 | |
| B2816 | 44.45×53.975×25.4 | |
| B2824 | 44.45×53.975×38.1 | |
| B3012 | 47.625×57.15×19.05 | |
| S3016 | B3016 | 47.625×57.15×25.4 |
| B3216 | 50.8×60.325×25.4 | |
