FC5272200轴承、FC5274200轴承、FC5274220轴承、SFC5274220轴承、FC5274230轴承

发布时间：2019-10-17

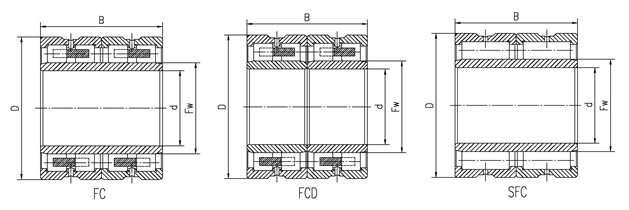

型号	原代号	外形尺寸(mm)					基本负荷(KN)		极限转速(r/min)		重量(KG)
		d	D	B	R2smin	Fw(Ew)	动	静	Old_spec	Designations
FC5072160	-	250	360	160	3	282	1080	2780	1100	1400	57
FC5072220	672750K	250	360	220	3	282	1500	4200	1100	1400	78.5
SFC5072220	-	250	360	220	3	282	1800	4600	1100	1400	78.5
FC5272192	-	260	360	192	3	288	1275	3450	1100	1400	62.3
SFC5272192	-	260	360	192	3	288	1500	3750	1100	1400	62
FC5272200	-	260	360	200	3	288	1485	4200	1100	1400	64.9
FC5274200	672752K	260	370	200	3	292	1410	4050	1100	1400	74.2
FC5274220	672752	260	370	220	3	292	1520	4350	1100	1400	75.8
SFC5274220	-	260	370	220	3	292	1900	4900	1100	1400	73.5
FC5274230	-	260	370	230	3	292	1550	4380	1100	1400	78.6
FC5276220	672752Y	260	380	220	3	292	1520	4350	1100	1400	91.2
FCD5276280	-	260	380	280	3	294	2300	6600	1100	1400	107
-	672852	260	380	280	3	295	1970	5700	1100	1400	114.5
FC5280200	-	260	400	200	4	296	1800	4050	1000	1300	95.6
FCD5280290	-	260	400	290	4	296	2710	7100	1000	1300	95.4
SFC5476230	-	270	380	230	3	298	2080	5170	1000	1300	85
FC5476230	672754	270	380	230	3	298	1752	4550	1000	1300	85.3
FC5476275	-	270	380	275	3	298	2240	6400	1000	1300	96
FC5478220	-	270	390	220	3	306	1840	5000	1000	1300	86
FC5478240	-	270	390	240	3	298	2150	5450	1000	1300	91.5
SFC5478240	-	270	390	240	3	298	2410	5680	1000	1300	-
FC5480220	-	270	400	220	3	305	1835	4570	1000	1300	100
FC5675200	672956	280	375	200	3	307	1480	4300	1000	1300	65.1
FC5676192	-	280	380	192	3	310	1430	4100	1000	1300	61.5
FC5676290	-	280	380	290	3	308	1890	5830	1000	1300	100
FCD5676290	-	280	380	290	3	308	1890	5830	1000	1300	100
FC5678200	672756	280	390	220	3	312	1800	5350	1000	1300	85.1
FCD5678200	-	280	390	220	3	312	1800	5350	1000	1300	85
FC5678240	-	280	390	240	3	312	1765	5200	1000	1300	93.4
FC5678275	-	280	390	275	3	312	2240	6500	1000	1300	101
