搜轴承 -- 黑板报 -- SFC4260210轴承、FCD4260210轴承、FC4460192轴承、FC4462157�...

SFC4260210轴承、FCD4260210轴承、FC4460192轴承、FC4462157轴承、SFC4462157轴承

发布时间：2025-05-04

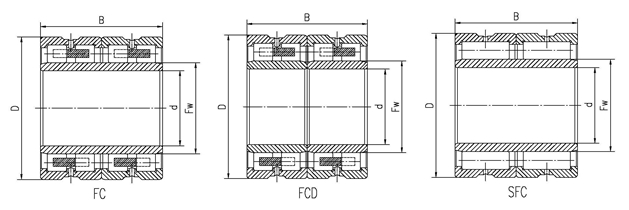

型号	原代号	外形尺寸(mm)					基本负荷(KN)		极限转速(r/min)		重量(KG)
		d	D	B	R2smin	Fw(Ew)	动	静	Old_spec	Designations
SFC4260210	-	210	300	210	2.1	234	1400	3400	1500	1800	50.5
FCD4260210	-	210	300	210	2.1	234	1300	3000	1500	1800	50
FC4460192	672944	220	300	192	2.1	242	1085	3300	1400	1700	41.5
FC4462157	-	220	310	157	2.1	246	935	2500	1400	1700	39.7
SFC4462157	-	220	310	157	2.1	246	1135	2630	1400	1700	39.5
FC4462190	-	220	310	190	2.1	246	1285	3500	1400	1700	47.2
SFC4462192	-	220	310	192	2.1	246	1345	3200	1400	1700	48.5
FC4462192	672744	220	310	192	2.1	246	1105	3100	1400	1700	48.6
FC4462225	-	220	310	225	2.1	245	1470	4100	1400	1700	52.5
FC4464210	-	220	320	210	2.1	248	1320	3500	1400	1700	59.8
FC4466230	-	220	330	230	2.1	249	1720	4300	1300	1600	67.5
-	672844	220	340	192	2.1	246	1600	3440	1300	1600	65.6
SFC4468192	-	220	340	192	2.1	246	1820	3600	1300	1600	65.5
FC4666170	-	230	330	170	2.1	260	1145	2900	1300	1600	50.2
FC4666206	672746	230	330	206	2.1	260	1410	3800	1300	1600	60.8
FC4668260	-	230	340	260	2.1	261	1920	5300	1300	1600	81
FCD4668260	-	230	340	260	2.1	261	1920	5300	1300	1600	80
FC4673250	-	230	365	250	2.1	266	2400	4900	1300	1600	-
FC486620	672748	240	330	220	2.1	246	1840	4890	1300	1600	58.4
FCD4866220	-	240	330	220	2.1	246	1840	4890	1300	1600	58
-	672748K	240	340	192	2.1	266	1220	3150	1300	1600	58
FC4868129	-	240	340	192	2.1	266	1220	3150	1300	1600	58
FCD4870220	-	240	350	220	2.1	270	1630	4200	1300	1600	70
FC4872220	-	240	360	220	2.1	272	1800	4600	1200	1500	83
FC5068170	-	250	340	170	3	274	1145	3280	1200	1500	47.9
FCD5068170	-	250	340	170	3	274	1145	3280	1200	1500	47
SFC507020	-	250	350	220	3	278	1740	4400	1200	1500	69.5
FC5070220	672750	250	350	220	3	278	1350	3800	1200	1500	72.7
FCD5070220	-	250	350	220	3	278	1350	3800	1200	1500	72
FC5070230	-	250	350	230	3	278	1350	3800	1200	1500	74
