JB306230-2Z轴承、JB357036-2Z轴承、JB407736-2Z轴承、JB458844-2Z轴承、JB6010755-2Z轴承、JB6012356-2Z轴承、JB6014958-2Z轴承、JB6014967-2Z轴承、JB8017471-2Z轴承、JB8018571-2Z轴承、JB306230-2RS轴承、JB357036-2RS轴承

发布时间：2025-05-04

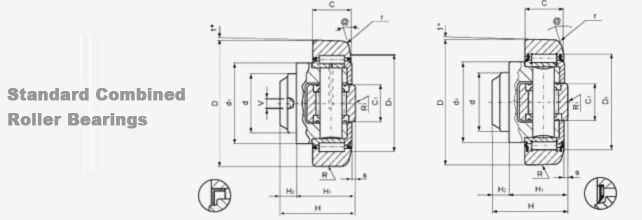

JB Type Dimensions

d D C H H1 H2 D1 C1 d1 S @ r R R1 V C

2Z 2RS mm mm mm mm mm mm mm mm mm mm degree mm mm mm mm KN

JB306230-2Z JB306230-2RS 30 62 20 37.5 30.5 7 50 20 42 2.5 20o 3 500 500 - 31

JB357036-2Z JB357036-2RS 35 70.1 23 44 36 8 57 22 48 2.5 20o 4.5 500 500 M6×1 45.5

JB407736-2Z JB407736-2RS 40 77.7 23 48 36.5 11.5 61 26 53 3 20o 4.5 500 500 M6×1 48

JB458844-2Z JB458844-2RS 45 88.4 30 57 44 13 68 26 59 3.5 20o 4.5 700 700 M6×1 68

JB6010755-2Z JB6010755-2RS 60 107.7 31 69 55 14 82 34 71 4 20o 5 1000 700 M6×1 81

JB6012356-2Z JB6012356-2RS 60 123 37 72.3 56 16.3 92 40 80 5 20o 5 1000 1000 M6×1 110

JB6014958-2Z JB06014958-2RS 60 149 45 78.5 58.5 20 116 50 108 5.5 15o 4 1000 1000 M6×1 151

JB6014967-2Z JB6014967-2RS 60 149 45 86 67 19 120 50 108 5.5 15o 3 1000 1000 1/8G 151

JB8017471-2Z JB8017471-2RS 80 174 55 95 71 24 120 63 120 7 15o 7 - - AS 278

JB8018571-2Z JB8018571-2RS 80 185 55 95 71 24 120 63 120 7 15o 7 - - - 278

Load rating Reference Reference

Co Ca Coa China Germany Italy Italy -

KN KN KN A B C 2Z 2RS

35.5 11.1 11,5 ZGN306230E 4.054 4.0054-62 MR.001 MR.021

51 14 13 ZGN357036E 4.055 4.0055-70 MR.002 MR.022

56.8 18 18 ZGN407736E 4.056 4.0056-78 MR.003 MR.023

72 23 23 ZGN458844E 4.058 4.0058-88 MR.005 MR.025

95 31 36 ZGN6010755E 4.061 4.0061-108 MR.007 MR.027

132 43 50 ZGN6012356E 4.062 4.0062-123 MR.009 MR.029

192 68 71 ZGN6014958E 4.063 4.0063-149 MR.010 MR.030

192 68 71 ZGN6014967E - 4,0011-149 MR.191 -

518 132 210 ZGN8017471E - 4.0037-174 - -

518 132 210 ZGN8018571E - 4.0039-185 - -

JB Type C B D L F H E @ C Co Reference

mm mm mm mm mm mm mm degree KN KN Germany / China

JB306442 30 42 64.8 29.5 20 7 50 20^o 31 35.5 PR2.054/ZGN306442R

JB357348 35 48 73.8 34 23 8 57 20^o 45.5 51 PR2.055/ZGN357348R

JB408153 40 53 81.8 34 23 11.5 61 20^o 48 56.8 PR2.056/ZGN408153R

JB459259 45 59 92.8 41 30 13 68 20^o 68 72 PR2.058/ZGN459259R

JB6011171 60 71 111.8 51.5 31 14 82 20^o 81 95 PR2.061/ZGN6011171R

JB6012780 60 80 127.8 51.5 37 16.3 92 20^o 110 132 PR2.062/ZGN6012780R

JB60153103 60 103 153.8 54 45 20 116 20^o 151 192 PR2.063/ZGN60153103R
