UCHE202外球面轴承带座、UCHE203外球面轴承带座、UCHE204外球面轴承带座

Bearing Unit NO.

Shaft Dia d

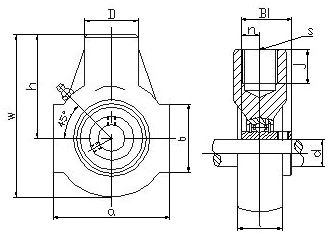

Dimensions(mm)

Bearing No.

Housing No.

Housing
Wt (kg)

(in)

(mm)

a

w

h

D

s

j

Bi

n

l

b

UCHE201-8
UCHE202-9
UCHE202-10
UCHE203-11
UCHE204-12
UCHE201
UCHE202
UCHE203
UCHE204

1/2
9/16
5/8
11/16
3/4

12
15
17
20

65

91

58

30

M16

21

31

12.7

25

38

UC201-8
UC202-9
UC202-10
UC203-11
UC204-12
UC201
UC202
UC203
UC204

HE201
HE202
HE203
HE204

0.25
0.25
0.25
0.4

UCHE205-13
UCHE205-14
UCHE205-15
UCHE205-16
UCHE205

13/16
7/8
15/16
1

25

70

99

64

35

M20

22

34

14.3

28

38

UC205-13
UC205-14
UC205-15
UC205-16
UC205

HE205

0.54

UCHE206-17
UCHE206-18
UCHE206-19
UCHE206-20
UCHE206

1-1/16
1-1/8
1-3/16
1-1/4

30

85

114

72

40

M24

24

38.1

15.9

32

40

UC206-17
UC206-18
UC206-19
UC206-20
UC206

HE206

0.96

UCHE207-20
UCHE207-21
UCHE207-22
UCHE207-23
UCHE207

1-1/4
1-5/16
1-3/8
1-7/16

35

90

122

76

40

M24

24

42.9

17.5

32

49

UC207-20
UC207-21
UC207-22
UC207-23
UC207

HE207

0.81

UCHE208-24
UCHE208-25
UCHE208

1-1/2
1-9/16

40

100

135

85

40

M24

24

49.2

19

36

45

UC208-24
UC208-25
UC208

HE208

1.2

UCHE209-26
UCHE209-27
UCHE209-28
UCHE209

1-5/8
1-11/16
1-3/4

45

110

145

90

40

M24

24

49.2

19

40

46

UC209-26
UC209-27
UC209-28
UC209

HE209

1.33

UCHE210-29
UCHE210-30
UCHE210-31
UCHE210-32
UCHE210

1-13/16
1-7/8
1-15/16
2

50

110

145

90

40

M24

24

51.6

19

40

46

UC210-29
UC210-30
UC210-31
UC210-32
UC210

HE210

1.42
