OFSI40-8T4滚珠丝杠、OFSI40-10T3滚珠丝杠、OFSI40-10T4滚珠丝杠、OFSI50-5T4滚珠丝杠、OFSI50-5T6滚珠丝杠、OFSI50-6T4滚珠丝杠、OFSI50-6T6滚珠丝杠、OFSI50-8T4滚珠丝杠、OFSI50-10T3滚珠丝杠、OFSI50-10T4滚珠丝杠、OFSI50-12T3滚珠丝杠、OFSI63-6T4滚珠丝杠、OFSI63-6T3滚珠丝杠、OFSI63-8T4滚珠丝杠、OFSI63-10T4滚珠丝杠、OFSI63-12T3滚珠丝杠

发布时间：2025-05-04

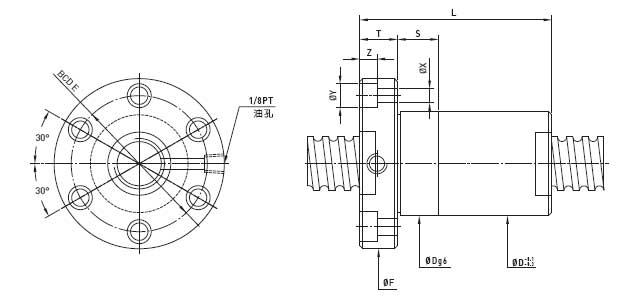

型号规格珠径珠卷数刚性基本额定螺帽法兰法兰孔接触

K 动载静载 D L F T BCD-E X Y Z 面长

外径导程 C(kgf) Co(kgf) S

20-5T3 20 5 3.175 3×2 39 852 1767 34 67 57 12 45 5.5 9.5 5.5 24

20-6T3 20 6 3.969 3*2 39 1091 2081 36 77 60 12 48 5.5 9.5 5.5 24

25-5T3 25 5 3.175 3*2 55 977 2314 40 67 64 12 52 5.5 9.5 5.5 24

25-6T3 25 6 3.969 3*2 56 172 2762 42 77 65 12 53 5.5 9.5 5.5 24

32-5T3 32 5 3.175 3*2 64 1117 3081 48 67 74 12 60 6.5 11 6.5 24

32-5T4 32 5 3.175 4*2 82 1431 4108 48 77 74 12 60 6.5 11 6.5 24

32-6T3 32 6 3.969 3*2 65 1446 3620 50 67 76 12 62 6.5 11 6.5 24

32-6T4 32 6 3.969 4*2 84 1852 4826 50 90 76 12 62 6.5 11 6.5 24

32-8T3 32 8 4.763 3*2 68 1810 4227 52 100 78 16 64 6.6 11 6.5 24

32-8T4 32 8 4.763 4*2 82 2317 5635 52 117 78 16 64 6.6 11 6.5 24

32-10T3 32 10 6.35 3*2 68 2539 5327 56 120 82 16 68 6.6 11 6.5 24

36-8T4 36 8 4.763 4*2 88 2531 6614 56 16 86 15 70 9 14 8.5 24

40-5T4 40 5 3.175 4*2 99 1599 5280 54 81 80 16 66 6.6 11 6.5 24

40-5T6 40 5 3.175 6*2 146 2265 7919 54 102 80 16 66 6.6 11 6.5 24

40-6T4 40 6 3.969 4*2 100 2136 6420 56 94 88 16 72 9 14 8.5 30

40-6T6 40 6 3.969 6*2 148 3028 9630 56 119 88 16 72 9 14 8.5 30

40-8T4 40 8 4.763 4*2 102 2728 7596 60 117 92 16 75 9 14 8.5 30

40-10T3 40 10 6.35 3*2 76 2959 7069 65 123 96 16 80 9 14 8.5 30

40-10T4 40 10 6.35 4*2 101 3789 9426 65 143 96 16 80 9 14 8.5 30

50-5T4 50 5 3.175 4*2 121 1757 6745 65 81 96 16 80 9 14 8.5 30

50-5T6 50 5 3.175 6*2 177 2490 10117 65 102 96 16 80 9 14 8.5 30

50-6T4 50 6 3.969 4*2 123 2388 8250 68 94 100 16 84 9 14 8.5 30

50-6T6 50 6 3.969 6*2 179 3384 12375 68 119 100 16 84 9 14 8.5 30

50-8T4 50 8 4.763 4*2 122 2998 9578 70 120 102 16 85 9 14 8.8 30

50-10T3 50 10 6.35 3*2 95 3397 9256 74 123 114 18 92 11 17.5 11 40

50-10T4 50 10 6.35 4*2 124 4350 12341 74 143 114 18 92 11 17.5 11 40

50-12T3 50 12 7.938 3*2 94 4420 11047 78 147 118 18 96 11 17.5 11 40

63-6T4 63 6 3.969 4*2 148 2614 10542 80 96 119 18 98 11 17.5 11 40

63-6T3 63 6 3.969 3*2 220 3704 15813 80 121 119 18 98 11 17.5 11 40

63-8T4 63 8 4.763 4*2 152 3395 12541 82 119 122 18 100 11 17.5 11 40

63-10T4 63 10 6.35 4*2 158 4860 15858 88 147 134 20 110 14 20 13 40

63-12T3 63 12 7.938 3*2 114 5059 14470 92 150 138 20 114 14 20 13 40

上一篇：OFSW1605B1滚珠丝杠、OFSW1605A1滚珠丝杠、OFSW2005B1滚珠丝杠、OFSW2005A2滚珠丝杠、OFSW2006B1滚珠丝杠、OFSW2504B1滚珠丝杠、OFSW2504B2滚珠丝杠、OFSW2505B1滚珠丝杠、OFSW2505A2滚珠丝杠、OFSW2505C1滚珠丝杠、OFSW2506A2滚珠丝杠、OFSW2506C1滚珠丝杠、OFSW2510A1滚珠丝杠、OFSW2805B1滚珠丝杠、OFSW2805B2滚珠丝杠、OFSW2806A2滚珠丝杠 —— 下一篇：OFSI20-5T3滚珠丝杠、OFSI20-6T3滚珠丝杠、OFSI25-5T3滚珠丝杠、OFSI25-6T3滚珠丝杠、OFSI32-5T3滚珠丝杠、OFSI32-5T4滚珠丝杠、OFSI32-6T3滚珠丝杠、OFSI32-6T4滚珠丝杠、OFSI32-8T3滚珠丝杠、OFSI32-8T4滚珠丝杠、OFSI32-10T3滚珠丝杠、OFSI36-8T4滚珠丝杠、OFSI40-5T4滚珠丝杠、OFSI40-5T6滚珠丝杠、OFSI40-6T4滚珠丝杠、OFSI40-6T6滚珠丝杠

返回搜轴承首页

型号	规格		珠径	珠卷数	刚性	基本额定		螺帽		法兰			法兰孔			接触
	规格				K	动载	静载	D	L	F	T	BCD-E	X	Y	Z	面长
	外径	导程			K	C(kgf)	Co(kgf)	D	L	F	T	BCD-E	X	Y	Z	S
20-5T3	20	5	3.175	3×2	39	852	1767	34	67	57	12	45	5.5	9.5	5.5	24
20-6T3	20	6	3.969	3*2	39	1091	2081	36	77	60	12	48	5.5	9.5	5.5	24
25-5T3	25	5	3.175	3*2	55	977	2314	40	67	64	12	52	5.5	9.5	5.5	24
25-6T3	25	6	3.969	3*2	56	172	2762	42	77	65	12	53	5.5	9.5	5.5	24
32-5T3	32	5	3.175	3*2	64	1117	3081	48	67	74	12	60	6.5	11	6.5	24
32-5T4	32	5	3.175	4*2	82	1431	4108	48	77	74	12	60	6.5	11	6.5	24
32-6T3	32	6	3.969	3*2	65	1446	3620	50	67	76	12	62	6.5	11	6.5	24
32-6T4	32	6	3.969	4*2	84	1852	4826	50	90	76	12	62	6.5	11	6.5	24
32-8T3	32	8	4.763	3*2	68	1810	4227	52	100	78	16	64	6.6	11	6.5	24
32-8T4	32	8	4.763	4*2	82	2317	5635	52	117	78	16	64	6.6	11	6.5	24
32-10T3	32	10	6.35	3*2	68	2539	5327	56	120	82	16	68	6.6	11	6.5	24
36-8T4	36	8	4.763	4*2	88	2531	6614	56	16	86	15	70	9	14	8.5	24
40-5T4	40	5	3.175	4*2	99	1599	5280	54	81	80	16	66	6.6	11	6.5	24
40-5T6	40	5	3.175	6*2	146	2265	7919	54	102	80	16	66	6.6	11	6.5	24
40-6T4	40	6	3.969	4*2	100	2136	6420	56	94	88	16	72	9	14	8.5	30
40-6T6	40	6	3.969	6*2	148	3028	9630	56	119	88	16	72	9	14	8.5	30
40-8T4	40	8	4.763	4*2	102	2728	7596	60	117	92	16	75	9	14	8.5	30
40-10T3	40	10	6.35	3*2	76	2959	7069	65	123	96	16	80	9	14	8.5	30
40-10T4	40	10	6.35	4*2	101	3789	9426	65	143	96	16	80	9	14	8.5	30
50-5T4	50	5	3.175	4*2	121	1757	6745	65	81	96	16	80	9	14	8.5	30
50-5T6	50	5	3.175	6*2	177	2490	10117	65	102	96	16	80	9	14	8.5	30
50-6T4	50	6	3.969	4*2	123	2388	8250	68	94	100	16	84	9	14	8.5	30
50-6T6	50	6	3.969	6*2	179	3384	12375	68	119	100	16	84	9	14	8.5	30
50-8T4	50	8	4.763	4*2	122	2998	9578	70	120	102	16	85	9	14	8.8	30
50-10T3	50	10	6.35	3*2	95	3397	9256	74	123	114	18	92	11	17.5	11	40
50-10T4	50	10	6.35	4*2	124	4350	12341	74	143	114	18	92	11	17.5	11	40
50-12T3	50	12	7.938	3*2	94	4420	11047	78	147	118	18	96	11	17.5	11	40
63-6T4	63	6	3.969	4*2	148	2614	10542	80	96	119	18	98	11	17.5	11	40
63-6T3	63	6	3.969	3*2	220	3704	15813	80	121	119	18	98	11	17.5	11	40
63-8T4	63	8	4.763	4*2	152	3395	12541	82	119	122	18	100	11	17.5	11	40
63-10T4	63	10	6.35	4*2	158	4860	15858	88	147	134	20	110	14	20	13	40
63-12T3	63	12	7.938	3*2	114	5059	14470	92	150	138	20	114	14	20	13	40
