K15X19X13滚针轴承、K15X19X17滚针轴承、K15X19X24ZW滚针轴承、K15X20X13滚针轴承
发布时间：2026-05-07
|
轴 径 Shaft Diameter |
轴承型号 Bearing Designation |
重量 Mass 近似 Approx |

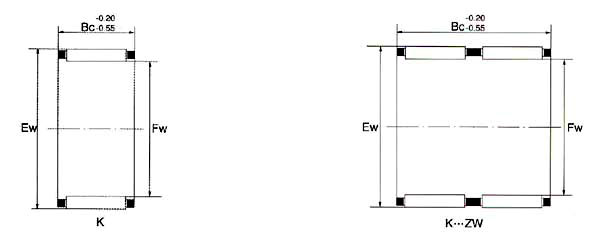

外形尺寸 Boundary Dimensions |
基本额定负荷 Basic Load Rating |
极限转速 Limiting Speed | ||||
|
现行的 Current |
原型号 Original Code |
Fw |
Ew |
Bc |
动Cr Dynamic |
静Cor Static |
油润滑 Oil | ||
| mm | g | mm | N | rpm | |||||
| 15 | K15X19X13 | 39241/15 | 7 | 15 | 19 | 13 | 8300 | 9800 | 22000 |
| K15X19X17 | 59241/15 | 8.8 | 15 | 19 | 17 | 10300 | 15000 | 22000 | |
| K15X19X24 ZW | 79241/15 | 10.5 | 15 | 19 | 24 | 12800 | 20100 | 22000 | |
| K15X20X13 | 29242/15 | 8.9 | 15 | 20 | 13 | 9700 | 11000 | 22000 | |
| K15X21X12 | 19243/15 | 10 | 15 | 21 | 12 | 10000 | 13000 | 22000 | |
| K15X21X15 | 39242/15 | 13 | 15 | 21 | 15 | 13800 | 16000 | 22000 | |
| K15X21X21 | 18.2 | 15 | 21 | 21 | 18000 | 24000 | 22000 | ||
| 16 | K16X20X10 | 29241/16 | 5.7 | 16 | 20 | 10 | 7600 | 9700 | 22000 |
| K16X20X13 | 39241/16 | 7.1 | 16 | 20 | 13 | 8700 | 11300 | 22000 | |
| K16X20X17 | 59241/16 | 9.2 | 16 | 20 | 17 | 11200 | 16300 | 22000 | |
| K16X21X10 | 19242/16 | 3.7 | 16 | 21 | 10 | 9000 | 12000 | 22000 | |
| K16X22X12 | 19243/16 | 10.4 | 16 | 22 | 12 | 11000 | 12000 | 21000 | |
| K16X22X13 | 11.9 | 16 | 22 | 13 | 12000 | 13400 | 21000 | ||
| K16X22X16 | 13.7 | 16 | 22 | 16 | 14300 | 17000 | 21000 | ||
| K16X22X20 | 49243/16 | 16.7 | 16 | 22 | 20 | 18000 | 22300 | 21000 | |
| K16X23X14 | 19244/16 | 20 | 16 | 23 | 14 | 19000 | 21000 | 19000 | |
| K16X24X20 | 19245/16 | 24.9 | 16 | 24 | 20 | 21100 | 23000 | 20000 | |
| 17 | K17X21X10 | 29241/17 | 5.6 | 17 | 21 | 10 | 7900 | 10100 | 21000 |
| K17X21X13 | 39241/17 | 7.5 | 17 | 21 | 13 | 10000 | 14100 | 21000 | |
| K17X21X17 | 59241/17 | 9.5 | 17 | 21 | 17 | 12000 | 17400 | 21000 | |
| K17X23X14 | 29243/17 | 11.5 | 17 | 23 | 14 | 11000 | 15000 | 21000 | |
| 18 | K18X22X10 | 29241/18 | 6.1 | 18 | 22 | 10 | 8200 | 9900 | 20000 |
| K18X22X13 | 39241/18 | 7.7 | 18 | 22 | 13 | 9000 | 12100 | 20000 | |
| K18X22X17 | 59241/18 | 10.8 | 18 | 22 | 17 | 11900 | 17600 | 20000 | |
| K18X24X12 | 19243/18 | 11.6 | 18 | 24 | 12 | 11200 | 12900 | 20000 | |
| K18X24X13 | 12.6 | 18 | 24 | 13 | 12900 | 14900 | 20000 | ||
| K18X24X13.5 | 13 | 18 | 24 | 13.5 | 12900 | 14900 | 20000 | ||
| K18X24X20 | 49243/18 | 19 | 18 | 24 | 20 | 20000 | 26500 | 20000 | |
| K18X25X14 | 14.9 | 18 | 25 | 14 | 16500 | 18800 | 20000 | ||
| K18X25X22 | 24.9 | 18 | 25 | 22 | 22900 | 28400 | 20000 | ||
| K18X26X14 | 19 | 18 | 26 | 14 | 18000 | 20000 | 18000 | ||
| K18X28X16 | 19244/18 | 24 | 18 | 28 | 16 | 19000 | 18400 | 19000 | |
| 19 | K19X23X13 | 8.2 | 19 | 23 | 13 | 9300 | 13000 | 20000 | |
| K19X23X17 | 11.1 | 19 | 23 | 17 | 12000 | 18600 | 20000 | ||
| 20 | K20X24X10 | 29241/20 | 6.5 | 20 | 24 | 10 | 8700 | 12100 | 19000 |
| K20X24X12 | 8 | 20 | 24 | 12 | 9600 | 13800 | 19000 | ||
| K20X24X13 | 39241/20 | 8.9 | 20 | 24 | 13 | 9600 | 13800 | 19000 | |
| K20X24X17 | 29241/20 | 11.2 | 20 | 24 | 17 | 12400 | 20000 | 19000 | |
| K20X26X12 | 19243/20 | 13.2 | 20 | 26 | 12 | 13100 | 15700 | 19000 | |
