32960圆锥滚子轴承、2007160圆锥滚子轴承、32064圆锥滚子轴承

发布时间：2026-06-24

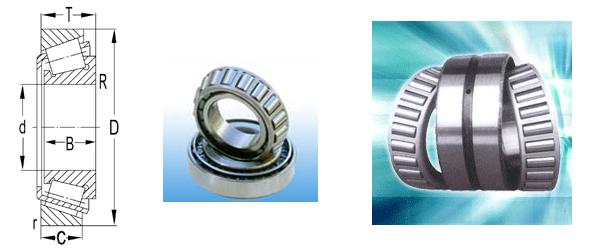

Designations	Principal dimensions(mm)									Basic load ratings(kN)		Speed ratings (rpm)		Weight(kg)
	d	D	T	B	C	R(radial)	R(axial)	r(raxial)	r(axial)	dyc(Cr)	stc(Cor)	Grease	Oil
2007930	150	210	38.5	36	31	2.5	2.5	2	2	199	384	1500	200	4.56
2007130	150	225	48.5	45	38	3	3	2.5	2.5	254	454	950	1400	6.84
30230	150	270	48	45	38	4	4	3	3	409	606	1300	1800	11.2
32230	150	270	77	73	60	4	4	3	3	669	1142	1200	1700	18.4
30330	150	320	72	65	55	5	5	4	4	744	1050	1100	1600	25.5
32330	150	320	114	108	90	5	5	4	4	1168	1876	950	1400	42.2
2007932	160	220	38.5	36	31	2.5	2.5	2	2	211	400	1500	200	3.79
2007132	160	240	51.5	48	41	3	3	2.5	2.5	343	629	1100	1600	7.67
30232	160	290	52	48	40	4	4	3	3	466	696	1100	1600	13.4
32232	160	290	84	80	67	4	4	3	3	797	1392	1100	1600	23.3
27332	160	340	88	79	54	3.7	3.7	3.7	3.7	750	1081	1000	1500	29.9
32332	160	340	121	114	95	5	5	4	4	1400	2230	1000	1500	51.7
7832	160	375	87.3	79.4	50.3	4.7	4.7	4.7	4.7	790	1057	100	1500	40.7
2007934	170	230	38.5	36	31	2.5	2.5	2	2	214	415	1400	1900	3.864
2007134	170	260	57.5	54	46	3	3	2.5	2.5	391	752	1400	1900	10.1
7634	170	360	128	120	100	3.7	3.7	3.7	3.7	1296	2116	950	1400	63.5
2007136	180	280	64.5	60	52	3	3	2.5	2.5	473	860	950	1400	13
7736	180	290	65	63.5	48	2.3	2.3	2.3	2.3	489	920	950	1400	15.6
30236	180	320	57	52	43	5	5	4	4	537	823	1000	1500	17.8
32236	180	320	91	86	71	5	5	4	4	931	1675	950	1400	32.3
32938X2A	190	260	45.5	42	36	2.5	2.5	2	2	675	1040	1100	1600	6.52
7138	190	290	51	46	40	3	3	2.5	2.5	349	610	950	1400	10.5
2007138	190	290	64.5	60	52	3	3	2.5	2.5	473	882	1000	1500	15.28
30238	190	340	60	55	46	5	5	4	4	675	1040	950	1400	20.6
32238	190	340	97	92	75	5	5	4	4	1000	1080	950	1300	36.1
2007940K	200	280	51.5	48	41	3	3	2.5	2.5	348	742	1000	1500	8.7
2007940	200	280	51.5	48	41	3	3	2.5	2.5	348	742	1000	1500	8.9
2007140	200	310	70.5	66	56	3	3	2.5	2.5	525	1040	950	1400	18.2
30240	200	360	64	58	48	5	5	4	4	710	1098	900	1300	25.4
32240	200	360	104	98	82	5	5	4	4	1235	2144	900	1300	42.6
2007944	220	300	51.5	48	41	3	3	2.5	2.5	354	835	900	1400	10.1
2007144	220	340	76.5	72	62	4	4	3	3	709	1336	950	1400	23.3
30244	220	400	72	65	54	5	5	4	4	887	1373	900	1300	36.8
7244	220	400	73	65	54	3.7	3.7	3.7	3.7	780	1181	900	1300	37.6
32244	220	400	114	108	90	5	5	4	4	1445	2641	900	1300	62.7
2007948	240	320	51.5	48	41	3	3	2.5	2.5	354	767	900	1300	10.8
2007148	240	360	76.5	72	62	4	4	3	3	698	1414	850	1200	23.8
2007148S	240	360	76	76	57	4	4	3	3	768	1414	850	1200	24.9
2007148SY	240	360	76	76	57	4	4	3	3	768	1414	850	1200	24.7
7951	254	422.27	86.1	79.8	66.7	4.7	4.7	2.5	2.5	1011	1762	850	1200	45.4
2007952	260	360	64.5	60	52	3	3	2.5	2.5	528	1187	800	1100	19.2
2007152	260	400	87.7	82	71	5	5	4	4	912	1835	800	1100	37.8
7352	260	540	114	102	85	6	6	6	6	1760	2727	670	900	113
2007956	280	380	64.5	60	52	3	3	2.5	2.5	543	1257	800	1100	21.3
2007156	280	420	87.7	82	71	5	5	4	4	987	1975	750	100	39.6
32960	300	420	74.5	72	62	4	4	3	3	646	1807	700	950	30.2
2007160	300	460	100.7	95	77	5	5	4	4	3850	10200	700	950	57
32064	320	480	100	100	74	5	5	4	4	1400	2940	630	850	62.7
2007972E	360	480	76	76	57	4	4	4	4	879	2222	500	630	38.5
7880	400	500	60	57	47	4	4	3	3	421	954	400	500	25.1
31084X2	420	620	95	90	67	5	5	5	5	1050	2130	380	480	88.3
78/760	760	890	78	75	59	4.7	4.7	4.7	4.7	1241	3519	130	170	78.3
71/900	900	12810	190	170	135	7.5	7.5	7.5	7.5	5860	14607	95	130	71.8
