SHF10A直线滑动轴承支撑、SHF12A直线滑动轴承支撑、SHF13A直线滑动轴承支撑、SHF16A直线滑动轴承支撑、SHF20A直线滑动轴承支撑、SHF25A直线滑动轴承支撑、SHF30A直线滑动轴承支撑、SHF35A直线滑动轴承支撑、SHF40A直线滑动轴承支撑、SHF50A直线滑动轴承支撑、SHF60A直线滑动轴承支撑
发布时间：2026-08-13
|

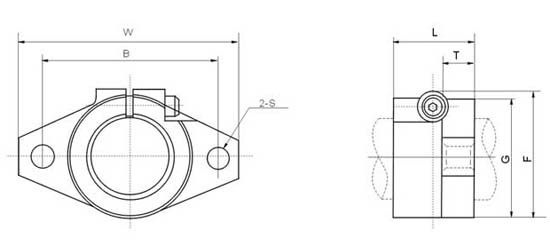

型号MODEL NO. |
轴径SHAFT DIAMETER |
主要尺寸 MAIN DIMENSIONS |
锁紧螺栓DESIGNATION OF CLAMPING BOLT |
安装螺栓DESIGNATION OF MOUNTING BOLT |
重量WEIGHT(kg) | ||||||
|
W |
L |
T |
F |
G |
B |
S | |||||
|
SHF 10A |
10 |
43 |
10 |
5 |
24 |
20 |
32 |
5.5 |
M4 |
M5 |
0.013 |
|
SHF 12A |
12 |
47 |
13 |
7 |
28 |
25 |
36 |
5.5 |
M4 |
M5 |
0.020 |
|
SHF 13A |
13 |
47 |
13 |
7 |
28 |
25 |
36 |
5.5 |
M4 |
M5 |
0.020 |
|
SHF 16A |
16 |
50 |
16 |
8 |
31 |
28 |
40 |
5.5 |
M4 |
M5 |
0.027 |
|
SHF 20A |
20 |
60 |
20 |
8 |
37 |
34 |
48 |
7 |
M5 |
M6 |
0.040 |
|
SHF 25A |
25 |
70 |
25 |
10 |
42 |
40 |
56 |
7 |
M5 |
M6 |
0.060 |
|
SHF 30A |
30 |
80 |
30 |
12 |
50 |
46 |
64 |
9 |
M6 |
M8 |
0.110 |
|
SHF 35A |
35 |
92 |
35 |
14 |
58 |
50 |
72 |
12 |
M8 |
M10 |
0.380 |
|
SHF 40A |
40 |
102 |
40 |
16 |
67 |
56 |
80 |
12 |
M10 |
M10 |
0.510 |
|
SHF 50A |
50 |
122 |
50 |
19 |
83 |
70 |
96 |
14 |
M12 |
M12 |
0.890 |
|
SHF 60A |
60 |
140 |
60 |
60 |
95 |
82 |
112 |
14 |
M12 |
M12 |
1.500 |
