搜轴承 -- 黑板报 -- SHA-3支撑座、SHA-4支撑座、SHA-5支撑座、SHA-6支撑座、...
SHA-3支撑座、SHA-4支撑座、SHA-5支撑座、SHA-6支撑座、SHA-8支撑座、SHA-10支撑座、SHA-12支撑座、SHA-13支撑座、SHA-16支撑座、SHA-20支撑座、SHA-25支撑座、SHA-30支撑座、SHA-35支撑座、SHA-40支撑座、SHA-50支撑座
发布时间：2026-02-26
|

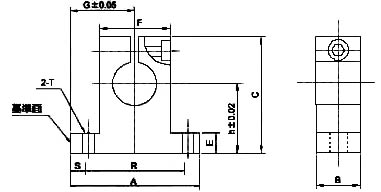

型号 |
轴心尺寸 |
主要尺寸 |
夹紧螺丝规格
|
安装螺丝规格
|
重量 | |||||||||
|
h |
G |
A |
B |
C |
E |
F |
R |
S |
T | |||||
|
SHA-3 |
3 |
20 |
21 |
42 |
14 |
32.8 |
6 |
18 |
32 |
5 |
5.5 |
M4 |
M5 |
M24 |
|
SHA-4 |
4 |
20 |
21 |
42 |
14 |
32.8 |
6 |
18 |
32 |
5 |
5.5 |
M4 |
M5 |
M24 |
|
SHA-5 |
5 |
20 |
21 |
42 |
14 |
32.8 |
6 |
18 |
32 |
5 |
5.5 |
M4 |
M5 |
M24 |
|
SHA-6 |
6 |
20 |
21 |
42 |
14 |
32.8 |
6 |
18 |
32 |
5 |
5.5 |
M4 |
M5 |
M24 |
|
SHA-8 |
8 |
20 |
21 |
42 |
14 |
32.8 |
6 |
18 |
32 |
5 |
5.5 |
M4 |
M5 |
M24 |
|
SHA-10 |
10 |
20 |
21 |
42 |
14 |
32.8 |
6 |
18 |
32 |
5 |
5.5 |
M4 |
M5 |
M24 |
|
SHA-12 |
12 |
23 |
21 |
42 |
14 |
37.5 |
6 |
20 |
32 |
5 |
5.5 |
M4 |
M5 |
M30 |
|
SHA-13 |
13 |
23 |
21 |
42 |
14 |
37.5 |
6 |
20 |
32 |
5 |
5.5 |
M4 |
M5 |
M30 |
|
SHA-16 |
16 |
27 |
24 |
48 |
16 |
44 |
8 |
25 |
38 |
5 |
5.5 |
M4 |
M5 |
M40 |
|
SHA-20 |
20 |
31 |
30 |
60 |
20 |
51 |
10 |
30 |
45 |
7.5 |
6.6 |
M5 |
M6 |
M70 |
|
SHA-25 |
25 |
35 |
35 |
70 |
24 |
60 |
12 |
38 |
56 |
7 |
6.6 |
M6 |
M6 |
M130 |
|
SHA-30 |
30 |
42 |
42 |
84 |
28 |
70 |
12 |
44 |
64 |
10 |
9 |
M6 |
M8 |
M180 |
|
SHA-35 |
35 |
50 |
49 |
98 |
32 |
82 |
15 |
50 |
74 |
12 |
11 |
M8 |
M10 |
M270 |
|
SHA-40 |
40 |
60 |
57 |
114 |
36 |
96 |
15 |
60 |
90 |
12 |
11 |
M8 |
M10 |
M420 |
|
SHA-50 |
50 |
70 |
63 |
126 |
40 |
120 |
18 |
74 |
100 |
13 |
14 |
M12 |
M12 |
M750 |
