FSW8-2.5B1滚珠丝杠、FSW10-2.5B1滚珠丝杠、FSW10-4B1滚珠丝杠、FSW12-4B1滚珠丝杠、FSW16-5B1滚珠丝杠、FSW20-5C1滚珠丝杠、FSW25-5B2滚珠丝杠、FSW25-10B1滚珠丝杠、FSW32-5B2滚珠丝杠、FSW32-10B2滚珠丝杠、FSW40-10B2滚珠丝杠、FSW50-10C2滚珠丝杠、FSW63-10C2滚珠丝杠
发布时间：2025-05-05

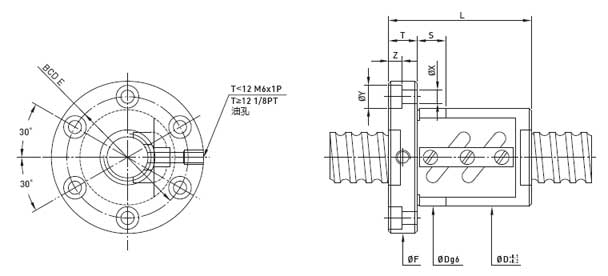

| 型号 | 规格 | 珠径 | 珠卷数 | 基本额定 | 螺帽 | 法兰 | 法兰孔 | 接触 | |||||||
| 动载 | 静载 | L | D | F | BCD-E | T | X | Y | X | 面长 | |||||
| 外径 | 导程 | C(kgf) | Co(kgf) | S | |||||||||||
| 8-2.5B1 | 8 | 2.5 | 2 | 2.5×1 | 218 | 317 | 34 | 26 | 47 | 35 | 8 | 5.5 | 9.5 | 5.5 | 8 |
| 10-2.5B1 | 10 | 2.5 | 2 | 2.5×1 | 252 | 405 | 34 | 28 | 52 | 38 | 8 | 5.5 | 9.5 | 5.5 | 8 |
| 10-4B1 | 10 | 4 | 2.381 | 2.5×1 | 304 | 466 | 41 | 30 | 53 | 41 | 10 | 5.5 | 9.5 | 5.5 | 10 |
| 12-4B1 | 12 | 4 | 2.381 | 2.5×1 | 344 | 574 | 41 | 30 | 50 | 40 | 10 | 5.5 | 9.5 | 5.5 | 12 |
| 16-5B1 | 16 | 5 | 3.175 | 2.5×1 | 679 | 1226 | 43 | 40 | 64 | 41 | 10 | 5.5 | 9.5 | 5.5 | 12 |
| 20-5C1 | 20 | 5 | 3.175 | 3.5×1 | 1001 | 2149 | 50 | 44 | 68 | 55 | 12 | 5.5 | 9.5 | 5.5 | 12 |
| 25-5B2 | 25 | 5 | 3.175 | 2.5×2 | 1534 | 3975 | 60 | 50 | 74 | 62 | 12 | 5.5 | 9.5 | 5.5 | 12 |
| 25-10B1 | 25 | 10 | 4.763 | 2.5×1 | 1459 | 2983 | 65 | 60 | 86 | 73 | 16 | 6.6 | 11 | 6.5 | 12 |
| 32-5B2 | 32 | 5 | 3.175 | 2.5×2 | 1702 | 5098 | 60 | 58 | 84 | 71 | 12 | 6.6 | 11 | 6.5 | 12 |
| 32-10B2 | 32 | 10 | 6.35 | 2.5×2 | 4379 | 10345 | 98 | 74 | 108 | 90 | 16 | 9 | 14 | 8.5 | 15 |
| 40-10B2 | 40 | 10 | 6.35 | 2.5×2 | 4812 | 12732 | 102 | 84 | 125 | 104 | 18 | 11 | 17.5 | 11 | 15 |
| 50-10C2 | 50 | 10 | 6.35 | 3.5×2 | 7146 | 22477 | 126 | 94 | 135 | 114 | 18 | 11 | 17.5 | 11 | 20 |
| 63-10C2 | 63 | 10 | 6.35 | 3.5×2 | 7869 | 28290 | 128 | 110 | 152 | 130 | 20 | 11 | 17.5 | 11 | 20 |
