搜轴承 -- 黑板报 -- CSA004-12轴承、CSA004轴承、CSA005-14轴承、CSA005-15轴承...
CSA004-12轴承、CSA004轴承、CSA005-14轴承、CSA005-15轴承、CSA005轴承、CSA005-16轴承、CSA006-18轴承、CSA006轴承、CSA006-19轴承、CSA006-20轴承
发布时间：2025-06-20
 |

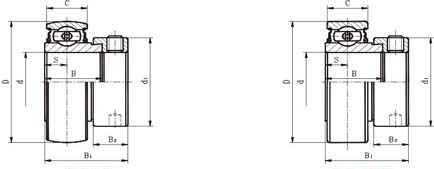

| 轴承型号 | Shaft Dia. | Dimensions(mm)/(in.) | Basic load ratings(N) | 轴承型号 | ||||||||
| d | D | C | B | B1 | S | B3 | d1 | Dynamic Cr | Satic Cor | |||
| (in.) | (mm) | |||||||||||
| SA004-12 | 3/4 | 42 | 12 | 16.7 | 24.6 | 6 | 11.1 | 29.8 | 9380 | 5020 | U004-12 | |
| SA004 | 20 | 42 | 12 | 16.7 | 24.6 | 6 | 11.1 | 29.8 | 9380 | 5020 | U004 | |
| SA005-14 | 7/8 | 47 | 12 | 17.5 | 25.4 | 6 | 11.9 | 36.1 | 10000 | 5850 | U005-14 | |
| SA005-15 | 15/16 | 47 | 12 | 17.5 | 25.4 | 6 | 11.9 | 36.1 | 10000 | 5850 | U005-15 | |
| SA005 | 25 | 47 | 12 | 17.5 | 25.4 | 6 | 11.9 | 36.1 | 10000 | 5850 | U005 | |
| SA005-16 | 1 | 47 | 12 | 17.5 | 25.4 | 6 | 11.9 | 36.1 | 10000 | 5850 | U005-16 | |
| SA006-18 | 1-1/8 | 55 | 13 | 18.5 | 26.5 | 6.5 | 11.9 | 42.5 | 13200 | 8300 | U006-18 | |
| SA006 | 30 | 55 | 13 | 18.5 | 26.5 | 6.5 | 11.9 | 42.5 | 13200 | 8300 | U006 | |
| SA006-19 | 1-3/16 | 55 | 13 | 18.5 | 26.5 | 6.5 | 11.9 | 42.5 | 13200 | 8300 | U006-19 | |
| SA006-20 | 1-1/4 | 55 | 13 | 18.5 | 26.5 | 6.5 | 11.9 | 42.5 | 13200 | 8300 | U006-20 | |
| 轴承型号 | Shaft Dia. | Dimensions(mm)/(in.) | Basic load ratings(N) | 轴承型号 | ||||||||
| d | D | C | B | B1 | S | B3 | d1 | Dynamic Cr | Satic Cor | |||
| (in.) | (mm) | |||||||||||
| CSA004-12 | 3/4 | 42 | 12 | 16.7 | 24.6 | 6 | 11.1 | 29.8 | 9380 | 5020 | U004-12 | |
| CSA004 | 20 | 42 | 12 | 16.7 | 24.6 | 6 | 11.1 | 29.8 | 9380 | 5020 | U004 | |
| CSA005-14 | 7/8 | 47 | 12 | 17.5 | 25.4 | 6 | 11.9 | 36.1 | 10000 | 5850 | U005-14 | |
| CSA005-15 | 15/16 | 47 | 12 | 17.5 | 25.4 | 6 | 11.9 | 36.1 | 10000 | 5850 | U005-15 | |
| CSA005 | 25 | 47 | 12 | 17.5 | 25.4 | 6 | 11.9 | 36.1 | 10000 | 5850 | U005 | |
| CSA005-16 | 1 | 47 | 12 | 17.5 | 25.4 | 6 | 11.9 | 36.1 | 10000 | 5850 | U005-16 | |
| CSA006-18 | 1-1/8 | 55 | 13 | 18.5 | 26.5 | 6.5 | 11.9 | 42.5 | 13200 | 8300 | U006-18 | |
| CSA006 | 30 | 55 | 13 | 18.5 | 26.5 | 6.5 | 11.9 | 42.5 | 13200 | 8300 | U006 | |
| CSA006-19 | 1-3/16 | 55 | 13 | 18.5 | 26.5 | 6.5 | 11.9 | 42.5 | 13200 | 8300 | U006-19 | |
| CSA006-20 | 1-1/4 | 55 | 13 | 18.5 | 26.5 | 6.5 | 11.9 | 42.5 | 13200 | 8300 | U006-20 | |
