UC207-19T轴承、UC207-20T轴承、UC207-21T轴承、UC207-22T轴承、UC207T轴承、UC207-23T轴承、UC208-23T轴承、UC208-24T轴承、UC208-25T轴承、UC208T轴承、UC208-26T轴

发布时间：2025-05-05

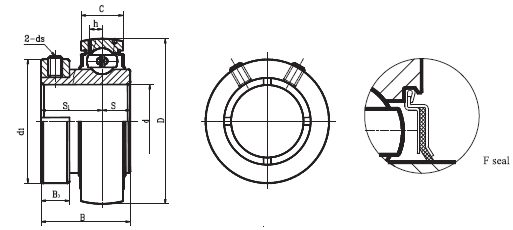

Bearing No.	Shaft Dia.		Dimensions(mm)(in.)									Basic load rating(N)		Mass(kg)
	d		D	B	C	S	S1	B3	h	d1(mm)	ds	Dynamic Cr	Static Cor
	(in.)	(mm)
UC204-12T	3/4		47	31	16	12.7	18.3	8.0	4.4	34.9	10#-32UNF	12800	6650	0.20
UC204T		20	47	31	16	12.7	18.3	8.0	4.4	34.9	M5X0.8	12800	6650	0.20
UC205-13T	13/16		52	34	17	14.3	19.7	8.8	4.3	34.9	1/4-28UNF	14000	7880	0.24
UC205-14T	7/8		52	34	17	14.3	19.7	8.8	4.3	39.7	1/4-28UNF	14000	7880	0.24
UC205-15T	15/16		52	34	17	14.3	19.7	8.8	4.3	39.7	1/4-28UNF	14000	7880	0.24
UC205T		25	52	34	17	14.3	19.7	8.8	4.3	39.7	M6X1	14000	7880	0.24
UC205-16T	1		52	34	17	14.3	19.7	8.8	4.3	39.7	1/4-28UNF	14000	7880	0.24
UC206-16T	1		62	38.1	19	15.9	22.2	8.8	5	46.0	1/4-28UNF	19500	11200	0.35
UC206-17T	1-1/16		62	38.1	19	15.9	22.2	8.8	5	46.0	1/4-28UNF	19500	11200	0.35
UC206-18T	1-1/8		62	38.1	19	15.9	22.2	8.8	5	46.0	1/4-28UNF	19500	11200	0.35
UC206T		30	62	38.1	19	15.9	22.2	8.8	5	50.8	M6X1	19500	11200	0.35
UC206-19T	1-3/16		62	38.1	19	15.9	22.2	8.8	5	50.8	1/4-28UNF	19500	11200	0.35
UC206-20T	1-1/4		62	38.1	19	15.9	22.2	8.8	5	50.8	1/4-28UNF	19500	11200	0.35
UC207-19T	1-3/16		72	42.9	20	17.5	25.4	11.2	5.8	50.8	5/16-24UNF	25700	15200	0.55
UC207-20T	1-1/4		72	42.9	20	17.5	25.4	11.2	5.8	50.8	5/16-24UNF	25700	15200	0.55
UC207-21T	1-5/16		72	42.9	20	17.5	25.4	11.2	5.8	57.2	5/16-24UNF	25700	15200	0.55
UC207-22T	1-3/8		72	42.9	20	17.5	25.4	11.2	5.8	57.2	5/16-24UNF	25700	15200	0.55
UC207T		35	72	42.9	20	17.5	25.4	11.2	5.8	57.2	M8X1	25700	15200	0.55
UC207-23T	1-7/16		72	42.9	20	17.5	25.4	11.2	5.8	57.2	5/16-24UNF	25700	15200	0.55
UC208-23T	1-7/16		80	49.2	21	19	30.2	11.2	6.3	63.5	5/16-24UNF	29600	18200	0.72
UC208-24T	1-1/2		80	49.2	21	19	30.2	11.2	6.3	63.5	5/16-24UNF	29600	18200	0.72
UC208-25T	1-9/16		80	49.2	21	19	30.2	11.2	6.3	63.5	5/16-24UNF	29600	18200	0.72
UC208T		40	80	49.2	21	19	30.2	11.2	6.3	63.5	M8X1	29600	18200	0.72
UC208-26T	1-5/8		80	49.2	21	19	30.2	11.2	6.3	63.5	5/16-24UNF	29600	18200	0.72
UC209-24T	1-1/2		85	49.2	22	19	30.2	11.2	6.8	63.5	5/16-24UNF	31850	20800	0.82
UC209-26T	1-5/8		85	49.2	22	19	30.2	11.2	6.8	63.5	5/16-24UNF	31850	20800	0.82
UC209-27T	1-11/16		85	49.2	22	19	30.2	11.2	6.8	68.3	5/16-24UNF	31850	20800	0.82
UC209-28T	1-3/4		85	49.2	22	19	30.2	11.2	6.8	68.3	5/16-24UNF	31850	20800	0.82
UC209T		45	85	49.2	22	19	30.2	11.2	6.8	68.3	M8X1	31850	20800	0.82
UC209-29T	1-13/16		85	49.2	22	19	30.2	11.2	6.8	68.3	5/16-24UNF	31850	20800	0.82
UC210-27T	1-11/16		90	51.6	23	19	32.6	14.2	6.5	69.9	3/8-24UNF	35100	23200	0.95
UC210-28T	1-3/4		90	51.6	23	19	32.6	14.2	6.5	69.9	3/8-24UNF	35100	23200	0.95
UC210-29T	1-13/16		90	51.6	23	19	32.6	14.2	6.5	69.9	3/8-24UNF	35100	23200	0.95
UC210-30T	1-7/8		90	51.6	23	19	32.6	14.2	6.5	73.0	3/8-24UNF	35100	23200	0.95
UC210-31T	1-15/16		90	51.6	23	19	32.6	14.2	6.5	73.0	3/8-24UNF	35100	23200	0.95
UC210T		50	90	51.6	23	19	32.6	14.2	6.5	73.0	M10X1.25	35100	23200	0.95
UC210-32T	2		90	51.6	23	19	32.6	14.2	6.5	73.0	3/8-24UNF	35100	23200	0.95
UC211-31T	1-15/16		100	55.6	25	22.2	33.4	14.2	7.2	73.0	3/8-24UNF	43550	29200	1.35
UC211-32T	2		100	55.6	25	22.2	33.4	14.2	7.2	73.0	3/8-24UNF	43550	29200	1.35
UC211-33T	2-1/16		100	55.6	25	22.2	33.4	14.2	7.2	79.4	3/8-24UNF	43550	29200	1.35
UC211-34T	2-1/8		100	55.6	25	22.2	33.4	14.2	7.2	79.4	3/8-24UNF	43550	29200	1.35
UC211T		55	100	55.6	25	22.2	33.4	14.2	7.2	79.4	M10X1.25	43550	29200	1.35
UC211-35T	2-3/16		100	55.6	25	22.2	33.4	14.2	7.2	79.4	3/8-24UNF	43550	29200	1.35
UC211-36T	2-1/4		100	55.6	25	22.2	33.4	14.2	7.2	79.4	3/8-24UNF	43550	29200	1.35
UC212-35T	2-3/16		110	65.1	27	25.4	39.7	14.2	8.2	79.4	3/8-24UNF	47800	32800	1.72
UC212-36T	2-1/4		110	65.1	27	25.4	39.7	14.2	8.2	79.4	3/8-24UNF	47800	32800	1.72
UC212-37T	2-5/16		110	65.1	27	25.4	39.7	14.2	8.2	85.7	3/8-24UNF	47800	32800	1.72
UC212T		60	110	65.1	27	25.4	39.7	14.2	8.2	85.7	M10X1.25	47800	32800	1.72
UC212-38T	2-3/8		110	65.1	27	25.4	39.7	14.2	8.2	85.7	3/8-24UNF	47800	32800	1.72
UC212-39T	2-7/16		110	65.1	27	25.4	39.7	14.2	8.2	85.7	3/8-24UNF	47800	32800	1.72

Bearing No.	Shaft Dia.		Dimensions(mm)(in.)									Basic load rating(N)		Mass(kg)
	d		D	B	C	S	S1	B3	h	d1(mm)	ds	Dynamic Cr	Static Cor
	(in.)	(mm)
UC214-40T	2-1/2		125	74.6	30	30.2	44.4	14.2	9	100	3/8-24UNF	60800	45000	2.20
UC214-42T	2-5/8		125	74.6	30	30.2	44.4	14.2	9	100	3/8-24UNF	60800	45000	2.20
UC214-43T	2-11/16		125	74.6	30	30.2	44.4	14.2	9	100	3/8-24UNF	60800	45000	2.20
UC214T		70	125	74.6	30	30.2	44.4	14.2	9	100	M10X1.25	60800	45000	2.20
UC215-44T	2-3/4		130	77.8	30	33.3	44.5	14.2	9	100.0	3/8-24UNF	66000	49500	2.50
UC215-45T	2-13/16		130	77.8	30	33.3	44.5	14.2	9	106.4	3/8-24UNF	66000	49500	2.50
UC215-46T	2-7/8		130	77.8	30	33.3	44.5	14.2	9	106.4	3/8-24UNF	66000	49500	2.50
UC215-47T	2-15/16		130	77.8	30	33.3	44.5	14.2	9	106.4	3/8-24UNF	66000	49500	2.50
UC215T		75	130	77.8	30	33.3	44.5	14.2	9	106.4	M10X1.25	66000	49500	2.50
