FF1202-3滚珠丝杠、FF1202.5-3滚珠丝杠、FF1203-3滚珠丝杠、FF1602-4滚珠丝杠、FF1602.5-4滚珠丝杠、FF1603-4滚珠丝杠、FF2002-4滚珠丝杠、FF2002.5-4滚珠丝杠、FF2003-4滚珠丝杠

发布时间：2025-05-05

规格代号

公称
直径
d_o

公称
导程
P_ho

丝杠
外径
d₁

钢球
直径
Dw

丝杠
底径
d₂

循环
圈数

基本额定负荷

刚度
Kc
N/μ_m

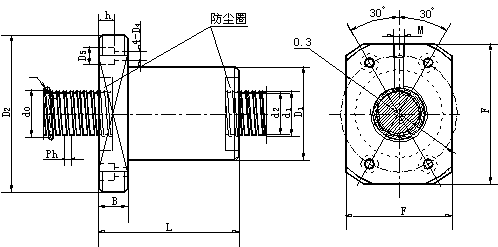

螺母安装连接尺寸

动载荷
Ca(KN) 静载荷
Coa(KN)

D₁

D₂

L

D₃

B

h

D₄

D₅

F

H

M

FF0801.5-3

8

1.5

8

1.2

7.1

3

1.4

2.3

16

32

25

23

6

3.5

3.4

6.5

20

29

2.5

FF0802-3

8

2

8

1.588

6.7

3

1.8

2.7

16

32

27

23

6

3.5

3.4

6.5

20

29

2.5

FF0802.5-3

8

2.5

8

2

6.5

3

2.3

3.1

16

32

30

23

6

3.5

3.4

6.5

20

29

2.5

FF0803-3

8

3

8

2

6.5

3

2.3

3.1

16

32

27

23

6

3.5

3.4

6.5

20

29

2.5

FF1001.5-3

10

1.5

9.8

1.2

8.9

3

1.6

3.1

18

38

27

27

8

4.5

4.5

8

24

34

2.5

FF1002-3

10

2

9.8

1.588

8.5

3

2.2

3.8

18

38

29

27

8

4.5

4.5

8

24

34

2.5

FF1002.5-3

10

2.5

9.5

2

7.9

3

2.8

4.4

18

38

32

27

8

4.5

4.5

8

24

34

2.5

FF1003-3

10

3

9.5

2

7.9

3

2.8

4.3

18

38

27

27

8

4.5

4.5

8

24

34

2.5

FF1201.5-3

12

1.5

11.8

1.2

10.9

3

1.7

3.9

20

40

27

29

8

4.5

4.5

8

25

36

2.5

FF1202-3

12

2

11.9

1.588

10.7

3

2.5

4.9

20

40

29

29

8

4.5

4.5

8

25

36

2.5

FF1202.5-3

12

2.5

11.7

2

10.2

3

3.2

5.6

20

40

33

29

8

4.5

4.5

8

25

36

2.5

FF1203-3

12

3

11.3

2.381

9.5

3

3.8

6.2

20

43

36

32

8

4.5

4.5

8

27

38

2.5

FF1602-4

16

2

15.9

1.588

14.7

4

2.9

7.0

25

47

35

35

10

5.5

5.5

9.5

30

43

6

FF1602.5-4

16

2.5

15.7

2

14.2

4

3.8

8.1

25

47

33

35

10

5.5

5.5

9.5

30

43

6

FF1603-4

16

3

15.3

2.381

13.5

4

4.7

9.2

25

47

38

35

10

5.5

5.5

9.5

30

43

6

FF2002-4

20

2

19.9

1.588

18.7

4

3.2

9.2

30

52

35

40

10

5.5

5.5

9.5

32

47

6

FF2002.5-4

20

2.5

19.7

2

18.2

4

4.3

10.7

30

52

33

40

10

5.5

5.5

9.5

32

47

6

FF2003-4

20

3

19.3

2.381

17.5

4

5.3

12.2

30

52

38

40

10

5.5

5.5

9.5

32

47

6

上一篇：FF1204-3滚珠丝杠、FF1604-3滚珠丝杠、FF1605-3滚珠丝杠、FF2004-3滚珠丝杠、FF2005-3滚珠丝杠、FF2504-3滚珠丝杠、FF2505-3滚珠丝杠、FF2506-3滚珠丝杠、FF3204-3滚珠丝杠、FF3204-5滚珠丝杠、FF3205-3滚珠丝杠、FF3205-5滚珠丝杠、FF3206-3滚珠丝杠、FF3206-5滚珠丝杠、FF3210-3滚珠丝杠、FF3210-5滚珠丝杠 —— 下一篇：FF0801.5-3滚珠丝杠、FF0802-3滚珠丝杠、FF0802.5-3滚珠丝杠、FF0803-3滚珠丝杠、FF1001.5-3滚珠丝杠、FF1002-3滚珠丝杠、FF1002.5-3滚珠丝杠、FF1003-3滚珠丝杠、FF1201.5-3滚珠丝杠

返回搜轴承首页

FF0801.5-3	8	1.5	8	1.2	7.1	3	1.4	2.3	16	32	25	23	6	3.5	3.4	6.5	20	29	2.5
FF0802-3	8	2	8	1.588	6.7	3	1.8	2.7	16	32	27	23	6	3.5	3.4	6.5	20	29	2.5
FF0802.5-3	8	2.5	8	2	6.5	3	2.3	3.1	16	32	30	23	6	3.5	3.4	6.5	20	29	2.5
FF0803-3	8	3	8	2	6.5	3	2.3	3.1	16	32	27	23	6	3.5	3.4	6.5	20	29	2.5
FF1001.5-3	10	1.5	9.8	1.2	8.9	3	1.6	3.1	18	38	27	27	8	4.5	4.5	8	24	34	2.5
FF1002-3	10	2	9.8	1.588	8.5	3	2.2	3.8	18	38	29	27	8	4.5	4.5	8	24	34	2.5
FF1002.5-3	10	2.5	9.5	2	7.9	3	2.8	4.4	18	38	32	27	8	4.5	4.5	8	24	34	2.5
FF1003-3	10	3	9.5	2	7.9	3	2.8	4.3	18	38	27	27	8	4.5	4.5	8	24	34	2.5
FF1201.5-3	12	1.5	11.8	1.2	10.9	3	1.7	3.9	20	40	27	29	8	4.5	4.5	8	25	36	2.5
FF1202-3	12	2	11.9	1.588	10.7	3	2.5	4.9	20	40	29	29	8	4.5	4.5	8	25	36	2.5
FF1202.5-3	12	2.5	11.7	2	10.2	3	3.2	5.6	20	40	33	29	8	4.5	4.5	8	25	36	2.5
FF1203-3	12	3	11.3	2.381	9.5	3	3.8	6.2	20	43	36	32	8	4.5	4.5	8	27	38	2.5
FF1602-4	16	2	15.9	1.588	14.7	4	2.9	7.0	25	47	35	35	10	5.5	5.5	9.5	30	43	6
FF1602.5-4	16	2.5	15.7	2	14.2	4	3.8	8.1	25	47	33	35	10	5.5	5.5	9.5	30	43	6
FF1603-4	16	3	15.3	2.381	13.5	4	4.7	9.2	25	47	38	35	10	5.5	5.5	9.5	30	43	6
FF2002-4	20	2	19.9	1.588	18.7	4	3.2	9.2	30	52	35	40	10	5.5	5.5	9.5	32	47	6
FF2002.5-4	20	2.5	19.7	2	18.2	4	4.3	10.7	30	52	33	40	10	5.5	5.5	9.5	32	47	6
FF2003-4	20	3	19.3	2.381	17.5	4	5.3	12.2	30	52	38	40	10	5.5	5.5	9.5	32	47	6
