FFZD3210-5滚珠丝杠、FFZD4005-3滚珠丝杠、FFZD4005-5滚珠丝杠、FFZD4006-3滚珠丝杠、FFZD4006-5滚珠丝杠、FFZD4008-3滚珠丝杠、FFZD4008-5滚珠丝杠、FFZD4010-3滚珠丝杠、FFZD4010-5滚珠丝杠、FFZD4012-3滚珠丝杠、FFZD4012-5滚珠丝杠、FFZD5005-3滚珠丝杠、FFZD5005-5滚珠丝杠、FFZD5006-3滚珠丝杠、FFZD5006-5滚珠丝

发布时间：2025-05-04

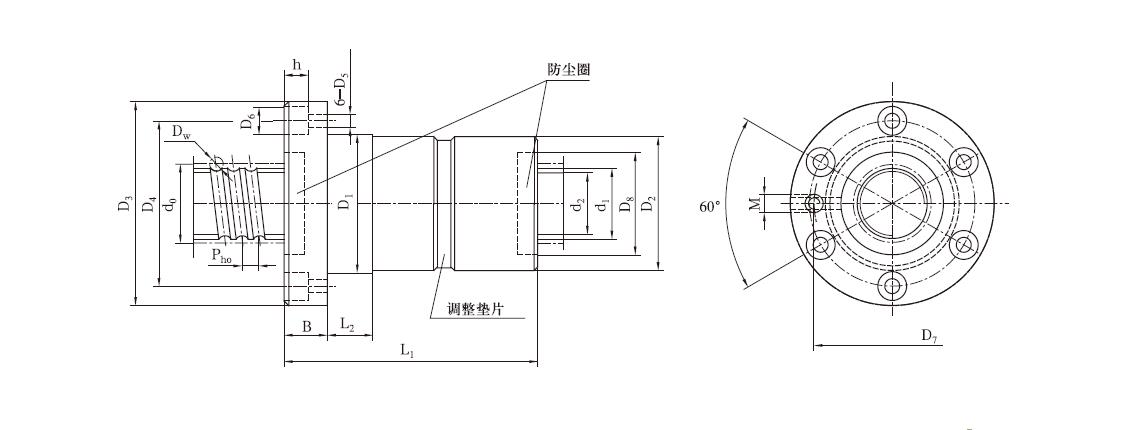

规格 公称 公称 丝杠  钢球 丝杠 循环 基本 刚度 螺母安装连接尺寸
直径 导程 外径 直径 底径 额定负荷 Kc
代号 d0 Ph0 d1 Dw d2 圈数 动载荷 静载荷 N D1 D2 L2 D3 B D4 D5 D6 h D7 M D8 L1
Ca(KN) Coa(KN) μm g6
FFZD1204-3 12 4 11.3 2.381 9.5 3 4 6.7 417 22 22 10 44 8 32 4.8 8.5 4.5 32 M2.5 16 63
FFZD1604-3 16 4 15.3 2.381 13.5 3 4.8 9.7 442 28 28 10 52 10 38 5.8 10 6 32 M6 20 65
FFZD1605-3 16 5 15.5 3.5 12.9 3 7.6 13.2 400 28 28 10 52 10 38 5.8 10 6 32 M6 22 83
FFZD2004-3 20 4 19.3 2.381 17.5 3 5.3 12.1 519 36 36 10 62 11 48 5.8 10 6 40 M6 25 72
FFZD2005-3 20 5 19.5 3.5 16.9 3 9.1 18.3 536 36 36 10 62 11 48 5.8 10 6 40 M6 25 83
FFZD2504-3 25 4 24.1 3 21.9 3 8.3 20.2 654 40 40 10 66 11 53 5.8 10 6  46 M6 30 74
FFZD2505-3 25 5 24.5 3.5 21.9 3 10.2 23.6 657 40 40 10 66 11 53 5.8 10 6 46 M6 30 84
FFZD2506-3 25 6 23.9 4 20.9 3 11.3 23.7 636 40 40 10 66 11 53 5.8 10 6 46 M6 30 97
FFZD3204-3 32 4 31.1 3 28.9 3 9.6 27.9 823 50 50 10 76 11 63 5.8 10 6 56 M6 38 73
FFZD3204-5 32 4 31.1 3 28.9 5 15 45.6 1340 50 50 10 76 11 63 5.8 10 6 56 M6 38 92
FFZD3205-3 32 5 31.5 3.5 28.9 3 11.7 31.4 826 50 50 10 82 13 67 7 12 7 62 M6 38 85
FFZD3205-5 32 5 31.5 3.5 28.9 5 18.1 52.4 1346 50 50 10 82 13 67 7 12 7 62 M6 38 108
FFZD3206-3 32 6 30.9 4 27.9 3 13 32.1 839 50 50 10 82 13 67 7 12 7 62 M6 38 99
FFZD3206-5 32 6 30.9 4 27.9 5 20.2 53.5 1367 50 50 10 82 13 67 7 12 7 62 M6 38 127
FFZD3210-3 32 10 32.5 7.144 27.3 3 25.7 50.2 772 53 53 15 90 15 71 9 15 9 70 M6 44 146
FFZD3210-5 32 10 32.5 7.144 27.3 5 40 83.8 1256 53 53 15 90 15 71 9 15 9 70 M6 44 191
FFZD4005-3 40 5 39.5 3.5 36.9 3 13 40.6 1025 60 60 10 94 15 75 9 15 9 75 M6 48 88
FFZD4005-5 40 5 39.5 3.5 36.9 5 20.2 67.7 1671 60 60 10 94 15 75 9 15 9 75 M6 48 111
FFZD4006-3 40 6 38.9 4 35.9 3 15.1 43.8 1017 60 60 10 94 15 75 9 15 9 74 M6 48 101
FFZD4006-5 40 6 38.9 4 35.9 5 23.5 73 1658 60 60 10 94 15 75 9 15 9 74 M6 48 128
FFZD4008-3 40 8 38.6 5 34.9 3 19.8 51 1004 63 63 15 108 18 85 11 18 11 85 M6 50 128
FFZD4008-5 40 8 38.6 5 34.9 5 30.7 84.9 1580 63 63 15 108 18 85 11 18 11 85 M6 50 163
FFZD4010-3 40 10 39.5 7.144 34.3 3 30 66.3 973 63 63 20 108 18 85 11 18 11 80 M8×1 52 148
FFZD4010-5 40 10 39.5 7.144 34.3 5 46.5 110.5 1585 63 63 20 108 18 85 11 18 11 80 M8×1 52 193
FFZD4012-3 40 12 38 7.144 32.7 4 36.5 81.3 909 63 63 20 108 18 85 11 18 11 80 M8×1 50 164
FFZD4012-5 40 12 38 7.144 32.7 5 44.2 101.6 1440 63 63 20 108 18 85 11 18 11 80 M8×1 50 227
FFZD5005-3 50 5 49 3.5 46.4 3 14.3 51.1 1213 71 71 10 110 15 90 9 15 9 84 M8×1 60 87
FFZD5005-5 50 5 49 3.5 46.4 5 22.2 85.1 1981 71 71 10 110 15 90 9 15 9 84 M8×1 60 111
FFZD5006-3 50 6 48.9 4 45.9 3 17 57.2 1224 71 71 15 110 15 90 9 15 9 84 M8×1 60 101
FFZD5006-5 50 6 48.9 4 45.9 5 26.4 95.4 1997 71 71 15 110 15 90 9 15 9 84 M8×1 60 130
