FFB3210-2滚珠丝杠、FFB4005-2滚珠丝杠、FFB4006-2滚珠丝杠、FFB4008-2滚珠丝杠、FFB4010-2滚珠丝杠、FFB5005-2滚珠丝杠、FFB5006-2滚珠丝杠、FFB5008-2滚珠丝杠、FFB5010-2滚珠丝杠

发布时间：2025-06-20

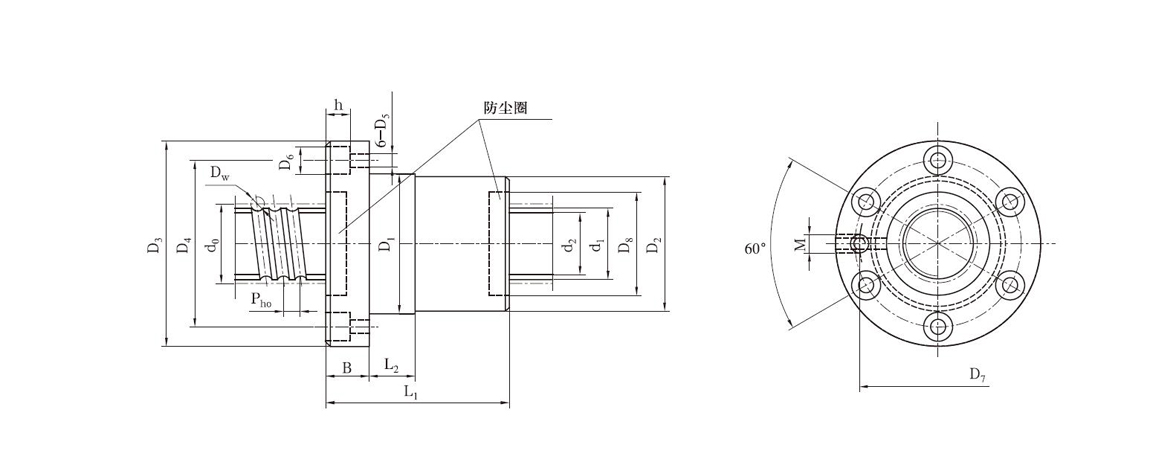

BEARINGPOWER d0 Ph0 d1 Dw Xd2 n CaKN C0aKN kc D1(g6) D2 L2 D3 B D4 D5 D6 h D7 M D8 L1

FFB2004LH-2 20 4 19.3 2.381 17.5 2 5.2 10.2 356 36 36 10 62 11 48 5.8 10 6 40 M6 25 49

FFB2004-2 20 4 19.1 3 16.9 2 5.2 10.2 356 36 36 10 62 11 48 5.8 10 6 40 M6 25 49

FFB2005-2 20 5 19.5 3.5 16.9 2 6.4 12.2 364 36 36 10 62 11 48 5.8 10 6 42 M6 25 55

FFB2504-2 25 4 24.1 3 21.9 2 5.9 13.5 445 40 40 10 66 11 53 5.8 10 6 46 M6 30 49

FFB2505-2 25 5 24.5 3.5 21.9 2 7.3 15.7 446 40 40 10 66 11 53 5.8 10 6 46 M6 30 55

FFB2506-2 25 6 23.9 3.969 20.9 2 7.9 15.8 432 40 40 10 66 11 53 5.8 10 6 46 M6 30 65

FFB3204-2 32 4 31.1 3 28.9 2 6.8 18.6 447 50 50 10 76 11 63 5.8 10 6 56 M6 38 47

FFB3205-2 32 5 31.5 3.5 28.9 2 8.2 21 560 50 50 10 82 13 67 7 12 7 62 M6 38 57

FFB3206-2 32 6 30.9 3.969 27.9 2 9.2 21.4 569 50 50 10 82 13 67 7 12 7 62 M6 38 65

FFB3210-2 32 10 32.5 7.144 27.3 2 18.1 33.5 524 53 53 15 90 15 71 9 15 9 70 M6 44 96

FFB4005-2 40 5 39.5 3.5 36.9 2 9.2 27 695 60 60 10 94 15 75 9 15 9 75 M6 48 58

FFB4006-2 40 6 38.9 3.969 35.9 2 10.6 29.2 690 60 60 10 94 15 75 9 15 9 75 M6 48 68

FFB4008-2 40 8 39.6 5 34.9 2 14 34 705 63 63 15 108 18 85 11 18 11 85 M6 50 84

FFB4010-2 40 10 39.5 7.144 34.3 2 21.1 44.2 660 63 63 20 108 18 85 11 18 11 80 M8×1 50 101

FFB5005-2 50 5 49 3.5 46.4 2 10 34 822 71 71 15 110 15 90 9 15 9 84 M8×1 60 58

FFB5006-2 50 6 48.9 3.969 45.9 2 12 38.1 830 71 71 15 110 15 90 9 15 9 84 M8×1 60 68

FFB5008-2 50 8 48.6 5 44.9 2 15.8 44.6 861 75 75 15 118 18 95 11 18 11 90 M8×1 60 87

FFB5010-2 50 10 49.5 7.144 44.3 2 25.3 62.1 864 75 75 15 118 18 95 11 18 11 90 M8×1 62 102

返回搜轴承首页

BEARINGPOWER	d0	Ph0	d1	Dw	Xd2	n	CaKN	C0aKN	kc	D1(g6)	D2	L2	D3	B	D4	D5	D6	h	D7	M	D8	L1
FFB2004LH-2	20	4	19.3	2.381	17.5	2	5.2	10.2	356	36	36	10	62	11	48	5.8	10	6	40	M6	25	49
FFB2004-2	20	4	19.1	3	16.9	2	5.2	10.2	356	36	36	10	62	11	48	5.8	10	6	40	M6	25	49
FFB2005-2	20	5	19.5	3.5	16.9	2	6.4	12.2	364	36	36	10	62	11	48	5.8	10	6	42	M6	25	55
FFB2504-2	25	4	24.1	3	21.9	2	5.9	13.5	445	40	40	10	66	11	53	5.8	10	6	46	M6	30	49
FFB2505-2	25	5	24.5	3.5	21.9	2	7.3	15.7	446	40	40	10	66	11	53	5.8	10	6	46	M6	30	55
FFB2506-2	25	6	23.9	3.969	20.9	2	7.9	15.8	432	40	40	10	66	11	53	5.8	10	6	46	M6	30	65
FFB3204-2	32	4	31.1	3	28.9	2	6.8	18.6	447	50	50	10	76	11	63	5.8	10	6	56	M6	38	47
FFB3205-2	32	5	31.5	3.5	28.9	2	8.2	21	560	50	50	10	82	13	67	7	12	7	62	M6	38	57
FFB3206-2	32	6	30.9	3.969	27.9	2	9.2	21.4	569	50	50	10	82	13	67	7	12	7	62	M6	38	65
FFB3210-2	32	10	32.5	7.144	27.3	2	18.1	33.5	524	53	53	15	90	15	71	9	15	9	70	M6	44	96
FFB4005-2	40	5	39.5	3.5	36.9	2	9.2	27	695	60	60	10	94	15	75	9	15	9	75	M6	48	58
FFB4006-2	40	6	38.9	3.969	35.9	2	10.6	29.2	690	60	60	10	94	15	75	9	15	9	75	M6	48	68
FFB4008-2	40	8	39.6	5	34.9	2	14	34	705	63	63	15	108	18	85	11	18	11	85	M6	50	84
FFB4010-2	40	10	39.5	7.144	34.3	2	21.1	44.2	660	63	63	20	108	18	85	11	18	11	80	M8×1	50	101
FFB5005-2	50	5	49	3.5	46.4	2	10	34	822	71	71	15	110	15	90	9	15	9	84	M8×1	60	58
FFB5006-2	50	6	48.9	3.969	45.9	2	12	38.1	830	71	71	15	110	15	90	9	15	9	84	M8×1	60	68
FFB5008-2	50	8	48.6	5	44.9	2	15.8	44.6	861	75	75	15	118	18	95	11	18	11	90	M8×1	60	87
FFB5010-2	50	10	49.5	7.144	44.3	2	25.3	62.1	864	75	75	15	118	18	95	11	18	11	90	M8×1	62	102
