SCI01604-4滚珠丝杆、SCI01605-4滚珠丝杆、SCI02004-4滚珠丝杆、SCI02005-4滚珠丝杆、SCI02504-4滚珠丝杆、SCI02505-4滚珠丝杆、SCI02510-4滚珠丝杆、SCI03204-4滚珠丝杆、SCI03205-4滚珠丝杆、SCI03210-4滚珠丝杆、SCI04005-4滚珠丝杆、SCI04010-4滚珠丝杆、SCI05010-4滚珠丝杆、SCI06310-4滚珠丝杆、SCI08010-4滚珠丝杆
发布时间：2025-06-20
|
型号 |

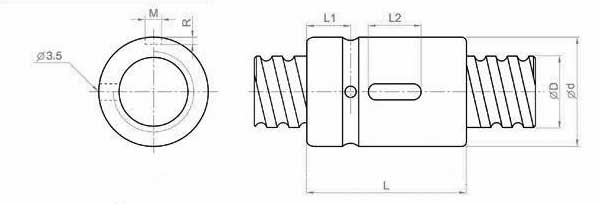

滚珠螺杆、螺帽之基准数据 | |||||||||||||
|
d |
l |
Da |
D |
L |
L1 |
L2 |
M |
R |
n |
Ca |
Coa |
K | ||
| SCI01604-4 |
16 |
4 |
2.381 |
30 |
40 |
9 |
15 |
3 |
1.5 |
4 |
625.7 |
1253.7 |
21.8 | |
|
★ |
SCI01605-4 |
16 |
5 |
3.175 |
30 |
45 |
9 |
20 |
5 |
3 |
4 |
888.1 |
1525 |
22.1 |
|
★ |
SCI02004-4 |
20 |
4 |
2.381 |
34 |
40 |
9 |
15 |
3 |
1.5 |
4 |
692.8 |
1583.7 |
26.9 |
|
★ |
SCI02005-4 |
20 |
5 |
3.175 |
34 |
45 |
9 |
20 |
5 |
3 |
4 |
999.3 |
1994.7 |
27.3 |
|
★ |
SCI02504-4 |
25 |
4 |
2.381 |
40 |
40 |
9 |
15 |
3 |
1.5 |
4 |
775.4 |
2045.6 |
33.4 |
|
★ |
SCI02505-4 |
25 |
5 |
3.175 |
40 |
45 |
9 |
20 |
5 |
3 |
4 |
1119.4 |
2581.4 |
33.8 |
|
★ |
SCI02510-4 |
25 |
10 |
4.762 |
46 |
85 |
13 |
30 |
5 |
3 |
4 |
1903.3 |
3695.4 |
34.5 |
|
★ |
SCI03204-4 |
32 |
4 |
2.381 |
46 |
40 |
9 |
15 |
3 |
1.5 |
4 |
867.5 |
2639.5 |
42.5 |
|
★ |
SCI03205-4 |
32 |
5 |
3.175 |
46 |
45 |
9 |
20 |
5 |
3 |
4 |
1264.1 |
3402.8 |
42.8 |
|
★ |
SCI03210-4 |
32 |
10 |
6.35 |
54 |
85 |
13 |
30 |
5 |
3 |
4 |
3092.6 |
6101.6 |
44.2 |
|
★ |
SCI04005-4 |
40 |
5 |
3.175 |
56 |
45 |
9 |
20 |
5 |
3 |
4 |
1407.1 |
4341.5 |
53.2 |
|
★ |
SCI04010-4 |
40 |
10 |
6.35 |
62 |
85 |
13 |
30 |
5 |
3 |
4 |
3480 |
7979 |
54.6 |
| SCI05010-4 |
50 |
10 |
6.35 |
72 |
85 |
13 |
30 |
5 |
3 |
4 |
3898.1 |
10325.7 |
67.5 | |
|
★ |
SCI06310-4 |
63 |
10 |
6.35 |
85 |
85 |
13 |
30 |
6 |
3.5 |
4 |
4401.9 |
13611.2 |
84.3 |
|
★ |
SCI08010-4 |
80 |
10 |
6.35 |
105 |
85 |
13 |
30 |
8 |
4.5 |
4 |
4900 |
17366 |
106.3 |
|
l:导程 Da:珠径 n:珠圈数 K: 刚性(kgf/μm) Ca: 动额定负荷(kgf) Coa: 静额定负荷(kgf) 备注：标记★可制作左螺纹 | ||||||||||||||
