SFU1605-4滚珠丝杆、SFU1610-3滚珠丝杆、SFU2005-4滚珠丝杆、SFU2505-4滚珠丝杆、SFU2510-4滚珠丝杆、SFU3205-4滚珠丝杆、SFU3210-4滚珠丝杆、SFU4005-4滚珠丝杆、SFU4010-4滚珠丝杆、SFU5010-4滚珠丝杆、SFU6310-4滚珠丝杆、SFU8010-4滚珠丝杆
发布时间：2025-05-05
|
型号 |

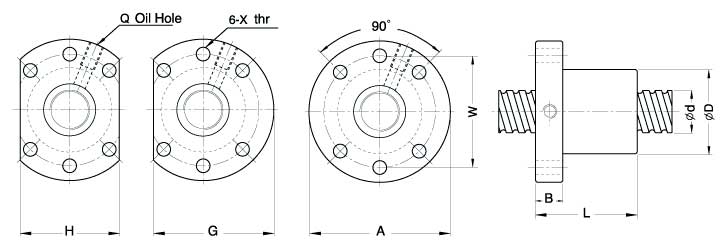

滚珠螺杆、螺帽之基准数据 | ||||||||||||||||
|
d |
l |
Da |
D |
A |
B |
L |
W |
X |
G |
H |
Q |
n |
Ca |
Coa |
K | ||
|
|
SFU1605-4 |
16 |
5 |
3.175 |
28 |
48 |
10 |
50 |
38 |
5.5 |
44 |
40 |
M6 |
4 |
780 |
1790 |
20 |
|
★ |
SFU1610-3 |
16 |
10 |
3.175 |
28 |
48 |
10 |
57 |
38 |
5.5 |
44 |
40 |
M6 |
3 |
721 |
1249 |
15 |
|
★ |
SFU2005-4 |
20 |
5 |
3.175 |
36 |
58 |
10 |
51 |
47 |
6.6 |
51 |
44 |
M6 |
4 |
1130 |
2380 |
25 |
|
★ |
SFU2505-4 |
25 |
5 |
3.175 |
40 |
62 |
10 |
51 |
51 |
6.6 |
55 |
48 |
M6 |
4 |
1280 |
3110 |
35 |
|
|
SFU2510-4 |
25 |
10 |
4.762 |
40 |
62 |
15 |
85 |
51 |
6.6 |
55 |
48 |
M6 |
4 |
1944 |
3877 |
33 |
|
★ |
SFU3205-4 |
32 |
5 |
3.175 |
50 |
80 |
12 |
52 |
65 |
9 |
71 |
62 |
M6 |
4 |
1450 |
4150 |
40 |
|
|
SFU3210-4 |
32 |
10 |
6.350 |
50 |
80 |
12 |
90 |
65 |
9 |
71 |
62 |
M6 |
4 |
3390 |
7170 |
40 |
|
★ |
SFU4005-4 |
40 |
5 |
3.175 |
63 |
93 |
14 |
55 |
78 |
9 |
81.5 |
70 |
M8 |
4 |
1610 |
5330 |
49 |
|
|
SFU4010-4 |
40 |
10 |
6.350 |
63 |
93 |
14 |
93 |
78 |
9 |
81.5 |
70 |
M8 |
4 |
3910 |
9520 |
50 |
|
|
SFU5010-4 |
50 |
10 |
6.350 |
75 |
110 |
16 |
93 |
93 |
11 |
97.5 |
85 |
M8 |
4 |
4450 |
12500 |
65 |
|
★ |
SFU6310-4 |
63 |
10 |
6.350 |
90 |
125 |
18 |
98 |
108 |
11 |
110 |
95 |
M8 |
4 |
5070 |
16600 |
80 |
|
★ |
SFU8010-4 |
80 |
10 |
6.350 |
105 |
145 |
20 |
98 |
125 |
14 |
127.5 |
110 |
M8 |
4 |
5620 |
21300 |
90 |
