DKFZD2506-4滚珠丝杠、DKFZD2506-5滚珠丝杠、DKFZD2510-4滚珠丝杠、DKFZD3206-5滚珠丝杠、DKFZD3206-6滚珠丝杠、DKFZD3210-4滚珠丝杠、DKFZD3210-5滚珠丝杠、DKFZD3212-4滚珠丝杠、DKFZD3212-5滚珠丝杠、DKFZD4010-5滚珠丝杠、DKFZD4010-6滚珠丝杠、DKFZD4012-5滚珠丝杠、DKFZD4012-6滚珠丝杠、DKFZD4016-5滚珠丝杠、DKFZD4016-6滚珠丝杠

发布时间：2019-10-01

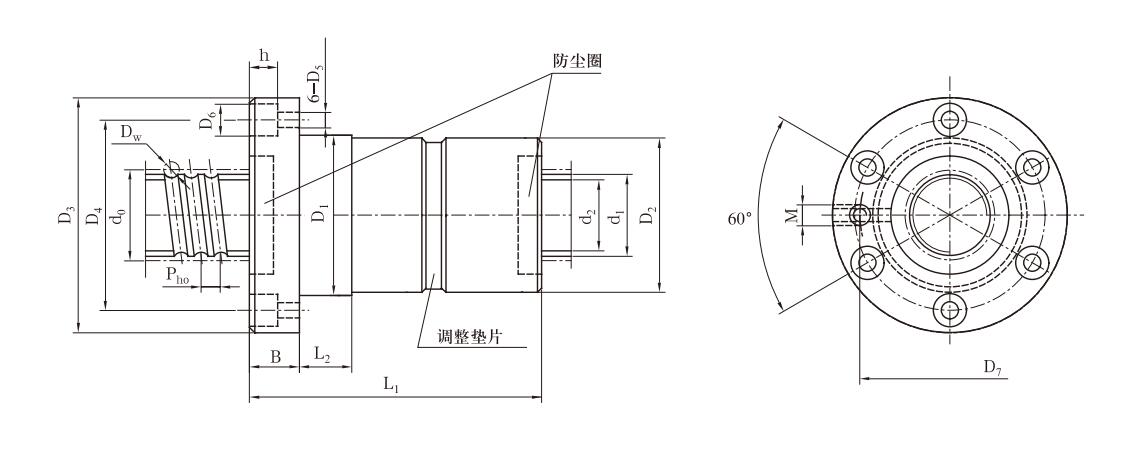

CODE d0 Ph0 Xd1 Xd2 Dw n CaKN C0aKN Kc D1 D2 L2 D3 B D4 D5 M L1
DKFZD2506-4 25 6 24 21.1 3.969 4 16.2 39.4 1022 45 45 10 65 10 54 6.6 M6 94
DKFZD2506-5 25 6 24 21.1 3.969 5 19.9 50 1281 45 45 10 65 10 54 6.6 M6 106
DKFZD2510-4 25 10 24 21.1 3.969 4 16.1 39.3 1011 45 45 15 65 11 54 6.6 M6 122
DKFZD3206-5 32 6 31 28.1 3.969 5 25.4 67.6 1664 50 50 10 80 12 65 9 M6 108
DKFZD3206-6 32 6 31 28.1 3.969 6 30 81.8 1980 50 50 10 80 12 65 9 M6 120
DKFZD3210-4 32 10 31 26.4 6.35 4 33.7 81.2 1324 62 62 15 92 14 77 9 M6 135
DKFZD3210-5 32 10 31 26.4 6.35 5 41.6 103.7 1661 62 62 15 92 14 77 9 M6 155
DKFZD3212-4 32 12 31 26.4 6.35 4 33.8 81.4 1326 62 62 15 92 14 77 9 M6 149
DKFZD3212-5 32 12 31 26.4 6.35 5 41.6 103.9 1663 62 62 15 92 14 77 9 M6 173
DKFZD4010-5 40 10 39 34.4 6.35 5 46.9 131.2 2026 70 70 20 100 14 85 9 M8X1 155
DKFZD4010-6 40 10 39 34.4 6.35 6 55.3 158.8 2431 70 70 20 100 14 85 9 M8X1 175
DKFZD4012-5 40 12 39 34.7 6.35 5 46.9 131.3 2023 70 70 20 100 14 85 9 M8X1 173
DKFZD4012-6 40 12 39 34.7 6.35 6 55.3 158.8 2428 70 70 20 100 14 85 9 M8X1 197
DKFZD4016-5 40 16 39 34.7 6.35 5 46.5 131.3 2009 70 70 30 100 14 85 9 M8X1 213
DKFZD4016-6 40 16 39 34.7 6.35 6 55.1 158.9 2412 70 70 30 100 14 85 9 M8X1 245
DKFZD4020-5 40 20 39 34.7 6.35 5 46.7 131.3 2009 70 70 30 100 14 85 9 M8X1 257
DKFZD4020-6 40 20 39 34.7 6.35 6 55 158.9 2410 70 70 30 100 14 85 9 M8X1 297
DKFZD40224 40 25 39 34.7 6.35 4 37.9 103.7 1588 70 70 30 100 14 85 9 M8X1 251
DKFZD40225 40 25 39 34.7 6.35 5 46.5 131.3 1990 70 70 30 100 14 85 9 M8X1 301
DKFZD5010-5 50 10 49 44.4 6.35 5 52.2 165 2438 82 82 20 118 16 100 11 M8X1 163
DKFZD5010-6 50 10 49 44.4 6.35 6 61.5 199.6 2923 82 82 20 118 16 100 11 M8X1 183
DKFZD5012-5 50 12 49 44.4 6.35 5 52.2 165 2438 82 82 20 118 16 100 11 M8X1 181
DKFZD5012-6 50 12 49 44.4 6.35 6 61.5 199.6 2923 82 82 20 118 16 100 11 M8X1 205
DKFZD5016-5 50 16 49 44.4 6.35 5 52.5 165.5 2452 82 82 30 118 16 100 11 M8X1 230
DKFZD5016-6 50 16 49 44.4 6.35 6 61.5 200.2 2940 82 82 30 118 16 100 11 M8X1 262
DKFZD5020-5 50 20 49 44.4 6.35 5 52.1 165.7 2430 82 82 30 118 16 100 11 M8X1 268
DKFZD5020-6 50 20 49 44.4 6.35 6 61.4 200.5 2914 82 82 30 118 16 100 11 M8X1 308
DKFZD50224 50 25 49 44.4 6.35 4 42.3 130.4 1933 82 82 30 118 16 100 11 M8X1 272
DKFZD50225 50 25 49 44.4 6.35 5 52 165.7 2419 82 82 30 118 16 100 11 M8X1 322
DKFZD5030-4 50 30 49 44.4 6.35 4 42.3 131 1920 82 82 30 118 16 100 11 M8X1 303
DKFZD5030-5 50 30 49 44.4 6.35 5 51.8 165.7 2403 82 82 30 118 16 100 11 M8X1 363
DKFZD6310-5 63 10 61 56.4 6.35 5 56.8 202.5 2868 95 95 20 135 22 115 13.5 M8X1 168
DKFZD6310-6 63 10 61 56.4 6.35 6 66.9 244.8 3437 95 95 20 135 22 115 13.5 M8X1 188
DKFZD6312-5 63 12 61 56.4 6.35 5 56.8 202.5 2915 95 95 20 135 22 115 13.5 M8X1 180
DKFZD6312-6 63 12 61 56.4 6.35 6 66.9 244.8 3494 95 95 20 135 22 115 13.5 M8X1 204
DKFZD6312-5 63 12 61 55.3 7.938 5 102.3 358.8 3904 98 98 20 138 20 118 13.5 M8X1 198
DKFZD6312-6 63 12 61 55.3 7.938 6 120.5 433.8 4680 98 98 20 138 20 118 13.5 M8X1 222
DKFZD6316-5 63 16 61 56.4 6.35 5 56.8 202.5 2915 95 95 30 135 22 115 13.5 M8X1 227
DKFZD6316-6 63 16 61 56.4 6.35 6 66.9 244.8 3494 95 95 30 135 22 115 13.5 M8X1 259
DKFZD6316-5 63 16 61 53.9 10 5 76.9 234.5 3056 107 107 30 147 20 127 13.5 M8X1 242
DKFZD6316-6 63 16 61 53.9 10 6 90.6 283.6 3637 107 107 30 147 20 127 13.5 M8X1 274
DKFZD6320-5 63 20 61 56.4 6.35 5 56.9 204.3 2912 95 95 40 135 22 115 13.5 M8X1 263
DKFZD6320-6 63 20 61 56.4 6.35 6 67.1 247.4 3490 95 95 40 135 22 115 13.5 M8X1 303
DKFZD6320-5 63 20 61 53.9 10 5 138.1 447.2 3971 107 107 40 147 20 127 13.5 M8X1 288
DKFZD6320-6 63 20 61 53.9 10 6 162.8 541.3 4763 107 107 40 147 20 127 13.5 M8X1 328
DKFZD6325-4 63 25 61 56.4 6.35 4 46.8 163.1 2321 95 95 40 135 22 115 13.5 M8X1 256
DKFZD6325-5 63 25 61 56.4 6.35 5 57.3 206.3 2903 95 95 40 135 22 115 13.5 M8X1 306
DKFZD6325-4 63 25 61 53.9 10 4 112.6 353.3 3161 107 107 40 147 20 127 13.5 M8X1 283.5
DKFZD6325-5 63 25 61 53.9 10 5 137.9 447.3 3959 107 107 40 147 20 127 13.5 M8X1 333.5
DKFZD6330-4 63 30 61 56.4 6.35 4 46.7 163.1 2305 95 95 40 135 22 115 13.5 M8X1 301
DKFZD6330-5 63 30 61 56.4 6.35 5 57.1 206.2 2882 95 95 40 135 22 115 13.5 M8X1 361
DKFZD6330-4 63 30 61 53.9 10 4 112.4 353.4 3149 107 107 40 147 20 127 13.5 M8X1 329
DKFZD6330-5 63 30 61 53.9 10 5 137.6 447.4 3943 107 107 40 147 20 127 13.5 M8X1 389
DKFZD6340-4 63 40 61 56.4 6.35 4 46.5 163.2 2263 95 95 40 135 22 115 13.5 M8X1 389
DKFZD6340-5 63 40 61 56.4 6.35 5 56.8 206.4 2830 95 95 40 135 22 115 13.5 M8X1 469
DKFZD6340-4 63 40 61 53.9 10 4 111.8 353.4 3118 107 107 40 147 20 127 13.5 M8X1 400
DKFZD6340-5 63 40 61 53.9 10 5 137.5 447.4 3904 107 107 40 147 20 127 13.5 M8X1 480
