DGF2020-0.8x4滚珠丝杠、DGZ2020-0.8x4滚珠丝杠、DGF2020-1.8x4滚珠丝杠、DGZ2020-1.8x4滚珠丝杠、DGF2025-0.8x4滚珠丝杠、DGZ2025-0.8x4滚珠丝杠、DGF2025-1.8x4滚珠丝杠、DGZ2025-1.8x4滚珠丝杠
发布时间：2026-06-25

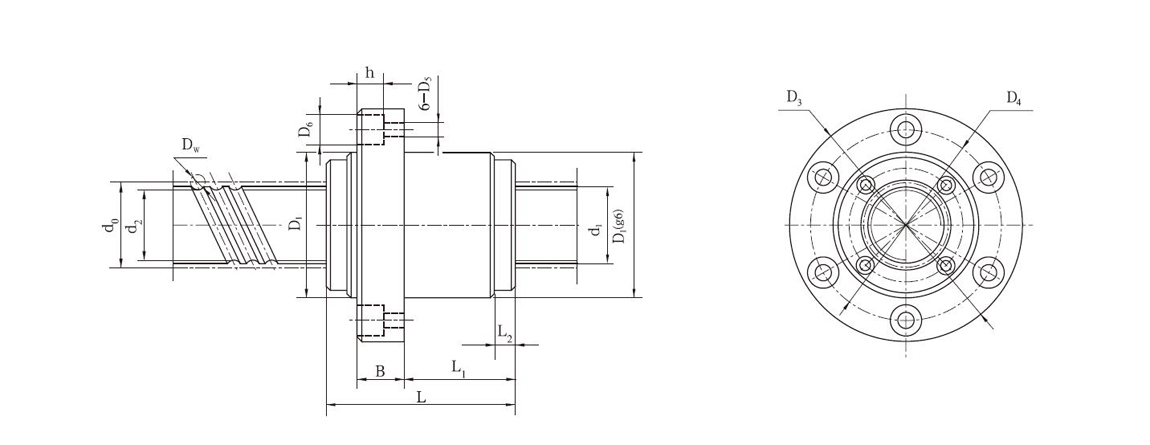

| CODE | d0 | Ph0 | d1 | Dw | d2 | n | Ca KN | C0a KN | D1(g6) | D3 | D4 | D5 | D6 | B | h | L | L1 | L2 | L3 | b×t |
| DGF2020-0.8x4 | 20 | 20 | 19.3 | 3.5 | 16.4 | 0.8x4 | 5.6 | 11.2 | 40 | 66 | 53 | 5.8 | 10 | 9 | 5 | 31 | 13 | 8 | - | - |
| DGZ2020-0.8x4 | 20 | 20 | 19.3 | 3.5 | 16.4 | 0.8x4 | 5.6 | 11.2 | 40 | - | - | - | - | - | - | 31 | - | 8 | 10 | 5×5 |
| DGF2020-1.8x4 | 20 | 20 | 19.3 | 3.5 | 16.4 | 1.8x4 | 11.4 | 25.2 | 40 | 66 | 53 | 5.8 | 10 | 11 | 6 | 51 | 33 | 8 | - | - |
| DGZ2020-1.8x4 | 20 | 20 | 19.3 | 3.5 | 16.4 | 1.8x4 | 11.4 | 25.2 | 40 | - | - | - | - | - | - | 51 | - | 8 | 20 | 5×5 |
| DGF20220.8x4 | 25 | 25 | 24.3 | 3.5 | 21.4 | 0.8x4 | 6.4 | 14.5 | 45 | 70 | 56 | 5.8 | 10 | 10 | 5 | 35 | 16 | 8 | - | - |
| DGZ20220.8x4 | 25 | 25 | 24.3 | 3.5 | 21.4 | 0.8x4 | 6.4 | 14.5 | 45 | - | - | - | - | - | - | 35 | - | 8 | 12 | 5×5 |
| DGF20221.8x4 | 25 | 25 | 24.3 | 3.5 | 21.4 | 1.8x4 | 12.9 | 32.7 | 45 | 70 | 56 | 5.8 | 10 | 11 | 6- | 60 | 40 | 8 | - | - |
| DGZ20221.8x4 | 25 | 25 | 24.3 | 3.5 | 21.4 | 1.8x4 | 12.9 | 32.7 | 45 | - | - | - | - | - | 60 | - | 8 | 30 | 5×5 | |
| DGF3232-0.8x4 | 32 | 32 | 31 | 4.763 | 27.1 | 0.8x4 | 11 | 25.6 | 60 | 92 | 75 | 7 | 12 | 13 | 7 | 48 | 22 | 12 | - | - |
| DGZ3232-0.8x4 | 32 | 32 | 31 | 4.763 | 27.1 | 0.8x4 | 11 | 25.6 | 60 | - | - | - | - | - | - | 48 | - | 12 | 15 | 6×6 |
| DGF3232-1.8x4 | 32 | 32 | 31 | 4.763 | 27.1 | 1.8x4 | 22 | 57.7 | 60 | 92 | 75 | 7 | 12 | 13 | 7 | 80 | 54 | 12 | - | - |
| DGZ3232-1.8x4 | 32 | 32 | 31 | 4.763 | 27.1 | 1.8x4 | 22 | 57.7 | 60 | - | - | - | - | - | - | 80 | - | 12 | 40 | 6×6 |
| DGF4040-0.8x4 | 40 | 40 | 39 | 5 | 34.9 | 0.8x4 | 12.9 | 33.7 | 71 | 110 | 90 | 9 | 15 | 15 | 9 | 54 | 26 | 12 | - | - |
| DGZ4040-0.8x4 | 40 | 40 | 39 | 5 | 34.9 | 0.8x4 | 12.9 | 33.7 | 71 | - | - | - | - | - | - | 54 | - | 12 | 20 | 6×6 |
| DGF4040-1.8x4 | 40 | 40 | 39 | 5 | 34.9 | 1.8x4 | 26 | 75.9 | 71 | 110 | 90 | 9 | 15 | 15 | 9 | 94 | 66 | 12 | - | - |
| DGZ4040-1.8x4 | 40 | 40 | 39 | 5 | 34.9 | 1.8x4 | 26 | 75.9 | 71 | - | - | - | - | - | - | 94 | - | 12 | 50 | 6×6 |
