搜轴承 -- 黑板报 -- 长圆柱滚子轴承YD95956轴承、YD95964轴承、YD96940轴承...
长圆柱滚子轴承YD95956轴承、YD95964轴承、YD96940轴承、YD96948轴承、YD96964轴承、YD96932轴承、YD96940轴承、YD96948轴承、YD96964轴承、YD96980轴承、YD97940轴承、YD97948轴承、YD97964轴承、YD97924轴承、YD97932轴承、YD97948轴承
发布时间：2025-05-04
|
Bearing |
Shaft |
Outside |
Operating |
Roller | |
|
Number |
Dia. |
Dia. |
Space |
Dia. | |
|
|
A |
B |
C |
D | |
| YD98724 | 1.2500 | 2.437 | 1.500 | .5000 | |
| YD98732 | 1.2500 | 2.437 | 2.000 | .5000 | |
| YD98740 | 1.2500 | 2.437 | 2.500 | .5000 | |
| YD98748 | 1.2500 | 2.437 | 3.000 | .5000 | |
| YD98756 | 1.2500 | 2.437 | 3.500 | .5000 | |
| YD98764 | 1.2500 | 2.437 | 4.000 | .5000 | |
| YD98780 | 1.2500 | 2.437 | 5.000 | .5000 | |
| YD99724 | 1.2500 | 2.562 | 1.500 | .5625 | |
| YD99732 | 1.2500 | 2.562 | 2.000 | .5625 | |
| YD99740 | 1.2500 | 2.562 | 2.500 | .5625 | |
| YD99748 | 1.2500 | 2.562 | 3.000 | .5625 | |
| YD99764 | 1.2500 | 2.562 | 4.000 | .5625 | |
| YD99780 | 1.2500 | 2.562 | 5.000 | .5625 | |
| YD95824 | 1.3750 | 2.125 | 1.500 | .3125 | |
| YD95828 | 1.3750 | 2.125 | 1.750 | .3125 | |
| YD95832 | 1.3750 | 2.125 | 2.000 | .3125 | |
| YD95840 | 1.3750 | 2.125 | 2.500 | .3125 | |
| YD95848 | 1.3750 | 2.125 | 3.000 | .3125 | |
| YD95856 | 1.3750 | 2.125 | 3.500 | .3125 | |
| YD95864 | 1.3750 | 2.125 | 4.000 | .3125 | |
| YD95824 | 1.3750 | 2.187 | 1.500 | .3125 | |
| YD95832 | 1.3750 | 2.187 | 2.000 | .3125 | |
| YD95840 | 1.3750 | 2.187 | 2.500 | .3125 | |
| YD95848 | 1.3750 | 2.187 | 3.000 | .3125 | |
| YD98824 | 1.3750 | 2.562 | 1.500 | .5000 | |
| YD98832 | 1.3750 | 2.562 | 2.000 | .5000 | |
| YD98840 | 1.3750 | 2.562 | 2.500 | .5000 | |
| YD98848 | 1.3750 | 2.562 | 3.000 | .5000 | |
| YD98856 | 1.3750 | 2.562 | 3.500 | .5000 | |
| YD98864 | 1.3750 | 2.562 | 4.000 | .5000 | |
| YD98880 | 1.3750 | 2.562 | 5.000 | .5000 | |
| YD230320 | 1.4375 | 1.875 | 1.250 | .1875 | |
| YD230932 | 1.4375 | 2.750 | 2.000 | .5625 | |
| YD230940 | 1.4375 | 2.750 | 2.500 | .5625 | |
| YD230948 | 1.4375 | 2.750 | 3.000 | .5625 | |
| YD230964 | 1.4375 | 2.750 | 4.000 | .5625 | |
| YD230980 | 1.4375 | 2.750 | 5.000 | .5625 | |
| YD95920 | 1.5000 | 2.250 | 1.250 | .3125 | |
| YD95928 | 1.5000 | 2.250 | 1.750 | .3125 | |
| YD95932 | 1.5000 | 2.250 | 2.000 | .3125 | |
| YD95940 | 1.5000 | 2.250 | 2.250 | .3125 | |
| YD95948 | 1.5000 | 2.250 | 3.000 | .3125 | |
| YD95956 | 1.5000 | 2.250 | 3.500 | .3125 | |
| YD95964 | 1.5000 | 2.250 | 4.000 | .3125 | |
| YD95924 | 1.5000 | 2.312 | 1.500 | .3125 | |
| YD95932 | 1.5000 | 2.312 | 2.000 | .3125 | |
| YD95940 | 1.5000 | 2.312 | 2.500 | .3125 | |
| YD95948 | 1.5000 | 2.312 | 3.000 | .3125 | |
| YD95956 | 1.5000 | 2.312 | 3.500 | .3125 | |
| YD95964 | 1.5000 | 2.312 | 4.000 | .3125 | |
| YD96940 | 1.5000 | 2.375 | 2.500 | .3750 | |
| YD96948 | 1.5000 | 2.375 | 3.000 | .3750 | |
| YD96964 | 1.5000 | 2.375 | 4.000 | .3750 | |
| YD96932 | 1.5000 | 2.437 | 2.000 | .3750 | |
| YD96940 | 1.5000 | 2.437 | 2.500 | .3750 | |
| YD96948 | 1.5000 | 2.437 | 3.000 | .3750 | |
| YD96964 | 1.5000 | 2.437 | 4.000 | .3750 | |
| YD96980 | 1.5000 | 2.437 | 5.000 | .3750 | |
| YD97940 | 1.5000 | 2.500 | 2.500 | .4375 | |
| YD97948 | 1.5000 | 2.500 | 3.000 | .4375 | |
| YD97964 | 1.5000 | 2.500 | 4.000 | .4375 | |
| YD97924 | 1.5000 | 2.562 | 1.500 | .4375 | |
| YD97932 | 1.5000 | 2.562 | 2.000 | .4375 | |
| YD97948 | 1.5000 | 2.562 | 3.000 | .4375 | |
| YD97964 | 1.5000 | 2.562 | 4.000 | .4375 | |
| YD97980 | 1.5000 | 2.562 | 5.000 | .4375 | |
| YD98932 | 1.5000 | 2.687 | 2.000 | .5000 | |
| YD98940 | 1.5000 | 2.687 | 2.500 | .5000 | |
| YD98948 | 1.5000 | 2.687 | 3.000 | .5000 | |
| YD98964 | 1.5000 | 2.687 | 4.000 | .5000 | |
| YD98980 | 1.5000 | 2.687 | 5.000 | .5000 | |
| YD99924 | 1.5000 | 2.812 | 1.500 | .5625 | |
| YD99928 | 1.5000 | 2.812 | 1.750 | .5625 | |
| YD99932 | 1.5000 | 2.812 | 2.000 | .5625 | |
| YD99940 | 1.5000 | 2.812 | 2.500 | .5625 | |
| YD99948 | 1.5000 | 2.812 | 3.000 | .5625 | |
| YD99964 | 1.5000 | 2.812 | 4.000 | .5625 | |
| YD99980 | 1.5000 | 2.812 | 5.000 | .5625 | |
| YD260632 | 1.6250 | 2.500 | 2.000 | .3750 | |
| YD260640 | 1.6250 | 2.500 | 2.500 | .3750 | |
| YD260648 | 1.6250 | 2.500 | 3.000 | .3750 | |
| YD260624 | 1.6250 | 2.562 | 1.500 | .3750 | |
| YD260632 | 1.6250 | 2.562 | 2.000 | .3750 | |
| YD260640 | 1.6250 | 2.562 | 2.500 | .3750 | |
| YD260648 | 1.6250 | 2.562 | 3.000 | .3750 | |
| YD260924 | 1.6250 | 2.937 | 1.500 | .5625 | |
| YD260932 | 1.6250 | 2.937 | 2.000 | .5625 | |
| YD260940 | 1.6250 | 2.937 | 2.500 | .5625 | |
| YD260948 | 1.6250 | 2.937 | 3.000 | .5625 | |
| YD260964 | 1.6250 | 2.937 | 4.000 | .5625 | |
| YD260980 | 1.6250 | 2.937 | 5.000 | .5625 | |
| YD270428 | 1.6875 | 2.250 | 1.750 | .2500 | |
| YD280416 | 1.7500 | 2.375 | 1.000 | .2500 | |
| YD280418 | 1.7500 | 2.375 | 1.125 | .2500 | |
| YD280524 | 1.7500 | 2.562 | 1.500 | .3125 | |
| YD280532 | 1.7500 | 2.500 | 2.000 | .3125 | |
| YD280556 | 1.7500 | 2.500 | 3.500 | .3125 | |
| YD280640 | 1.7500 | 2.625 | 2.500 | .3750 | |
| YD280648 | 1.7500 | 2.625 | 3.000 | .3750 | |
| YD280924 | 1.7500 | 3.062 | 1.500 | .5625 | |
| YD280932 | 1.7500 | 3.062 | 2.000 | .5625 | |
| YD280940 | 1.7500 | 3.062 | 2.500 | .5625 | |
| YD280948 | 1.7500 | 3.062 | 3.000 | .5625 | |
| YD280964 | 1.7500 | 3.062 | 4.000 | .5625 | |
| YD280980 | 1.7500 | 3.062 | 5.000 | .5625 | |
| YD280996 | 1.7500 | 3.062 | 6.000 | .5625 | |
| page | 14: | ||||
| YD281024 | 1.7500 | 3.187 | 1.500 | .6250 | |
| YD281028 | 1.7500 | 3.187 | 1.750 | .6250 | |
| YD281032 | 1.7500 | 3.187 | 2.000 | .6250 | |
| YD281040 | 1.7500 | 3.187 | 2.500 | .6250 | |
| YD281048 | 1.7500 | 3.187 | 3.000 | .6250 | |
| YD281056 | 1.7500 | 3.187 | 3.500 | .6250 | |
| YD281064 | 1.7500 | 3.187 | 4.000 | .6250 | |
| YD281032 | 1.7500 | 3.250 | 2.000 | .6250 | |
| YD281048 | 1.7500 | 3.250 | 3.000 | .6250 | |
| YD281064 | 1.7500 | 3.250 | 4.000 | .6250 | |
| YD300932 | 1.8750 | 3.187 | 2.000 | .5625 | |
| YD300948 | 1.8750 | 3.187 | 3.000 | .5625 | |
| YD300964 | 1.8750 | 3.187 | 4.000 | .5625 | |
| YD300980 | 1.8750 | 3.187 | 5.000 | .5625 | |
| YD300996 | 1.8750 | 3.187 | 6.000 | .5625 | |
| YD311032 | 1.9375 | 3.437 | 2.000 | .6250 | |
| YD311040 | 1.9375 | 3.437 | 2.500 | .6250 | |
| YD311048 | 1.9375 | 3.437 | 3.000 | .6250 | |
| YD311064 | 1.9375 | 3.437 | 4.000 | .6250 | |
| YD311080 | 1.9375 | 3.437 | 5.000 | .6250 | |
| YD311096 | 1.9375 | 3.437 | 6.000 | .6250 | |
| YD320824 | 2.0000 | 3.187 | 1.500 | .5000 | |
| YD320832 | 2.0000 | 3.187 | 2.000 | .5000 | |
| YD320840 | 2.0000 | 3.187 | 2.500 | .5000 | |
| YD320848 | 2.0000 | 3.187 | 3.000 | .5000 | |
| YD320828 | 2.0000 | 3.250 | 1.750 | .5000 | |
| YD320832 | 2.0000 | 3.250 | 2.000 | .5000 | |
| YD320848 | 2.0000 | 3.250 | 3.000 | .5000 | |
| YD320864 | 2.0000 | 3.250 | 4.000 | .5000 | |
| YD320880 | 2.0000 | 3.250 | 5.000 | .5000 | |
| YD321032 | 2.0000 | 3.500 | 2.000 | .6250 | |
| YD321040 | 2.0000 | 3.500 | 2.500 | .6250 | |
| YD321048 | 2.0000 | 3.500 | 3.000 | .6250 | |
| YD321064 | 2.0000 | 3.500 | 4.000 | .6250 | |
| YD321080 | 2.0000 | 3.500 | 5.000 | .6250 | |
| YD321096 | 2.0000 | 3.500 | 6.000 | .6250 | |
| YD351448 | 2.1875 | 4.187 | 3.000 | .8750 | |
| YD351464 | 2.1875 | 4.187 | 4.000 | .8750 | |
| YD351480 | 2.1875 | 4.187 | 5.000 | .8750 | |
| YD351496 | 2.1875 | 4.187 | 6.000 | .8750 | |
| YD361032 | 2.2500 | 3.750 | 2.000 | .6250 | |
| YD361040 | 2.2500 | 3.750 | 2.500 | .6250 | |
| YD361048 | 2.2500 | 3.750 | 3.000 | .6250 | |
| YD361064 | 2.2500 | 3.750 | 4.000 | .6250 | |
| YD361080 | 2.2500 | 3.750 | 5.000 | .6250 | |
| YD361096 | 2.2500 | 3.750 | 6.000 | .6250 | |
| YD361448 | 2.2500 | 4.250 | 3.000 | .8750 | |
| YD361464 | 2.2500 | 4.250 | 4.000 | .8750 | |
| YD361480 | 2.2500 | 4.250 | 5.000 | .8750 | |
| YD361496 | 2.2500 | 4.250 | 6.000 | .8750 | |
| YD401148 | 2.5000 | 4.125 | 3.000 | .6875 | |
| YD401164 | 2.5000 | 4.125 | 4.000 | .6875 | |
| YD401180 | 2.5000 | 4.125 | 5.000 | .6875 | |
| YD401196 | 2.5000 | 4.125 | 6.000 | .6875 | |
| YD401548 | 2.5000 | 4.625 | 3.000 | .9375 | |
| YD401564 | 2.5000 | 4.625 | 4.000 | .9375 | |
| YD401580 | 2.5000 | 4.625 | 5.000 | .9375 | |
| YD401596 | 2.5000 | 4.625 | 6.000 | .9375 | |
| YD441148 | 2.7500 | 4.375 | 3.000 | .6875 | |
| YD441164 | 2.7500 | 4.375 | 4.000 | .6875 | |
| YD441180 | 2.7500 | 4.375 | 5.000 | .6875 | |
| YD441196 | 2.7500 | 4.375 | 6.000 | .6875 | |
| YD441548 | 2.7500 | 4.875 | 3.000 | .9375 | |
| YD441564 | 2.7500 | 4.875 | 4.000 | .9375 | |
| YD441580 | 2.7500 | 4.875 | 5.000 | .9375 | |
| YD441596 | 2.7500 | 4.875 | 6.000 | .9375 | |
| YD481264 | 3.0000 | 4.750 | 4.000 | .7500 | |
| YD481280 | 3.0000 | 4.750 | 5.000 | .7500 | |
| YD481296 | 3.0000 | 4.750 | 6.000 | .7500 | |
| YD481648 | 3.0000 | 5.250 | 3.000 | 1.0000 | |
| YD481664 | 3.0000 | 5.250 | 3.000 | 1.0000 | |
| YD481680 | 3.0000 | 5.250 | 5.000 | 1.0000 | |
| YD481696 | 3.0000 | 5.250 | 6.000 | 1.0000 | |
| YD561448 | 3.5000 | 5.500 | 3.000 | .8750 | |
| YD561464 | 3.5000 | 5.500 | 4.000 | .8750 | |
| YD561480 | 3.5000 | 5.500 | 5.000 | .8750 | |
| YD561496 | 3.5000 | 5.500 | 6.000 | .8750 | |
| YD561864 | 3.5000 | 6.125 | 4.000 | 1.1250 | |
| YD561880 | 3.5000 | 6.125 | 5.000 | 1.1250 | |
| YD561896 | 3.5000 | 6.125 | 6.000 | 1.1250 | |
 |

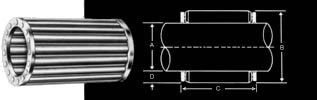

| Bearing Number |
Shaft Dia. |
Outside Dia. |
Length |
Roller Dia. |
| YD91222NAH | .625 | 1.188 | 1.375 | .218 |
| YD9123ONAH | .625 | 1.188 | 1.875 | .218 |
| YD92322NAH | .750 | 1.188 | 1.375 | .156 |
| YD9233ONAH | .750 | 1.188 | 1.875 | .156 |
