CTF1610-2.5滚珠丝杠、CTF2010-2.5滚珠丝杠、CTF2016-1.5滚珠丝杠、CTF2020-1.5滚珠丝杠、CTF2520-1.5滚珠丝杠、CTF2525-1.5滚珠丝杠、CTF3225-1.5滚珠丝杠、CTF3232-1.5滚珠丝杠、CTF4032-1.5滚珠丝杠、CTF4040-1.5滚珠丝杠

发布时间：2025-06-20

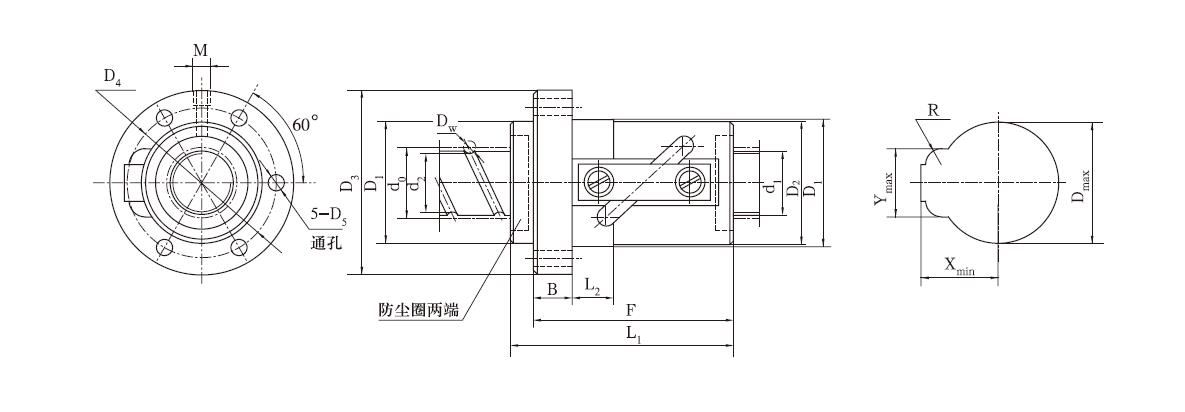

CODE d0 Ph0 d1 Dw d2 n Ca KN C0a KN D1(g6) D2 D3 D4 D5 X Y L1 F B L2 M R

CTF1610-2.5 16 10 15 3.175 12.7 2.5x1 6.8 13.1 32 32 53 42 5.5 19.3 19.5 57 52 10 10 M6 8

CTF2010-2.5 20 10 18.9 3.969 15.9 2.5x1 10.3 20.6 36 36 60 48 6.6 24 24 59 54 12 15 M6 10

CTF2016-1.5 20 16 18.9 3.969 15.9 1.5x1 6.5 12.1 36 36 60 48 7 24 24 66 61 12 15 M6 10

CTF2020-1.5 20 20 18.9 3.969 15.9 1.5x1 6.3 11.9 36 36 60 48 7 24 24 74 69 12 15 M6 10

CTF2520-1.5 25 20 23.8 4.763 20.1 1.5x1 9.3 18.6 40 40 66 53 7 29 29 78 72 12 15 M6 10

CTF2525-1.5 25 25 23.8 4.763 20.1 1.5x1 9.1 18.3 40 40 66 53 7 29 29 89 83 12 15 M6 10

CTF3225-1.5 32 25 30.8 4.763 27.1 1.5x1 10.3 22.9 50 50 82 67 9 33 33 85 79 15 20 M6 12

CTF3232-1.5 32 32 30.8 4.763 27.1 1.5x1 10.4 24.1 50 50 82 67 9 35 35 99 91 15 20 M6 12

CTF4032-1.5 40 32 38.2 6.35 33.5 1.5x1 17 39.4 63 63 108 85 11 44 44 112 104 18 25 M8×1 14

CTF4040-1.5 40 40 38.2 6.35 33.5 1.5x1 16.6 38.8 63 63 108 85 11 44 44 122 112 18 25 M8×1 14

返回搜轴承首页

CODE	d0	Ph0	d1	Dw	d2	n	Ca KN	C0a KN	D1(g6)	D2	D3	D4	D5	X	Y	L1	F	B	L2	M	R
CTF1610-2.5	16	10	15	3.175	12.7	2.5x1	6.8	13.1	32	32	53	42	5.5	19.3	19.5	57	52	10	10	M6	8
CTF2010-2.5	20	10	18.9	3.969	15.9	2.5x1	10.3	20.6	36	36	60	48	6.6	24	24	59	54	12	15	M6	10
CTF2016-1.5	20	16	18.9	3.969	15.9	1.5x1	6.5	12.1	36	36	60	48	7	24	24	66	61	12	15	M6	10
CTF2020-1.5	20	20	18.9	3.969	15.9	1.5x1	6.3	11.9	36	36	60	48	7	24	24	74	69	12	15	M6	10
CTF2520-1.5	25	20	23.8	4.763	20.1	1.5x1	9.3	18.6	40	40	66	53	7	29	29	78	72	12	15	M6	10
CTF2525-1.5	25	25	23.8	4.763	20.1	1.5x1	9.1	18.3	40	40	66	53	7	29	29	89	83	12	15	M6	10
CTF3225-1.5	32	25	30.8	4.763	27.1	1.5x1	10.3	22.9	50	50	82	67	9	33	33	85	79	15	20	M6	12
CTF3232-1.5	32	32	30.8	4.763	27.1	1.5x1	10.4	24.1	50	50	82	67	9	35	35	99	91	15	20	M6	12
CTF4032-1.5	40	32	38.2	6.35	33.5	1.5x1	17	39.4	63	63	108	85	11	44	44	112	104	18	25	M8×1	14
CTF4040-1.5	40	40	38.2	6.35	33.5	1.5x1	16.6	38.8	63	63	108	85	11	44	44	122	112	18	25	M8×1	14
