NA312-39轴承、NA313-40轴承、NA313轴承、NA314-44轴承、NA314轴承、NA315轴承、NA315-48轴承、NA316轴承、NA317-52轴承、NA317轴承、NA318-56轴承、NA318轴承、NA319轴承、NA319-60轴承、NA320轴承、NA320-64轴承

发布时间：2025-05-04

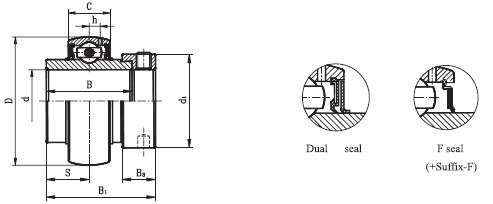

Bearing No.	shaft Dia.										Eccentric collar	Basic load ratings (N)		Mass(kg)
	d		D	B	C	S	B1	B3	h	d1		Dynamic Cr	Static Cor
	(in.)	(mm)
NA305-14	7/8		62	34.9	21	16.7	46.8	15.9	6.2	42.8	A305-14	22360	11500	0.46
NA305-15	15/16		62	34.9	21	16.7	46.8	15.9	6.2	42.8	A305-15	22360	11500	0.44
NA305		25	62	34.9	21	16.7	46.8	15.9	6.2	42.8	A305	22360	11500	0.43
NA305-16	1		62	34.9	21	16.7	46.8	15.9	6.2	42.8	A305-16	22360	11500	0.43
NA306-18	1-1/8		72	36.5	24	17.5	50	17.5	6.5	50	A306-18	27000	15200	0.71
NA306		30	72	36.5	24	17.5	50	17.5	6.5	50	A306	27000	15200	0.68
NA306-19	1-3/16		72	36.5	24	17.5	50	17.5	6.5	50	A306-19	27000	15200	0.68
NA307-20	1-1/4		80	38.1	25	18.3	51.6	17.5	7.2	55	A307-20	33500	19200	0.86
NA307-21	1-5/16		80	38.1	25	18.3	51.6	17.5	7.2	55	A307-21	33500	19200	0.83
NA307-22	1-3/8		80	38.1	25	18.3	51.6	17.5	7.2	55	A307-22	33500	19200	0.80
NA307		35	80	38.1	25	18.3	51.6	17.5	7.2	55	A307	33500	19200	0.80
NA307-23	1-7/16		80	38.1	25	18.3	51.6	17.5	7.2	55	A307-23	33500	19200	0.78
NA308-24	1-1/2		90	41.3	28	19.8	57.1	20.6	8.5	63.5	A308-24	40560	24000	1.13
NA308-25	1-9/16		90	41.3	28	19.8	57.1	20.6	8.5	63.5	A308-25	40560	24000	1.13
NA308		40	90	41.3	28	19.8	57.1	20.6	8.5	63.5	A308	40560	24000	1.08
NA309-26	1-5/8		100	42.9	30	19.8	58.7	20.6	9	70	A309-26	53000	31800	1.57
NA309-27	1-11/16		100	42.9	30	19.8	58.7	20.6	9	70	A309-27	53000	31800	1.52
NA309-28	1-3/4		100	42.9	30	19.8	58.7	20.6	9	70	A309-28	53000	31800	1.47
NA309		45	100	42.9	30	19.8	58.7	20.6	9	70	A309	53000	31800	1.45
NA310-30	1-7/8		110	49.2	32	24.6	66.6	22.2	9.9	76.2	A310-30	61750	37800	1.93
NA310-31	1-15/16		110	49.2	32	24.6	66.6	22.2	9.9	76.2	A310-31	61750	37800	1.88
NA310		50	110	49.2	32	24.6	66.6	22.2	9.9	76.2	A310	61750	37800	1.86
NA311-32	2		120	55.6	34	27.8	73	22.2	10.6	83	A311-32	71500	44800	2.49
NA311-34	2-1/8		120	55.6	34	27.8	73	22.2	10.6	83	A311-34	71500	44800	2.36
NA311		55	120	55.6	34	27.8	73	22.2	10.6	83	A311	71500	44800	2.30
NA311-35	2-3/16		120	55.6	34	27.8	73	22.2	10.6	83	A311-35	71500	44800	2.24
NA312-36	2-1/4		130	61.9	36	30.95	79.4	23.9	11.3	89	A312-36	81600	51800	2.95
NA312		60	130	61.9	36	30.95	79.4	23.9	11.3	89	A312	81600	51800	2.89
NA312-38	2-3/8		130	61.9	36	30.95	79.4	23.9	11.3	89	A312-38	81600	51800	2.89
NA312-39	2-7/16		130	61.9	36	30.95	79.4	23.9	11.3	89	A312-39	81600	51800	2.86
NA313-40	2-1/2		140	65.1	38	32.5	85.7	27	12.1	97	A313-40	93860	60500	3.85
NA313		65	140	65.1	38	32.5	85.7	27	12.1	97	A313	93860	60500	3.66
NA314-44	2-3/4		150	68.3	40	34.15	92.1	30.2	12.8	102	A314-44	104260	68000	4.40
NA314		70	150	68.3	40	34.15	92.1	30.2	12.8	102	A314	104260	68000	4.50
NA315		75	160	74.6	42	37.3	100	31.8	13.5	113	A315	113360	76800	5.34
NA315-48	3		160	74.6	42	37.3	100	31.8	13.5	113	A315-48	113360	76800	5.34
NA316		80	170	81	44	40.5	106.4	31.8	14.5	119	A316	122850	86500	6.70
NA317-52	3-1/4		180	84.1	46	42	109.5	31.8	15.5	127	A317-52	132600	96500	8.03
NA317		85	180	84.1	46	42	109.5	31.8	15.5	127	A317	132600	96500	7.96
NA318-56	3-1/2		190	87.3	48	43.6	115.9	36.5	16.5	133	A318-56	143000	108000	9.10
NA318		90	190	87.3	48	43.6	115.9	36.5	16.5	133	A318	143000	108000	9.10
NA319		95	200	93.7	50	46.8	122.3	36.5	16.7	140	A319	156000	122000	10.4
NA319-60	3-3/4		200	93.7	50	46.8	122.3	36.5	16.7	140	A319-60	156000	122000	10.4
NA320		100	215	100	54	50	128.6	36.5	19	146	A320	171600	140000	13.0
NA320-64	4		215	100	54	50	128.6	36.5	19	146	A320-64	171600	140000	13.0
