NAFL201S轴承、NAFL201-8S轴承、NAFL203S轴承、NAFL203-11S轴承、NAFL204-12轴承、NAFL204轴承、NAFL205-14轴承、NAFL205-15轴承、NAFL205轴承、NAFL205-16轴承

发布时间：2025-05-05

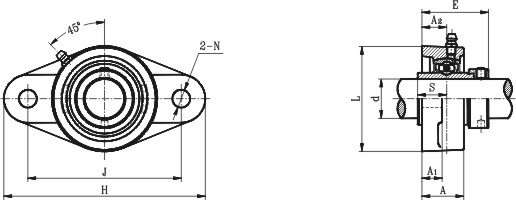

带座轴 承代号 轴径 外形尺寸(mm) 螺栓规格 轴承代码 座代号 重量(kg) 可选用 d H J L A2 A1 A E N S F (in.) (mm) N  NAFL201S 12 99 76.5 57 15 11 24.5 38.4 11.5 13.9 M10 NA201S FL203 0.48  NAFL201-8S 1/2 99 76.5 57 15 11 24.5 38.4 11.5 13.9 M10 NA201-8S FL203 0.48  NAFL203S 17 99 76.5 57 15 11 24.5 38.4 11.5 13.9 M10 NA203S FL203 0.48  NAFL203-11S 11/16 99 76.5 57 15 11 34.5 38.4 11.5 13.9 M10 NA203-11S FL203 0.48  NAFL204-12 3/4 113 90 60 15 11 25.5 41.5 11.5 17 31 M10 NA204-12 FL204 0.7 12  NAFL204 20 113 90 60 15 11 25.5 41.5 11.5 17 31 M10 NA204 FL204 0.7 12  NAFL205-14 7/8 130 99 68 16 13 27 42.9 11.5 17.4 36 M10 NA205-14 FL205 0.8 16  NAFL205-15 15/16 130 99 68 16 13 27 42.9 11.5 17.4 36 M10 NA205-25 FL205 0.8 16  NAFL205 25 130 99 68 16 13 27 42.9 11.5 17.4 36 M10 NA205 FL205 0.8 16  NAFL205-16 1 130 99 68 16 13 27 42.9 11.5 17.4 36 M10 NA205-16 FL206 0.8 16  NAFL206-18 1-1/8 148 117 80 18 13 31 48.1 11.5 18.2 42 M10 NA206-18 FL206 1.2 16  NAFL206 30 148 117 80 18 13 31 48.1 11.5 18.2 42 M10 NA206 FL206 1.2 16  NAFL206-19 1-3/16 148 117 80 18 13 31 48.1 11.5 18.2 42 M10 NA206-19 FL206 1.2 16  NAFL206-20 1-1/4 148 117 80 18 13 31 48.1 11.5 18.2 42 M10 NA206-20 FL206 1.2 16  NAFL207-20 1-1/4 161 130 90 19 14 34 51.3 14 18.8 50 M12 NF207-20 FL207 1.6 16  NAFL207-21 1-5/16 161 130 90 19 14 34 51.3 14 18.8 50 M12 NA207-21 FL207 1.6 16  NAFL207-22 1-3/8 161 130 90 19 14 34 51.3 14 18.8 50 M12 NA207-22 FL207 1.6 16  NAFL207 35 161 130 90 19 14 34 51.3 14 18.8 50 M12 NA207 FL207 1.6 16  NAFL207-23 1-7/16 161 130 90 19 14 34 51.3 14 18.8 50 M12 NA207-23 FL207 1.6 16  NAFL208-24 1-1/2 175 144 100 21 14 36 55.9 14 21.4 55 M12 NA208-24 FL208 1.9 16  NAFL208-25 1-9/16 175 144 100 21 14 36 55.9 14 21.4 55 M12 NA208-25 FL208 1.9 16  NAFL208 40 175 144 100 21 14 36 55.9 14 21.4 55 M12 NA208 FL208 1.9 16  NAFL209-26 1-5/8 188 148 108 22 16 38 56.9 18 21.4 M16 NA209-26 FL209 2.3 19  NAFL209-27 1-11/16 188 148 108 22 16 38 56.9 18 21.4 M16 NA209-27 FL209 2.3 19  NAFL209-28 1-3/4 188 148 108 22 16 38 56.9 18 21.4 M16 NA209-28 FL209 2.3 19  NAFL209 45 188 148 108 22 16 38 56.9 18 21.4 M16 NA209 FL209 2.3 19  NAFL210-30 1-7/8 197 157 115 22 16 40 60.1 18 24.6 64 M16 NA210-30 FL210 2.6 19  NAFL210-31 1-15/16 197 157 115 22 16 40 60.1 18 24.6 64 M16 NA210-31 FL210 2.6 19  NAFL210 50 197 157 115 22 16 40 60.1 18 24.6 64 M16 NA210 FL210 2.6 19  NAFL211-32 2 224 184 130 25 18 43 68.6 18 27.7 71 M16 NA211-32 FL211 3.8 19  NAFL211-34 2-1/8 224 184 130 25 18 43 68.6 18 27.7 71 M16 NA211-34 FL211 3.8 19  NAFL211 55 224 184 130 25 18 43 68.6 18 27.7 71 M16 NA211 FL211 3.8 19  NAFL211-35 2-3/16 224 184 130 25 18 43 68.6 18 27.7 71 M16 NA211-35 FL211 3.8 19  NAFL212-36 2-1/4 250 202 140 29 18 48 75.8 18 30.9 77 M16 NA212-36 FL212 4.8 23  NAFL212 60 250 202 140 29 18 48 75.8 18 30.9 77 M16 NA212 FL212 4.8 23  NAFL212-38 2-3/8 250 202 140 29 18 48 75.8 18 30.9 77 M16 NA212-38 FL212 4.8 23  NAFL212-39 2-7/16 250 202 140 29 18 48 75.8 18 30.9 77 M16 NA212-39 FL212 4.8 23  NAFL213-40 2-1/2 258 210 155 30 20 50 81.6 23 34.1 84 M20 NA213-40 FL213 6.0  NAFL213 65 258 210 155 30 20 50 81.6 23 34.1 84 M20 NA213 FL213 6.0  NAFL214-44 2-3/4 265 216 160 31 20 54 82.6 23 34.1 89 M20 NA214-44 FL214 6.3  NAFL214 70 265 216 160 31 20 54 82.6 23 34.1 89 M20 NA214 FL214 6.3  NAFL215 75 275 225 164 34 22 55 88.8 23 37.3 94 M20 NA215 FL215 7.2  NAFL215-48 3 275 225 164 34 22 55 88.8 23 37.3 94 M20 NA215 FL215 7.2  NAFL216 80 290 233 180 34 22 58 91.5 25 37.3 101 M22 NA216 FL216 7.37  NAFL202S 15 99 76.5 57 15 11 24.5 38.4 11.5 13.9 M10 NA202S FL203 0.48  NAFL202-10SQ 5/8 99 76.5 57 15 11 24.5 38.4 11.5 13.9 M10 NA202-10S FL203 0.48  NAFL201 12 113 90 60 15 11 25.5 41.5 11.5 17 31 M10 NA201 FL204 0.73 12  NAFL201-8 1/2 113 90 60 15 11 25.5 41.5 11.5 17 31 M10 NA201-8 FL204 0.73 12  NAFL202 15 113 90 60 15 11 25.5 41.5 11.5 17 31 M10 NA202 FL204 0.73 12  NAFL202-10 5/8 113 90 60 15 11 25.5 41.5 11.5 17 31 M10 NA202-10 FL204 0.73 12
