SBPP205-16轴承、SBPP206轴承、SBPP206-18轴承、SBPP206-19轴承、SBPP206-20轴承、SBPP207轴承、SBPP207-20轴承、SBPP207-21轴承、SBPP207-22轴承、SBPP207-23轴承

发布时间：2026-06-24

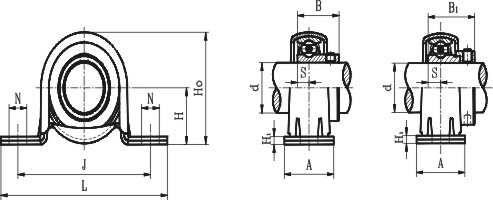

带座轴承代号	轴径		外形尺寸(mm)									螺栓规格	轴承代码	座代号	重量(kg)
	d		H	J	L	A	N	N1	H0	S	B
	(in.)	(mm	H	J	L	A	N	N1	H0	S	B
SBPP201		12	22.2	68	86	25	9.5	3	43.5	6	22	M8	SB201	PP203	0.15
SBPP201-8	1/2		22.2	68	86	25	9.5	3	43.5	6	22	M8	SB201-8	PP203	0.15
SBPP202		15	22.2	68	86	25	9.5	3	43.5	6	22	M8	SB202	PP203	0.15
SBPP202-10	5/8		22.2	68	86	25	9.5	3	43.5	6	22	M8	SB202-10	PP203	0.15
SBPP203		17	22.2	68	86	25	9.5	3	43.5	6	22	M8	SB203	PP203	0.15
SBPP203-11	11/16		22.2	68	86	25	9.5	3	43.5	6	22	M8	SB203-11	PP203	0.15
SBPP204-12	3/4		25.4	76	98	32	9.5	3	50.2	7	25	M8	SB204-12	PP204	0.2
SBPP204		20	25.4	76	98	32	9.5	3	50.2	7	25	M8	SB204	PP204	0.2
SBPP205-14	7/8		28.6	86	108	32	11.5	4	56.4	7.5	27	M10	SB205-14	PP205	0.28
SBPP205-15	15/16		28.6	86	108	32	11.5	4	56.4	7.5	27	M10	SB205-15	PP205	0.28
SBPP205		25	28.6	86	108	32	11.5	4	56.4	7.5	27	M10	SB205	PP205	0.28
SBPP205-16	1		28.6	86	108	32	11.5	4	56.4	7.5	27	M10	SB205-16	PP205	0.28
SBPP206-18	1-1/8		33.3	95	117	38	11.5	4	66.1	8	29	M10	SB206-18	PP206	0.42
SBPP206		30	33.3	95	117	38	11.5	4	66.1	8	29	M10	SB206	PP206	0.42
SBPP206		30	33.3	95	117	38	11.5	4	66.1	8	29	M10	SB206	PP206	0.42
SBPP206-19	1-3/16		33.3	95	117	38	11.5	4	66.1	8	29	M10	SB206-19	PP206	0.42
SBPP206-20	1-1/4		33.3	95	117	38	11.5	4	66.1	8	29	M10	SB206-20	PP206	0.42
SBPP207-20	1-1/4		39.7	106	129	42	11.5	4	77.7	9	32	M10	SB207-20	PP207	0.55
SBPP207-21	1-5/16		39.7	106	129	42	11.5	4	77.7	9	32	M10	SB207-21	PP207	0.55
SBPP207-22	1-3/8		39.7	106	129	42	11.5	4	77.7	9	32	M10	SB207-22	PP207	0.55
SBPP207		35	39.7	106	129	42	11.5	4	77.7	9	32	M10	SB207	PP207	0.55
SBPP207-23	1-7/16		39.7	106	129	42	11.5	4	77.7	9	32	M10	SB207-23	PP207	0.55
