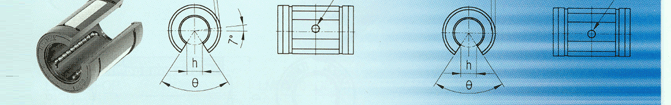

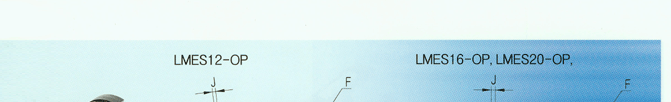

LMES12UUOP直线轴承、LMES16UUOP直线轴承、LMES20UUOP直线轴承、LMES25UUOP直线轴承、LMES30UUOP直线轴承、LMES40UUOP直线轴承、LMES50UUOP直线轴承
发布时间：2025-10-22
 |
 |
 |
 |
| 轴径
(mm) |
开口型（Open Type) |
尺寸(mm) | 基本额定载荷 | |||||||||||
|
型号 |
球列数 | 重量
(g) |
D1) | L
±0.2 |
L2 | E | Ø
(º) |
F | G | J | 额定动载荷
C(N) |
额定静载荷
C。(N) | ||
| 无密封 | 带密封 | |||||||||||||
| 12 | LMES12OP | LMES12UUOP | 4 | 18 | 22 | 32 | 1.35 | 6.5 | 66 | 3.0 | - | 0.7 | 1290 | 1260 |
| 16 | LMES16OP | LMES16UUOP | 4 | 22 | 26 | 36 | 1.35 | 9 | 68 | - | 0.7 | 1640 | 1320 | |
| 20 | LMES20OP | LMES20UUOP | 5 | 51 | 32 | 56 | 1.65 | 9 | 55 | - | 0.9 | 2630 | 1720 | |
| 25 | LMES25OP | LMES25UUOP | 5 | 102 | 40 | 58 | 1.90 | 11.5 | 57 | 1.5 | 1.4 | 3910 | 2850 | |
| 30 | LMES30OP | LMES30UUOP | 5 | 155 | 48 | 68 | 1.90 | 14 | 57 | 2.0 | 2.2 | 4850 | 2900 | |
| 40 | LMES40OP | LMES40UUOP | 5 | 300 | 62 | 80 | 2.20 | 19.5 | 56 | 1.5 | 2.7 | 6700 | 5900 | |
| 50 | LMES50OP | LMES50UUOP | 5 | 480 | 75 | 100 | 2.70 | 22.5 | 54 | 2.5 | 2.3 | 11700 | 8100 | |
