GH3264QS-HEZR-1500A滚珠丝杠、GH1230QS-BEZR-500滚珠丝杠、GH1230QS-BEZR-0800A滚珠丝杠、GH1540QS-BEZR-600滚珠丝杠、GH1540QS-BEZR-1100A滚珠丝杠、GH2060QS-BEZR-1000滚珠丝杠、GH2060QS-BEZR-1500A滚珠丝杠

发布时间：2019-10-17

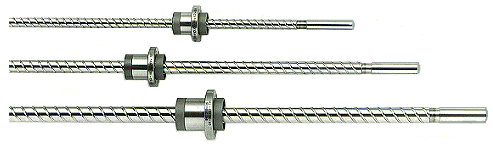

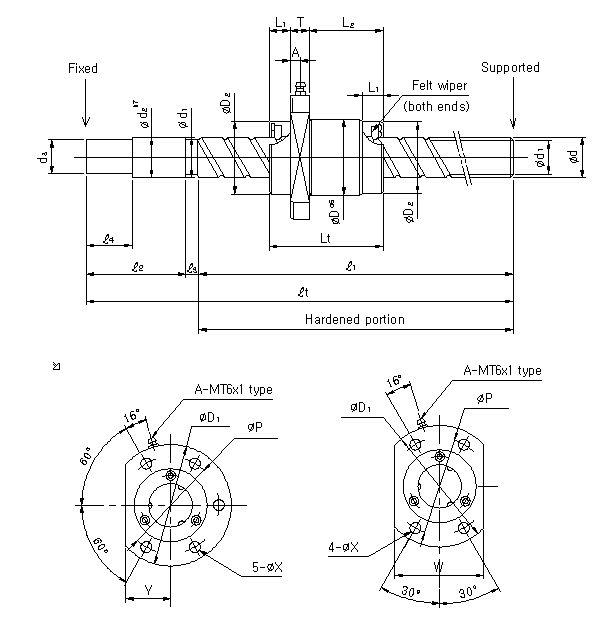

Model number Outside lead Screw Shaft Nut size

Flange size

diameter Thread overall Shaft end length Outside Overall Body length Outside T Width P.C.D.

d L length length diameter length of Nut diameter P

ℓ1 ℓt d2 d3 ℓ2 ℓ3 ℓ4 D D2 Lt L1 L2 D1 Y W

GH1632QS-DEZR-600 16 32 530 600 16 15.5 55 15 25 35 34.5 36.3 8.5 16.8 56 10 19 38 44

GH1632QS-HEZR-1100A 1030 1100

GH2040QS-DEZR-1000 20 40 910 1000 20 19.5 75 15 25 40 39.5 44.7 10 23.7 62 10 22 44 50

GH2040QS-HEZR-1500A 1410 1500

GH2550QS-DEZR-1000 25 50 900 1015 25 24.5 100 15 25 50 49 71 14 45 76 12 27 54 62

GH2550QS-HEZR-1500A 1600 1715

GH3264QS-DEZR-1000 32 64 1065 1200 32 31.5 120 15 25 60 59 85 14.5 55.5 94 15 33 66 76

GH3264QS-HEZR-1500A

1565 1700

GH1230QS-BEZR-500 12 30 430 500 12 11.7 55 15 20 32 31.5 35 8.5 15.5 56 10 48 32 43

GH1230QS-BEZR-0800A 730 800

GH1540QS-BEZR-600 15 40 530 600 15 14.5 55 15 25 34 33.5 41.7 8.5 20.2 58 12 50 34 45

GH1540QS-BEZR-1100A 1030 1100

GH2060QS-BEZR-1000 20 60 905 1000 20 19.5 75 20 25 40 39.5 58 10 35 62 12 56 40 50

GH2060QS-BEZR-1500A 1405 1500
