GE2520AS-BALR-2020滚珠丝杠、GE2525AS-BALR-1020滚珠丝杠、GE2525AS-BALR-1520A滚珠丝杠、GE2525AS-BALR-2020滚珠丝杠、GE3205ES-DALR-600滚珠丝杠、GE3205ES-DALR-1000A滚珠丝杠、GE3210DS-DALR-1000滚珠丝杠、GE3210DS-DALR-1600A滚珠丝杠、GE3210DS-DALR-2000滚珠丝杠
发布时间：2026-01-31

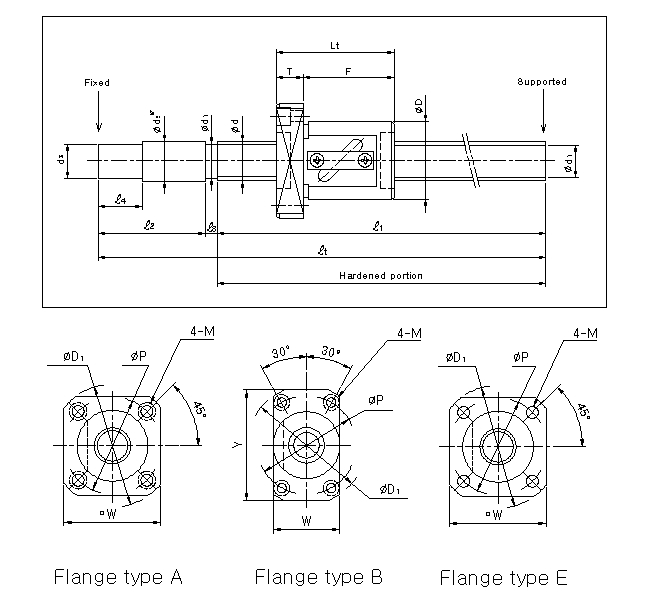

| Model number | outside | lead | Screw Shaft | Nut Size | Ball | Basic | Preload | ||||||||||||||
| outside | Overall | Body | Flange size | ||||||||||||||||||
| GE series | diameter | Thread | Overall | Root | Shaft end size | diameter | lengthl | length | diameter | load rating | torque | ||||||||||
| length | length | diameter | of nut | of nut | of nut | Type | outisde | T | P.C.D | ||||||||||||
| d | L | D | Lt | F | diameter | Db | C | Co | (daN) | ||||||||||||
| 1 | t | d1 | d2 | d3 | 2 | 3 | 4 | D1 | (daN) | (daN) | |||||||||||
| GE2004ES-AALR-605 | 20 | 4 | 525 | 605 | 18.1 | 20 | 19.5 | 75 | 5 | 25 | 40 | 49 | 39 | A | 64 | 10 | 51 | 2.3812 | 860 | 2340 | 0.3 |
| GE2004ES-AALR-1005A | 925 | 1005 | |||||||||||||||||||
| GE2005DS-BALR-605 | 5 | 525 | 605 | 17.5 | 20 | 19.5 | 75 | 5 | 25 | 40 | 48 | 36 | B | 68 | 12 | 53 | 3.175 | 835 | 1750 | 0.3 | |
| GE2005DS-BALR-1005A | 925 | 1005 | |||||||||||||||||||
| GE2005DS-BALR-1505 | 1425 | 1505 | |||||||||||||||||||
| GE2010DS-BALR-605 | 10 | 522 | 605 | 16 | 20 | 19.5 | 75 | 8 | 25 | 46 | 65 | 50 | B | 74 | 15 | 59 | 4.7625 | 1350 | 2510 | 0.4 | |
| GE2010DS-BALR-1005A | 922 | 1005 | |||||||||||||||||||
| GE2010DS-BALR-1505 | 1422 | 1505 | |||||||||||||||||||
| GE2020AS-BALR-1005 | 20 | 922 | 1005 | 15.9 | 20 | 19.5 | 75 | 8 | 25 | 46 | 70 | 55 | B | 74 | 15 | 59 | 4.7625 | 920 | 1620 | 0.4 | |
| GE2020AS-BALR-1505A | 1422 | 1505 | |||||||||||||||||||
| GE2020AS-BALR-1805 | 1722 | 1805 | |||||||||||||||||||
| GE2505DS-AALR-600 | 25 | 5 | 495 | 600 | 22.5 | 25 | 24.5 | 100 | 5 | 25 | 47 | 48 | 36 | A | 74 | 12 | 60 | 3.175 | 940 | 2220 | 0.4 |
| GE2505DS-AALR-1000A | 895 | 1000 | 0.6 | ||||||||||||||||||
| GE2510DS-BALR-1020 | 10 | 912 | 1020 | 21 | 25 | 24.5 | 100 | 8 | 25 | 52 | 65 | 50 | B | 86 | 15 | 68 | 4.7625 | 1610 | 3340 | 0.4 | |
| GE2510DS-BALR-1520A | 1412 | 1520 | |||||||||||||||||||
| GE2510DS-BALR-2220 | 2112 | 2220 | 0.6 | ||||||||||||||||||
| GE2520AS-BALR-1020 | 20 | 912 | 1020 | 21 | 25 | 24.5 | 100 | 8 | 25 | 52 | 70 | 55 | B | 86 | 15 | 68 | 4.7625 | 1040 | 2010 | 0.4 | |
| GE2520AS-BALR-1520A | 1412 | 1520 | |||||||||||||||||||
| GE2520AS-BALR-2020 | 1912 | 2020 | 0.6 | ||||||||||||||||||
| GE2525AS-BALR-1020 | 25 | 912 | 1020 | 21 | 25 | 24.5 | 100 | 8 | 25 | 54 | 77 | 62 | B | 88 | 15 | 70 | 4.7625 | 1040 | 2010 | 0.4 | |
| GE2525AS-BALR-1520A | 1412 | 1520 | |||||||||||||||||||
| GE2525AS-BALR-2020 | 1912 | 2020 | 0.6 | ||||||||||||||||||
| GE3205ES-DALR-600 | 32 | 5 | 445 | 600 | 29.5 | 32 | 31.5 | 150 | 5 | 25 | 58 | 58 | 46 | D | 85 | 12 | 71 | 3.175 | 1900 | 5720 | 0.5 |
| GE3205ES-DALR-1000A | 845 | 1000 | 0.7 | ||||||||||||||||||
| GE3210DS-DALR-1000 | 10 | 790 | 1000 | 27.2 | 32 | 31.5 | 200 | 10 | 25 | 74 | 68 | 53 | D | 108 | 15 | 90 | 6.35 | 2580 | 5560 | 0.5 | |
| GE3210DS-DALR-1600A | 1390 | 1600 | |||||||||||||||||||
| GE3210DS-DALR-2000 | 1790 | 2000 | 0.7 | ||||||||||||||||||
