搜轴承 -- 黑板报 -- 722505DB轴承座、722506DB轴承座、722507DB轴承座、722508DB...
722505DB轴承座、722506DB轴承座、722507DB轴承座、722508DB轴承座、722509DB轴承座、722510DB轴承座、722511DB轴承座、722512DB轴承座、722513DB轴承座
发布时间：2025-05-05

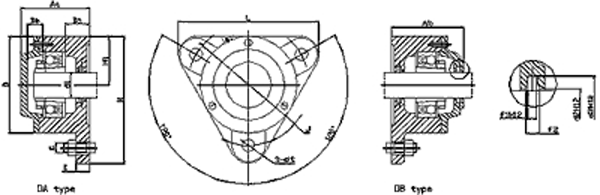

| Housing No. | Shaft Dia |
Dimensions(mm) | Housing Wt (kg) |
Bearing No. |
Adapter Sleeve |
Locating Ring | ||||||||||||||||||
| DA | DB | d1 (mm) |
Aa | Ab | g | Ba | Bb | D | H | H1 | J | L | S | f1 H12 |
f2 | d2 H12 |
d3 H12 |
G | DA | DB | Number | QTY | ||
| 722505DA | 722505DB | 20 | 51.5 | 56.5 | 10 | 15 | 12.5 | 75 | 100 | 38 | 96 | 110 | 11.5 | 3 | 4.2 | 21.5 | 31 | M10 | 1.48 | 1.55 | 1205EK 2205EK 22205EK |
H205 H305 H305 |
FRB5/52 ZW42x52 ZW42x52 |
1 1 1 |
| 722506DA | 722506DB | 25 | 57 | 59.5 | 12 | 16 | 15 | 86 | 117 | 44 | 116 | 130 | 11.5 | 4 | 5.4 | 26.5 | 38 | M10 | 2 | 2.1 | 1206EK 2206EK 22206EK |
H206 H306 H306 |
FRB6/62 ZW50x62 ZW50x62 |
1 1 1 |
| 722507DA | 722507DB | 30 | 59.5 | 63.5 | 12 | 16 | 14.5 | 97 | 130 | 48.5 | 130 | 145 | 14 | 4 | 5.4 | 31.5 | 43 | M12 | 2.9 | 3 | 1207EK 2207EK 22207EK |
H207 H307 H307 |
FRB8/72 ZW65x72 ZW65x72 |
1 1 1 |
| 722508DA | 722508DB | 35 | 64 | 65.5 | 12 | 17 | 18 | 108 | 143 | 54 | 140 | 160 | 14 | 4 | 5.4 | 36.5 | 48 | M12 | 3.43 | 3.48 | 1208EK 2208EK 22208EK |
H208 H308 H308 |
FRB7/80 ZW70x80 ZW70x80 |
1 1 1 |
| 722509DA | 722509DB | 40 | 64.5 | 69.5 | 12 | 19 | 16.5 | 113 | 160 | 60 | 160 | 180 | 14 | 4 | 5.4 | 41.5 | 53 | M12 | 4.3 | 4.45 | 1209EK 2209EK 22209EK |
H209 H309 H309 |
FRB6/85 ZW75x85 ZW75x85 |
1 1 1 |
| 722510DA | 722510DB | 45 | 68.5 | 73 | 15 | 22 | 17.5 | 118 | 160 | 60 | 160 | 180 | 14 | 4 | 5.4 | 46.5 | 58 | M12 | 4.2 | 4.3 | 1210EK 2210EK 22210EK |
H210 H310 H310 |
FRB5/90 ZW80x90 ZW80x90 |
1 1 1 |
| 722511DA | 722511DB | 50 | 75.5 | 81.5 | 15 | 24 | 19.5 | 128 | 172 | 65 | 170 | 192 | 14 | 5 | 6.8 | 51.5 | 67 | M12 | 5.25 | 5.45 | 1211EK 2211EK 22211EK |
H211 H311 H311 |
FRB6/100 ZW85x100 ZW85x100 |
1 1 1 |
| 722512DA | 722512DB | 55 | 77 | 82 | 15 | 23 | 19 | 142 | 189 | 72 | 180 | 210 | 14 | 5 | 6.8 | 56.5 | 72 | M12 | 6.8 | 7.15 | 1212EK 2212EK 22212EK |
H212 H312 H312 |
FRB8/110 ZW90x110 ZW90x110 |
1 1 1 |
| 722513DA | 722513DB | 60 | 80 | 86 | 15 | 22 | 20 | 152 | 203 | 78 | 190 | 225 | 14 | 5 | 6.8 | 62 | 77 | M12 | 7.65 | 7.8 | 1213EK 2213EK 22213EK |
H213 H313 H313 |
FRB10/120 FRB2/120 FRB2/120 |
1 1 1 |
