SAF618轴承座、SAF620轴承座、SAF622轴承座、SAF624轴承座、SAF626轴承座、SAF628轴承座、SAF630轴承座、SAF632轴承座、SAF634轴承座、SAF636轴承座、SAF638轴承座、SAF640轴承座

发布时间：2025-05-05

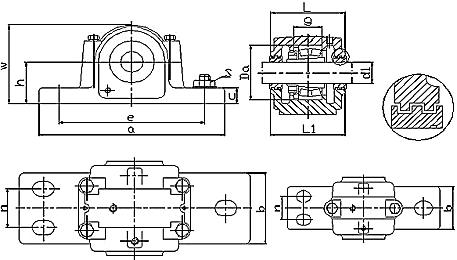

Housing
No. Shaft dia
d₁(in) Dimensions(mm) Housing
Wt (kg) Bearing
No. Adapter
Sleeve Locating Ring Housing
No.

D
H8 g
H12 h
h12 w L (L₁) a b c e
max e
min n S

Number QTY

SAF609 1-7/16 100 46 69.9 135 105 108 245 70 25 200.2 187.5 M16
(2) 7.2 1309K
2309K
21309K
22309K HA309
HA2309
HA309
HA2309 FR100x10.5
FR100x10
FR100x10.5
FR100x10 2
1
2
1 SAF609

SAF610 1-11/16 110 51 76.2 148 114 118 270 70 29 228.6 196.9 M16
(2) 9.2 1310K
2310K
21310K
22310K HA310
HA2310
HA310
HA2310 FR110x11.5
FR110x10
FR110x11.5
FR110x10 2
1
2
1 SAF610

SAF611 1-15/16 120 53 82.6 157 121 124 279 80 30 241.3 206.5 M16
(2) 11 1311K
2311K
21311K
22311K HA311
HA2311
HA311
HA2311 FR120x12
FR120x10
FR120x12
FR120x10 2
1
2
1 SAF611

FSAF611 1-15/16 120 53 82.6 157 121 124 279 80 30 241.3 206.5 51 M12
(4) 11 1311K
2311K
21311K
22311K HA311
HA2311
HA311
HA2311 FR120x12
FR120x10
FR120x12
FR120x10 2
1
2
1 FSAF611

SAF613 2-3/16 140 58 88.9 176 133 137 330 90 32 279.4 244.6 M20
(2) 13.3 1313K
2313K
21313K
22313K HA313
HA2313
HA313
HA2313 FR140x12.5
FR140x10
FR140x12.5
FR140x10 2
1
2
1 SFA613

FSAF613 2-3/16 140 58 88.9 176 133 137 330 90 32 279.4 244.6 54 M16
(4) 13.3 1313K
2313K
21313K
22313K HA313
HA2313
HA313
HA2313 FR140x12.5
FR140x10
FR140x12.5
FR140x10 2
1
2
1 FSAF613

SAF615 2-7/16 160 65 101.6 197 149 159 349 100 33 295.4 263.7 M20
(2) 21 1315K
2315K
21315K
22315K HA315
HA2315
HA315
HA2315 FR160x14
FR160x10
FR160x14
FR160x10 2
1
2
1 SAF615

FSAF615 2-7/16 160 65 101.6 197 149 159 349 100 33 295.4 263.7 54 M16
(4) 21 1315K
2315K
21315K
22315K HA315
HA2315
HA315
HA2315 FR160x14
FR160x10
FR160x14
FR160x10 2
1
2
1 FSAF615

SAF616 2-11/16 170 68 108 210 156 165 362 100 33 320.8 270 M20
(2) 24 1316K
2316K
21316K
22316K HA316
HA2316
HA316
HA2316 FR170x14.5
FR170x10
FR170x14.5
FR170x10 2
1
2
1 SAF616

FSAF616 2-11/16 170 68 108 210 156 165 362 100 33 320.8 270 54 M16
(4) 24 1316K
2316K
21316K
22316K HA316
HA2316
HA316
HA2316 FR170x14.5
FR170x10
FR170x14.5
FR170x10 2
1
2
1 FSAF616

SAF617 2-15/16 180 70 114.3 222 165 172 387 111 45 333.5 295.4 M24
(2) 27 1317K
2317K
21317K
22317K HA317
HA2317
HA317
HA2317 FR180x14.5
FR180x10
FR180x14.5
FR180x10 2
1
1
1 SAF617

FSAF617 2-15/16 180 70 114.3 222 165 172 387 111 45 333.5 295.4 61 M20
(4) 27 1317K
2317K
21317K
22317K HA317
HA2317
HA317
HA2317 FR180x14.5
FR180x10
FR180x14.5
FR180x10 2
1
1
1 FSAF617

SAF618 3-3/16 190 74 120.7 233 168 175 394 111 51 342.9 304.8 57 M20
(4) 29.5 1318K
2318K
21318K
20318K
22318K HA318
HA2318
HA318
HA318
HA2318 FR190x11.5
FR190x10
FR190x15.5
FR190x15.5
FR190x10 2
1
2
2
1 SAF618

SAF620 3-7/16 215 83 133.3 260 181 187 419 121 54 368.3 336.6 70 M20
(4) 42 1320K
2320K
20320K
21320K
22320K HA320
HA2320
HA320
HA320
HA2320 FR215x18
FR215x10
FR215x18
FR215x18
FR215x10 2
1
2
2
1 SAF620

SAF622 3-15/16 240 90 152.4 292 197 203 467 130 61 406.4 371.6 83 M20
(4) 50 1322K
20322K
21322K
22322K HA322
HA322
HA322
HA2322 FR240x20
FR240x20
FR240x20
FR240x10 2
2
2
1 SAF622

SAF624 4-3/16 260 96 160.4 318 207 213 540 160 64 463.6 431.8 95 M24
(4) 72 20324K
22324K HA3124
HA2324 FR260x20.5
FR260x10 2
1 SAF624

SAF626 4-7/16 280 103 169.9 338 216 222 559 160 67 489 441.5 95 M24
(4) 77.7 20326K
22326K HA3126
HA2326 FR280x22.5
FR280x10 2
1 SAF626

SAF628 4-15/16 300 112 179.4 360 235 238 629 172 70 549.4 492.3 108 M24
(4) 95 20328K
22328K HA3128
HA2328 FR300x25
FR300x10 2
1 SAF628

SAF630 5-3/16 320 118 190.5 378 245 248 680 181 76 600.2 530.4 117.6 M24
(4) 118 20330K
22330K HA3130
HA2330 FR320x26.5
FR320x10 2
1 SAF630

SAF632 5-7/16 340 124 200 398 267 270 711 191 80 619.3 549.4 114.3 M30
(4) 128 20332K
22332K HA3132
HA2332 FR340x28
FR340x10 2
1 SAF632

SAF634 5-15/16 360 130 209.6 419 279 286 749 203 86 635 571.5 127 M30
(4) 150 22334K HA2334 FR360x10 1 SAF634

SAF636 6-7/16 380 136 225.4 451 282 289 794 210 89 676 610 133 M30
(4) 170.2 22336K HA2336 FR380x10 1 SAF636

SAF638 6-15/16 400 142 241.3 473 298 305 832 222 95 708.2 628.7 133.4 M30
(4) 198 22338K HA2338 FR400x10 1 SAF638

SAF640 7-3/16 420 148 250.8 508 299 306 870 229 102 749 667 140 M30
(4) 255 22340K HA2340 FR420x10 1 SAF640

上一篇：722505DA轴承座、722506DA轴承座、722507DA轴承座、722508DA轴承座、722509DA轴承座、722510DA轴承座、722511DA轴承座、722512DA轴承座、722513DA轴承座 —— 下一篇：SAF609轴承座、SAF610轴承座、SAF611轴承座、FSAF611轴承座、SAF613轴承座、FSAF613轴承座、SAF615轴承座、FSAF615轴承座、SAF616轴承座、FSAF616轴承座、SAF617轴承座、FSAF617轴承座

返回搜轴承首页

Housing No.	Shaft dia d₁(in)	Dimensions(mm)													Housing Wt (kg)	Bearing No.	Adapter Sleeve	Locating Ring		Housing No.
		D H8	g H12	h h12	w	L	(L₁)	a	b	c	e max	e min	n	S				Locating Ring
		D H8	g H12	h h12	w	L	(L₁)	a	b	c	e max	e min	n	S				Number	QTY
SAF609	1-7/16	100	46	69.9	135	105	108	245	70	25	200.2	187.5		M16 (2)	7.2	1309K 2309K 21309K 22309K	HA309 HA2309 HA309 HA2309	FR100x10.5 FR100x10 FR100x10.5 FR100x10	2 1 2 1	SAF609
SAF610	1-11/16	110	51	76.2	148	114	118	270	70	29	228.6	196.9		M16 (2)	9.2	1310K 2310K 21310K 22310K	HA310 HA2310 HA310 HA2310	FR110x11.5 FR110x10 FR110x11.5 FR110x10	2 1 2 1	SAF610
SAF611	1-15/16	120	53	82.6	157	121	124	279	80	30	241.3	206.5		M16 (2)	11	1311K 2311K 21311K 22311K	HA311 HA2311 HA311 HA2311	FR120x12 FR120x10 FR120x12 FR120x10	2 1 2 1	SAF611
FSAF611	1-15/16	120	53	82.6	157	121	124	279	80	30	241.3	206.5	51	M12 (4)	11	1311K 2311K 21311K 22311K	HA311 HA2311 HA311 HA2311	FR120x12 FR120x10 FR120x12 FR120x10	2 1 2 1	FSAF611
SAF613	2-3/16	140	58	88.9	176	133	137	330	90	32	279.4	244.6		M20 (2)	13.3	1313K 2313K 21313K 22313K	HA313 HA2313 HA313 HA2313	FR140x12.5 FR140x10 FR140x12.5 FR140x10	2 1 2 1	SFA613
FSAF613	2-3/16	140	58	88.9	176	133	137	330	90	32	279.4	244.6	54	M16 (4)	13.3	1313K 2313K 21313K 22313K	HA313 HA2313 HA313 HA2313	FR140x12.5 FR140x10 FR140x12.5 FR140x10	2 1 2 1	FSAF613
SAF615	2-7/16	160	65	101.6	197	149	159	349	100	33	295.4	263.7		M20 (2)	21	1315K 2315K 21315K 22315K	HA315 HA2315 HA315 HA2315	FR160x14 FR160x10 FR160x14 FR160x10	2 1 2 1	SAF615
FSAF615	2-7/16	160	65	101.6	197	149	159	349	100	33	295.4	263.7	54	M16 (4)	21	1315K 2315K 21315K 22315K	HA315 HA2315 HA315 HA2315	FR160x14 FR160x10 FR160x14 FR160x10	2 1 2 1	FSAF615
SAF616	2-11/16	170	68	108	210	156	165	362	100	33	320.8	270		M20 (2)	24	1316K 2316K 21316K 22316K	HA316 HA2316 HA316 HA2316	FR170x14.5 FR170x10 FR170x14.5 FR170x10	2 1 2 1	SAF616
FSAF616	2-11/16	170	68	108	210	156	165	362	100	33	320.8	270	54	M16 (4)	24	1316K 2316K 21316K 22316K	HA316 HA2316 HA316 HA2316	FR170x14.5 FR170x10 FR170x14.5 FR170x10	2 1 2 1	FSAF616
SAF617	2-15/16	180	70	114.3	222	165	172	387	111	45	333.5	295.4		M24 (2)	27	1317K 2317K 21317K 22317K	HA317 HA2317 HA317 HA2317	FR180x14.5 FR180x10 FR180x14.5 FR180x10	2 1 1 1	SAF617
FSAF617	2-15/16	180	70	114.3	222	165	172	387	111	45	333.5	295.4	61	M20 (4)	27	1317K 2317K 21317K 22317K	HA317 HA2317 HA317 HA2317	FR180x14.5 FR180x10 FR180x14.5 FR180x10	2 1 1 1	FSAF617
SAF618	3-3/16	190	74	120.7	233	168	175	394	111	51	342.9	304.8	57	M20 (4)	29.5	1318K 2318K 21318K 20318K 22318K	HA318 HA2318 HA318 HA318 HA2318	FR190x11.5 FR190x10 FR190x15.5 FR190x15.5 FR190x10	2 1 2 2 1	SAF618
SAF620	3-7/16	215	83	133.3	260	181	187	419	121	54	368.3	336.6	70	M20 (4)	42	1320K 2320K 20320K 21320K 22320K	HA320 HA2320 HA320 HA320 HA2320	FR215x18 FR215x10 FR215x18 FR215x18 FR215x10	2 1 2 2 1	SAF620
SAF622	3-15/16	240	90	152.4	292	197	203	467	130	61	406.4	371.6	83	M20 (4)	50	1322K 20322K 21322K 22322K	HA322 HA322 HA322 HA2322	FR240x20 FR240x20 FR240x20 FR240x10	2 2 2 1	SAF622
SAF624	4-3/16	260	96	160.4	318	207	213	540	160	64	463.6	431.8	95	M24 (4)	72	20324K 22324K	HA3124 HA2324	FR260x20.5 FR260x10	2 1	SAF624
SAF626	4-7/16	280	103	169.9	338	216	222	559	160	67	489	441.5	95	M24 (4)	77.7	20326K 22326K	HA3126 HA2326	FR280x22.5 FR280x10	2 1	SAF626
SAF628	4-15/16	300	112	179.4	360	235	238	629	172	70	549.4	492.3	108	M24 (4)	95	20328K 22328K	HA3128 HA2328	FR300x25 FR300x10	2 1	SAF628
SAF630	5-3/16	320	118	190.5	378	245	248	680	181	76	600.2	530.4	117.6	M24 (4)	118	20330K 22330K	HA3130 HA2330	FR320x26.5 FR320x10	2 1	SAF630
SAF632	5-7/16	340	124	200	398	267	270	711	191	80	619.3	549.4	114.3	M30 (4)	128	20332K 22332K	HA3132 HA2332	FR340x28 FR340x10	2 1	SAF632
SAF634	5-15/16	360	130	209.6	419	279	286	749	203	86	635	571.5	127	M30 (4)	150	22334K	HA2334	FR360x10	1	SAF634
SAF636	6-7/16	380	136	225.4	451	282	289	794	210	89	676	610	133	M30 (4)	170.2	22336K	HA2336	FR380x10	1	SAF636
SAF638	6-15/16	400	142	241.3	473	298	305	832	222	95	708.2	628.7	133.4	M30 (4)	198	22338K	HA2338	FR400x10	1	SAF638
SAF640	7-3/16	420	148	250.8	508	299	306	870	229	102	749	667	140	M30 (4)	255	22340K	HA2340	FR420x10	1	SAF640
