搜轴承 -- 黑板报 -- ORNE203轴承、ORAE204轴承、ORAE205轴承、ORAE206轴承、ORAE...
ORNE203轴承、ORAE204轴承、ORAE205轴承、ORAE206轴承、ORAE207轴承、ORAE208轴承、ORAE209轴承|外球面轴承
发布时间：2025-06-20
 |

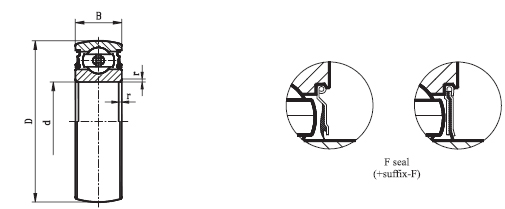

| Bearing No. | Shaft Dia. | Dimensions(mm) | Basicload ratings(N) | Mass(kg) | ||||
| d | D | B | r(min) | Dynamic | Static Cor | |||
| d | ||||||||
| ORAE203 | 17 | 40 | 12 | 0.6 | 9580 | 4780 | 0.05 | |
| ORAE204 | 20 | 47 | 14 | 0.6 | 12800 | 6650 | 0.095 | |
| ORAE205 | 25 | 52 | 15 | 0.6 | 14000 | 7880 | 0.11 | |
| ORAE206 | 30 | 62 | 18 | 0.6 | 19500 | 11500 | 0.21 | |
| ORAE207 | 35 | 72 | 19 | 1.1 | 25700 | 15200 | 0.29 | |
| ORAE208 | 40 | 80 | 22 | 1.1 | 29500 | 18200 | 0.38 | |
| ORAE209 | 45 | 85 | 22 | 1.1 | 31850 | 20800 | 0.44 | |
