RGW45CC滑块|HIWIN滑块轴承、RGW45HC滑块|HIWIN滑块轴承、RGW55CC滑块|HIWIN滑块轴承、RGW55HC滑块|HIWIN滑块轴承

发布时间：2025-05-04

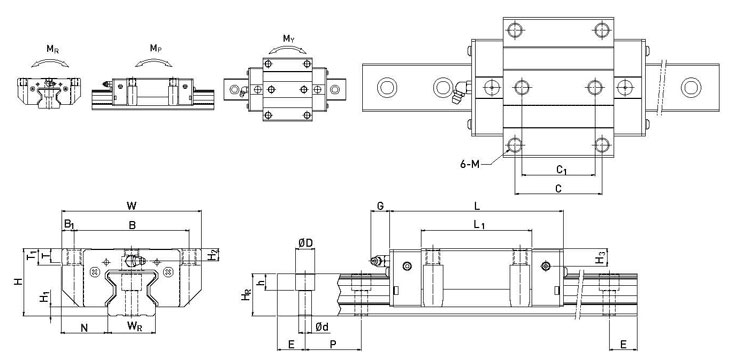

型号
组件尺寸
(mm)
滑块尺寸
(mm)
滑轨尺寸
(mm)
H
H1
N
W
B
B1
C
C1
L1
L
G
M
T
T1
H2
H3
WR
HR
D
h
d
P
E
RGW 25CC
36
5.5
23.5
70
57
6.5
45
40
64.5
97.9
12
M8
9.5
 10
6.2
6
23
23.6
11
9
7
30
20
RGW 25HC
81
114.4
RGW 35CC
48
6.5
33
100
82
9
62
52
79
124
12
M10
12
 13
9
12.6
34
30.2
14
12
9
40
20
RGW 35HC
106.5
151.5
RGW 45CC
60
8
37.5
120
100
10
80
60
106
153.2
12.9
M12
14
 15
10
14
45
38
20
17
14
52.5
22.5
RGW 45HC
139.8
187
RGW 55CC
70
10
43.5
140
116
12
95
70
125.5
183.7
12.9
M14
16
 17
12
17.5
53
44
23
20
16
60
30
RGW 55HC
173.8
232

型号

滑轨的
固定螺栓尺寸
(mm)

基本动
额定负荷
C(kN)
基本静
额定负荷
C0(kN)
容许静力矩
重量
MR
(kN-m)
MP
(kN-m)
MY
(kN-m))
滑块
(kg)
滑轨
(kg/m)
RGW 25CC
M6×20
27.7
57.1
0.758
0.605
0.605
0.67
3.08
RGW 25HC
33.9
73.4
0.975
0.991
0.991
0.86
RGW 35CC
M8×25
57.9
105.2
2.17
1.44
1.44
1.61
6.06
RGW 35HC
73.1
142
2.93
2.6
2.6
2.21
RGW 45CC
M12×35
92.6
178.8
4.52
3.05
3.05
3.22
9.97
RGW 45HC
116
230.9
6.33
5.47
5.47
4.41
RGW 55CC
M14×45
130.5
252
8.01
5.4
5.4
5.18
13.98
RGW 55HC
167.8
348
11.15
10.25
10.25
7.34
