EGH15SA滑块|HIWIN滑块轴承、EGH15CA滑块|HIWIN滑块轴承、EGH20SA滑块|HIWIN滑块轴承、EGH20CA滑块|HIWIN滑块轴承

发布时间：2026-05-07

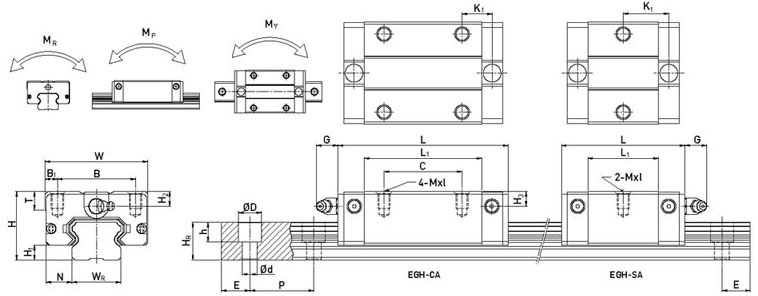

型号
组件尺寸
(mm)
滑块尺寸
(mm)
滑轨尺寸
(mm)
H
H1
N
W
B
B1
C
L1
L
G
M×l
K1
T
H2
H3
WR
HR
D
h
d
P
E
EGH 15SA
24
4.5
9.5
34
26
4
-
23.1
40.7
5.7
M4×6
14.8
6
5.5
6
15
12.5
6
4.5
3.5
60
20
EGH 15CA
26
39.8
57.4
10.15
EGH 20SA
28
6
11
42
32
5
-
29
50.6
12
M5×7
18.75
7.5
6
6
20
15.5
9.5
8.5
6
60
20
EGH 20CA
32
48.1
69.7
12.3
EGH 25SA
33
7
12.5
48
35
6.5
-
35.5
61.1
12
M6×9
21.9
8
8
8
23
18
11
9
7
60
20
EGH 25CA
35
59
84.6
16.15
EGH 30SA
42
10
16
60
40
10
-
41.5
71.5
12
M8×12
26.75
9
8
9
28
23
11
9
7
80
20
EGH 30CA
40
70.1
100.1
21.05

型号

滑轨的
固定螺栓尺寸
(mm)

基本动
额定负荷
C(kN)
基本静
额定负荷
C0(kN)
容许静力矩
重量
MR
(kN-m)
MP
(kN-m)
MY
(kN-m))
滑块
(kg)
滑轨
(kg/m)
EGH 15SA
M3×16
5.35
9.40
0.08
0.04
0.04
0.09
1.25
EGH 15CA
7.83
16.19
0.13
0.10
0.10
0.15
EGH 20SA
M5×16
7.23
12.74
0.13
0.06
0.06
0.15
2.08
EGH 20CA
10.31
21.13
0.22
0.16
0.16
0.24
EGH 25SA
M6×20
11.40
19.50
0.23
0.12
0.12
0.25
2.67
EGH 25CA
16.27
32.40
0.38
0.32
0.32
0.41
EGH 30SA
M6×25
16.42
28.10
0.40
0.21
0.21
0.45
4.35
EGH 30CA
23.70
47.46
0.68
0.55
0.55
0.76
