AGH25SA滑块|HIWIN滑块轴承、AGH25CA滑块|HIWIN滑块轴承、AGH30SA滑块|HIWIN滑块轴承、AGH30CA滑块|HIWIN滑块轴承

发布时间：2026-06-25

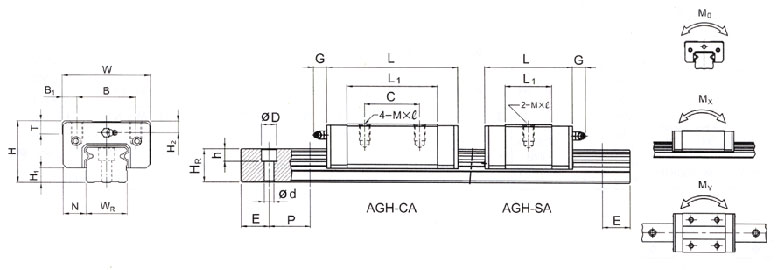

型号
组件尺寸
(mm)
滑块尺寸
(mm)
滑轨尺寸
(mm)
H
H1
N
W
B
B1
C
L1
L
G
M×l
T
H2
WR
HR
D
h
d
P
E
AGH 15SA
24
5
9.5
34
26
4
-
22.8
41
5.7
M4×7
6
5.5
15
13.5
6
4.5
3.5
60
20
AGH 15CA
26
38.7
56.9
AGH 20SA
28
6
11
42
32
5
-
26.2
48
12
M5×8
7.5
6
20
15.5
9.5
8.5
6
60
20
AGH 20CA
32
44.1
65.9
AGH 25SA
33
7
12.5
48
35
6.5
-
34.5
58.7
12
M6×9
8
7
23
18.5
11
9
7
60
20
AGH 25CA
35
58.3
82.5
AGH 30SA
42
10
16
60
40
10
-
36.6
66.4
12
M8×12
9
8
28
24
11
9
7
80
20
AGH 30CA
40
65.2
95

型号

滑轨的
固定螺栓尺寸
(mm)

基本动
额定负荷
C(kgf)
基本静
额定负荷
C0(kgf)
容许静力矩
重量
MR
(kgf-m)
MP
(kgf-m)
MY
(kgf-m))
滑块
(kg)
滑轨
(kg/m)
AGH 15SA
M3×16
440
590
4.8
2.3
2.3
0.12
1.43
AGH 15CA
640
1010
8.3
6.3
6.3
0.17
AGH 20SA
M5×16
650
920
10.1
4.5
4.5
0.2
2.16
AGH 20CA
970
1450
15.9
10.4
10.4
0.29
AGH 25SA
M6×20
1080
1330
16.7
7.8
7.8
0.34
2.95
AGH 25CA
1550
2290
28.7
21.1
21.1
0.51
AGH 30SA
M6×25
1550
2030
30.8
14.0
14.0
0.57
4.76
AGH 30CA
2470
3390
51.3
35.5
35.5
0.88
