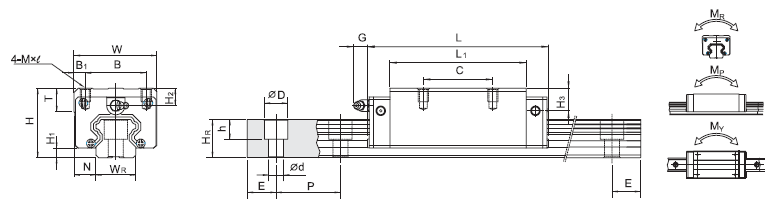

型号
组件尺寸
(mm)
滑块尺寸
(mm)
滑轨尺寸
(mm)
H
H1
N
W
B
B1
C
L1
L
G
M×l
T
H2
WR
HR
D
h
d
P
E
LGH 15CA
28
4.5
9.5
34
26
4
26
39.6
60.6
5.3
M4×5
6
8.5
15
14
7.5
5.3
4.5
60
20
LGH 20CA
30
5
12
44
32
6
36
52.7
77.3
12
M5×6
8
7.1
20
15
9.5
8.5
6
60
20
LGH 20HA
50
67
91.6
LGH 25CA
40
6.5
12.5
48
35
6.5
35
57.6
85.6
12
M6×8
8
11.2
23
20
11
9
7
60
20
LGH 25HA
50
76.6
104.6
LGH 30CA
45
7
16
60
40
10
40
72
104.4
12
M8×10
8
10.5
28
23
14
12
9
80
20
LGH 30HA
60
93
125.4
LGH 35CA
55
8
18
70
50
10
50
82
118.4
12
M8×12
10
15
34
25
14
12
9
80
20
LGH 35HA
72
105.8
142.2
LGH 45CA
70
10
20.5
86
60
13
60
99.6
139.2
12.9
M10×17
15
21
45
32
20
17
14
105
22.5
LGH 45HA
80
133
172.6
LGH 55CA
80
13
23.5
100
75
12.5
75
115.8
164.8
12.9
M12×18
17
22
53
40
23
20
16
120
30
LGH 55HA
95
154.7
203.7
LGH 65CA
90
19
31.5
126
76
25
70
138.6
197.6
12.9
M16×20
25
20
63
48
26
22
18
150
35
LGH 65HA
120
187.6
246.6

型号

滑轨的
固定螺栓尺寸
(mm)

基本动
额定负荷
C(kgf)
基本静
额定负荷
C0(kgf)
容许静力矩
重量
MR
(kgf-m)
MP
(kgf-m)
MY
(kgf-m))
滑块
(kg)
滑轨
(kg/m)
LGH 15CA
M4×16
1040
1680
13.5
11.0
1.0
0.21
1.47
LGH 20CA
M5×16
1650
2670
28.1
22.8
22.8
0.37
2.08
LGH 20HA
2100
3400
35.7
35.9
35.9
0.46
LGH 25CA
M6×20
2410
3880
46.6
37.2
37.2
0.59
3.15
LGH 25HA
3210
5180
62.2
63.6
63.6
0.78
LGH 30CA
M8×25
3380
5460
79.3
61.2
61.2
1.04
4.41
LGH 30HA
4400
7100
103.0
100.4
100.4
1.33
LGH 35CA
M8×25
4180
6740
118.1
84.4
84.4
1.72
5.93
LGH 35HA
5430
8770
153.5
138.4
138.4
2.24
LGH 45CA
M12×35
6020
9710
223.5
141.3
141.3
3.16
10.01
LGH 45HA
8430
13600
312.8
259.2
259.2
4.28
LGH 55CA
M14×45
9740
13220
384.9
280.9
280.9
5.30
14.82
LGH 55HA
11810
18510
489.8
442.7
442.7
6.40
LGH 65CA
M16×50
14940
20990
738.8
579.0
579.0
7.30
21.26
LGH 65HA
18290
27290
1007.5
1040.8
1040.8
9.30
