满装圆柱滚子轴承LSL192316、LSL192317、LSL192318、LSL192319、LSL192320、LSL192322、LSL192324、LSL192326、LSL192328、LSL192330

发布时间：2025-05-03

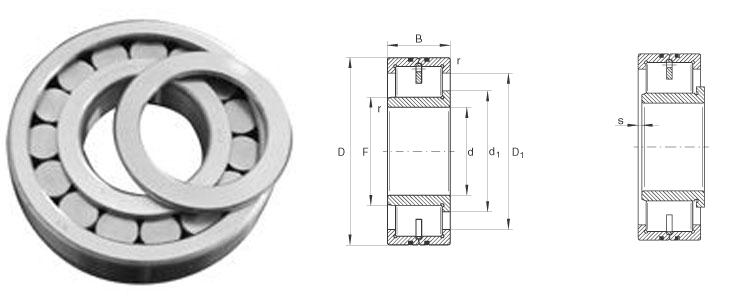

d	D	B	C	Fw	Ew	Rmin	M (kg)	CrKN	CorKN	n (1/min)	Bearing Code	D1	D2	D3	D4
80	170	58	58	94		2.1	6.1	475	495	8800	LSL192316	92	92	155	155
85	180	60	60	100		3	7.3	500	520	8300	LSL192317	97	97	165	165
90	190	64	64	105.26		3	8.6	590	610	7900	LSL192318	102	102	175	175
95	200	67	67	114.66		3	10	610	660	7500	LSL192319	110	110	185	185
100	215	73	73	119.3		3	12.8	750	790	6300	LSL192320	115	115	200	200
110	240	80	80	135.5		3	17.3	880	940	5700	LSL192322	130	130	220	220
120	260	86	86	147.39		3	22	1060	1150	5300	LSL192324	140	140	240	240
130	280	93	93	157.9		4	27.2	1190	1300	4900	LSL192326	150	150	260	260
140	300	102	102	168.45		4	34	1340	1470	4550	LSL192328	160	160	280	280
150	320	108	108	182.49		4	40.7	1420	1780	4250	LSL192330	170	170	300	300
160	340	114	114	196.38		4	48.1	1600	2020	4000	LSL192332	180	180	320	320
170	360	120	120	230.55		4	57.5	1750	2230	3750	LSL192334	190	190	340	340
180	380	126	126	221.56		4	67.4	1850	2440	3550	LSL192336	200	200	360	360
190	400	132	132	224.43		5	78.1	2110	2750	3400	LSL192338	210	210	380	380
200	420	138	138	238.45		5	89.3	2350	3050	3250	LSL192340	220	220	400	400
220	460	145	145	266.71		5	108	2500	3200	2950	LSL192344	240	240	440	440
240	500	155	155	280.55		5	138.6	2750	3550	2700	LSL192348	260	260	480	480
260	540	165	165	315.6		6	168	3400	4400	2500	LSL192352	280	280	520	520
280	580	175	175	333.1		6	206.6	3700	4850	2330	LSL192356	300	300	560	560
300	620	185	185	350.93		7.5	253	4150	5600	2170	LSL192360	320	320	600	600
