英制圆锥滚子轴承L44643/L44610、KM84548/KM84510、K15579X/K15520、L44649/L44610、K15106/K15250X、K02872/K02820、L45449/L45410、K14118/K14283、LM67048/LM67010

发布时间：2025-05-04

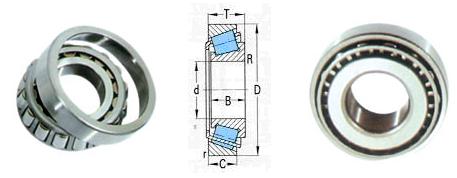

                     圆锥滚子轴承
基 本 尺 寸 mm  现 代 号  作 用 点 基本额定负荷 kN  极 限 转 速 rpm  计 算 系 数 mm  重 量
Principal dimension  Function point  Basic load ratings  Speed ratings Weight
d  D  T  Designations  a  动dyc  静stc  脂润滑 Grease  油润滑 Oil  Calculation Factor  Kg
mm  英寸Inch  mm  英寸Inch  mm  英寸Inch  Cr  Cor
266.7 10.5 393.7 15.5 130.175 5.125 KEE275105/K275155 75 700 1400 750 1000 0.4 1.49 0.82 27.8
273.05 10.75 393.7 15.5 130.175 5.125 KEE275108/K275155 75 700 1400 750 1000 0.4 1.49 0.82 26.3
288.925 11.375 406.4 16 77.788 3.0625 M255449/M255410 72 1140 1900 670 900 0.34 1.78 0.98 30.5
304.8 12 393.7 15.5 50.8 2 KL357049/KL357010 64 530 1210 670 900 0.36 1.68 0.92 14.6
304.8 12 406.4 16 63.5 2.5 LM757049/LM757010 79 2000 2800 670 900 0.44 1.38 0.76 21.2
607.72 23.926 787.4 31 93.662 3.6875 EE649239/649310 124 2000 2800 340 450 0.38 1.58 0.87 108
760* 29.9213 889 35 88.9 3.5 L183448/L183410 127 2000 3200 260 360 0.32 1.88 1.04 93.5
762 30 889 35 88.9 3.5 L183449/L183410 127 2000 3200 260 360 0.32 1.88 1.04 91.9
17.462 0.6875 39.878 1.57 13.843 0.545 LM11749/LM11710 9 25.6 28 9000 13000 0.29 2.1 1.15 0.0758
19.05 0.75 45.237 1.781 15.494 0.61 LM11949/LM11910 10 28 32 8500 1200 0.3 2 1.1 0.123
19.05 0.75 49.225 1.938 21.209 0.835 K09067/K09196 15 34 37 8500 1200 0.27 2.26 1.24 0.195
19.05 0.75 49.225 1.938 23.02 0.9063 K09074/K09194 16 34 37 8500 1200 0.27 2.26 1.24 0.201
21.43 0.8437 50.005 1.9687 17.526 0.69 M12649/M12610 11 43 55 8000 11000 0.28 2.16 1.19 0.169
21.43 0.8437 50.005 1.9687 17.526 0.69 K2M12649/K2M12610 11 56 72 8000 11000 0.28 2.16 1.19 0.169
22 0.8653 45.237 1.781 15.494 0.61 LM12749/LM12710 13 32.5 40 8000 11000 0.31 1.96 1.08 0.116
25.4 1 50.292 1.98 14.224 0.56 L44643/L44610 11 26.8 34 7500 10000 0.37 1.6 0.88 0.128
25.4 1 57.15 2.25 19.431 0.765 KM84548/KM84510 16 38 49 7500 10000 0.55 1.1 0.6 0.237
26* 　 57.15 2.25 17.462 0.6875 K15579X/K15520 19 34.5 43.5 7500 10000 0.35 1.73 0.95 0.207
26.988 1.0625 50.292 1.98 14.224 0.56 L44649/L44610 11 26.8 34 7500 10000 0.37 1.6 0.88 0.126
26.988 1.0625 63.5 2.5 20.638 0.8125 K15106/K15250X 15 42 53 7500 10000 0.35 1.71 0.94 0.316
28.575 1.125 73.025 2.875 22.225 0.875 K02872/K02820 19 50 65.5 7000 9000 0.45 1.32 0.73 0.825
29 1.1417 50.292 1.98 14.224 0.56 L45449/L45410 11 26.8 34 7000 9000 0.37 1.62 0.89 0.118
30 1.811 72.085 2.838 22.385 0.8813 K14118/K14283 17 42 55.5 7000 9000 0.38 1.57 0.86 0.202
31.75 1.25 59.131 2.328 15.875 0.625 LM67048/LM67010 13 40 50 6300 8500 0.41 1.46 0.8 0.175
31.75 1.25 62 2.4409 18.161 0.715 K15123/K15245 13 51.5 62 6300 8500 0.35 1.71 0.94 0.242
33.338 1.3125 68.262 2.6875 22.225 0.875 KM88048/KM88010 19 50.9 70.4 6300 8500 0.55 1.1 0.6 0.382
34.925 1.375 65.088 2.5625 18.034 0.71 KLM48548/KLM48510 14 44.5 60 5600 7500 0.38 1.59 0.88 0.26
34.925 1.375 65.088 2.5625 21.082 0.83 KLM48548A/KLM48511A 14 44.5 60 5600 7500 0.38 1.59 0.88 0.291
34.925 1.375 69.012 2.717 19.845 0.7813 K14138A/K14274 14 42 55.5 5600 7500 0.38 1.57 0.86 0.32
34.925 1.375 73.025 2.875 23.812 0.9375 25877/25821 14 65 85 5600 7500 0.29 2.07 1.14 0.475
35* 　 59.131 2.328 15.875 0.625 L68149/L68110 13 31 36 5600 7500 0.42 1.44 0.79 0.166
38.1 1.5 65.088 2.5625 18.034 0.71 KLM29749/KLM29710 12 40 57 5000 7000 0.33 1.8 0.99 0.237
38.1 1.5 72.238 2.844 20.638 0.8125 K16150/K16284 17 45 61 5000 7000 0.4 1.49 0.82 0.345
38.1 1.5 76.2 3 23.812 0.9375 K2788/K2720 17 82 110 5000 7000 0.3 1.98 1.09 0.507
38.1 1.5 79.375 3.125 29.37 1.1563 K3490/K3420 20 79.1 104 5000 7000 0.37 1.64 0.9 0.653
38.1 1.5 82.55 3.25 29.37 1.1563 HM801346X/HM801310 25 89 127 5000 7000 0.55 1.1 0.6 0.77
38.1 1.5 88.5 3.4843 26.988 1.0625 418/414 18 90.5 113 5000 7000 0.26 2.28 1.25 0.843
39.688 1.5625 73.025 2.875 23.812 0.9375 K2789/K2735X 17 82 110 4500 6000 0.3 1.98 1.09 0.413
41* 　 68*  2.6772 17.5 0.689 KLM300849/KLM300811 14 46.5 60 4500 6000 0.35 1.72 0.95 0.241
41.275 1.625 73.431 2.891 19.558 0.77 LM501349/LM501310 15 61 73.5 4500 6000 0.4 1.5 0.83 0.353
41.275 1.625 73.431 2.891 21.43 0.8437 KLM501349/KLM501314 17 61 73.5 4500 6000 0.4 1.5 0.83 0.36
41.275 1.625 80.167 3.1562 29.37 1.1563 K3384/K3320 17 88 114 4500 6000 0.27 2.2 1.21 0.63
41.275 1.625 82.55 3.25 26.543 1.045 KM802048/KM802011 23 76.5 105 4500 6000 0.55 1.1 0.6 0.623
41.275 1.625 87.312 3.4375 30.162 1.1875 K3585/K3525 24 117 175 4500 6000 0.53 1.14 0.62 0.861
42.875 1.688 82.931 3.265 26.988 1.0625 K25577/K25523 19 71 101 4500 6000 0.33 1.79 0.99 0.646
44.45 1.75 82.931 3.265 23.812 0.9375 K25580/K25520 18 70 100 4500 6000 0.33 1.79 0.99 0.573
44.45 1.75 90.119 3.548 23 0.9055 K355X/K352 18 65 85 4500 6000 0.31 1.96 1.08 0.668
45.242 1.7812 73.431 2.891 19.558 0.77 LM102949/LM102910 14 47 70 4500 6000 0.31 1.97 1.08 0.318
45.618 1.796 82.931 3.265 23.812 0.9375 25590/25520 18 70 100 4500 6000 0.33 1.79 0.99 0.556
45.618 1.796 82.931 3.265 26.988 1.0625 K25590/K25523 18 70 100 4500 6000 0.33 1.79 0.99 0.589
