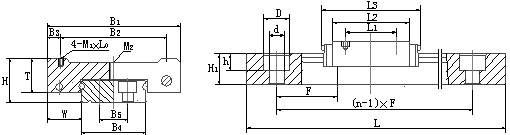

滑块HRB7BA,HRB9BA,HRB12BA,HRB15BA不锈钢滑块

型号

导轨副尺寸

滑块尺寸

导轨尺寸

额定动载

额定静载

额定力矩

H

W

B₁

B₂

B₃

T

L₁

L₂

L₃

M₁×L₀

M₂

H₁

B₄

B₅

d×D×h

F

单根
大长度L_max

C
(KN)

C₀
(KN)

M_A
(N﹒m)

M_B
(N﹒m)

M_C
(N﹒m)

BEARINGPOWER7BA

8

5

17

12

2.5

6.5

8

14

25

M2×2.5

-

4.7

7

0

2.5×4.2×2.3

15

300

1.26

1.07

2.62

2.62

4.51

BEARINGPOWER7BAK

9

5.5

25

-

-

7

12

20.5

30

-

2-M4

5.2

14

0

3.5×6×3.2

30

500

1.62

1.61

5.54

5.54

13.52

BEARINGPOWER9BA

10

5.5

20

15

2.5

7.8

13

18

32

M2×2.5

M3

5.5

9

0

2.6×4.5×3

20

500

1.71

1.8

6.58

6.58

10.8

BEARINGPOWER9BAK

12

6

30

21

4.5

7.8

12

27

41

M3×3

M3

7.5

18

0

3.6×6×4.5

25

600

2.56

2.7

14.8

14.8

32.4

BEARINGPOWER12BA

13

7.5

27

20

3.5

10

15

23

37

M3×3.5

M3

7.5

12

0

3.5×6×4.5

25

600

3.48

3.5

13.6

13.6

24.3

BEARINGPOWER12BAK

14

8

40

28

6

10

15

32.4

46.4

M3×3.5

M4

8.5

24

0

4.5×8×4.5

40

600

4.45

4.6

28.8

28.8

73

BEARINGPOWER15BA

16

8.5

32

25

3.5

12

20

25,7

43

M3×4

M4

9.5

15

0

3.5×6×4.5

40

600

5.4

5.5

25.4

25.4

47.3

BEARINGPOWER15BAK

16

9

60

45

7.5

12

20

41.3

55.3

M4×4.5

M5

9.5

42

23

4.5×8×4.5

40

800

7.5

8.5

68.6

68.6

70.3
