重载荷深沟球轴承 — 搜轴承黑板报
搜轴承 -- 黑板报 -- 重载荷深沟球轴承

重载荷深沟球轴承

发布时间：2025-06-20

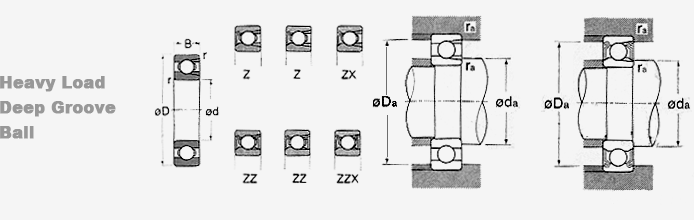

Boundary Dimensions
(mm)		 Basic Load Rating
(kN)		 Limiting Speed
(rpm)		 Bearing Designation Shoulder DiMensions1)
(mm)		 Mass
(kg)
Approx
d D B r
(min.)		 Cr Cor Grease Oil Open Type With Steel
Shields		 da Da ra
(min.)(max.) (max.) (max.)
17 40 12 0.6 10.0 6.60 17000 21000 M(BL)6203 　- 21 -　 36 0.6 0.066
20 47 14 1 13.4 9.15 14000 17000 M(BL)6204 　- 25 -　 42 1 0.108
25 52 15 1 14.4 10.5 13000 15000 M(BL)6205 M(BL)6205 ZZ 30 31 47 1 0.130
62 17 1.1 21.5 15.5 11000 13000 M(BL)6305 M(BL)6305 ZZ 31.5 34.5 55.5 1 0.236
30 62 16 1 21.1 16.3 11000 13000 M(BL)6206 M(BL)6206 ZZ 35 37 57 1 0.204
72 19 1.1 27.9 20.7 9600 12000 M(BL)6306 M(BL)6306 ZZ 36.5 41.5 75.5 1 0.353
35 72 17 1.1 27.8 22.2 9200 11000 M(BL)6207 M(BL)6207 ZZ 41.5 44 65.5 1 0.295
80 21 1.5 37.0 28.9 8500 10000 M(BL)6307 M(BL)6307 ZZ 43 46.5 72 1.5 0.470
40 80 18 1.1 33.1 27.8 8300 10000 M(BL)6208 M(BL)6208 ZZ 46.5 49.5 73.5 1 0.377
90 23 1.5 46.4 35.8 7700 9200 M(BL)6308B M(BL)6308B ZZ 48 52.5 82 1.5 0.646
45 85 19 1.1 37.2 31.6 7800 9400 M(BL)6209 M(BL)6209 ZZ 51.5 54 78.5 1 0.420
100 25 1.5 51.1 40.6 6800 8200 M(BL)6309 M(BL)6309 ZZ 53 59 92 1.5 0.854
50 90 20 1.1 38.9 34.9 7100 8500 M(BL)6210 M(BL)6210 ZZ 56.5 59.5 83.5 1 0.476
110 27 2 64.9 52.6 6100 7300 M(BL)6310 M(BL)6310 ZZ 59 66 101 2 1.10
55 100 21 1.5 48.1 44.1 6300 7600 M(BL)6211 M(BL)6211 ZZ 63 66 92 1.5 0.626
120 29 2 79.4 67.4 5600 6700 M(BL)6311 M(BL)6311 ZZ 64 72 111 2 1.42
60 110 22 1.5 58.2 54.3 5700 6900 M(BL)6212 M(BL)6212 ZZ 68 73 102 1.5 0.815
130 31 2.1 90.8 78.3 5200 6200 M(BL)6312 M(BL)6312 ZZ 71 78 119 2 1.76
65 120 23 1.5 63.5 60.1 5400 6400 M(BL)6213 M(BL)6213 ZZ 73 78 112 1.5 1.02
140 33 2.1 103 89.9 4800 5800 M(BL)6313 M(BL)6313 ZZ 76 84 129 2 2.15
70 125 24 1.5 69.0 66.1 5100 6100 M(BL)6214 M(BL)6214 ZZ 78 82 117 1.5 1.11
150 35 2.1 115 102 4500 5400 M(BL)6314 M(BL)6314 ZZ 81 89 139 2 2.65
75 130 25 1.5 74.8 72.4 4800 5800 M(BL)6215 M(BL)6215 ZZ 83 86.5 122 1.5 1.22
160 37 2.1 126 116 4200 5000 M(BL)6315 M(BL)6315 ZZX 86 95 149 2 3.12
80 140 26 2 84.2 84.8 4500 5400 M(BL)6216 M(BL)6216 ZZ 89 92 131 2 1.45
170 39 2.1 136 130 3900 4700 M(BL)6316 M(BL)6316 ZZX 91 102 159 2 3.71
85 150 28 2 93.1 92.9 4200 5000 M(BL)6217 M(BL)6217 ZZ 94 99 141 2 1.85
180 41 3 147 145 3700 4400 M(BL)6317 M(BL)6317 ZZX 98 108 167 2.5 4.37
90 160 30 2 107 107 3900 4700 M(BL)6218 M(BL)6218 ZZX 99 105 151 2 2.22
190 43 3 158 161 3500 4200 M(BL)6318 M(BL)6318 ZZX 103 114 177 2.5 5.08
95 170 32 2.1 121 123 3700 4400 M(BL)6319 M(BL)6219 ZZX 106 112 159 2 2.71
200 45 3 169 178 3300 4000 M(BL)6319 M(BL)6319 ZZX 108 121 187 2.5 5.86
100 180 34 2.1 136 140 3400 4100 M(BL)6220 M(BL)6220 ZZX 111 120 169 2 3.25
215 47 3 192 212 3000 3600 M(BL)6320 M(BL)6320 ZZX 113 130 202 2.5 7.26
