203SZZ-10叉车门架滚轮轴承
发布时间：2026-03-24
| 轴承型号 |
型号 |
尺寸（mm) | 轴承型号 | |||||||
|
内径 d |
外径 D |
外圈宽度 C |
内圈宽度 B |
圆角半径 R |
内圈偏移 E | |||||

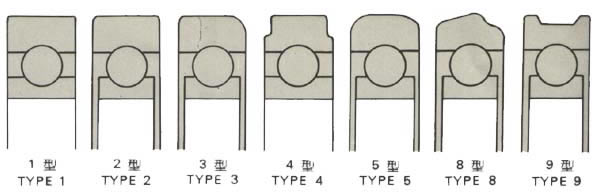

| Ⅰ | Ⅱ | Ⅲ | Ⅳ | |||||||
| 203SZZ-10 | 1 | 17.00 | 50.80 | 12.00 | 12.00 | |||||
| 204SZZ-20 | 2 | 20.00 | 57.15 | 18.115 | 14.00 | 4.11 | ||||
| 250SZZ-29 | 1 | 25.40 | 57.15 | 22.225 | 25.40 | 1.02 | ||||
| 206SZZ-16 | 2 | 30.00 | 76.20 | 28.575 | 16.00 | 6.30 | MG206-2RS-1 | |||
| MG206FFA | 2 | 30.00 | 81.28 | 25.40 | 19.586 | 3.00 | 2.90 | |||
| 206MZZ-1 | MG206FFH | 3 | 30.00 | 79.375 | 28.575 | 16.586 | 6.35 | 6.02 | ||
| 206MZZ | 3 | 30.00 | 86.36 | 28.575 | 16.586 | 6.35 | 6.02 | |||
| 207SZZ-20 | 4 | 35.00 | 70.358 | 17.00 | 17.00 | |||||
| 207MZZ-1 | MG207FFA | 2 | 35.00 | 81.864 | 27.10 | 17.00 | 3.00 | 4.98 | X485 | |
| MG207FFR | 1 | 35.00 | 88.392 | 31.75 | 17.00 | 1.52 | 7.37 | |||
| 208SZZ-15 | MG207FFH | 8 | 35.00 | 91.237 | 31.877 | 21.00 | 1.02 | 5.16 | MG208-2RS-1 | |
| 208SZZ-9 | 3 | 35.00 | 101.752 | 30.163 | 21.00 | 9.53 | ||||
| 208SZZ-16 | MG207FFK | 8 | 35.00 | 110.287 | 30.277 | 21.00 | 4.67 | |||
| MG208FFA | 2 | 40.00 | 100.838 | 25.40 | 19.588 | 3.00 | 2.54 | |||
| 209MZZ-1 | MG209DD | 2 | 45.00 | 100.965 | 28.473 | 19.00 | 3.00 | 4.75 | ||
| 210MZZ-1 | 1 | 50.80 | 103.276 | 32.542 | 32.542 | |||||
| 210SZZ-2 | 1 | 101.092 | 27.00 | 27.00 | ||||||
