发布时间:2019-10-17

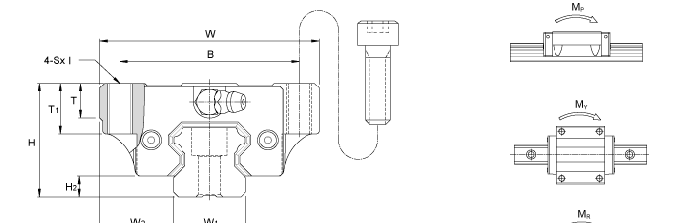

型號 | 外型尺寸 | 滑塊尺寸 | ||||||||||||||
高度 H |
寬度 W |
長度 L |
W2 | H2 | B | C | L1 | T | T1 | N | G | K | d1 | 油嘴規格 | ||
MSA 15A | 24 | 47 | 56.3 | 16 | 4.2 | 38 | 30 | M5x11 | 39.3 | 7 | 11 | 4.3 | 7 | 3.2 | 3.3 | G-M4 |
MSA 20 A MSA 20 LA |
30 | 63 | 72.9 88.8 |
21.5 | 5 | 53 | 40 | M6x10 | 51.3 67.2 |
7 | 10 | 5 | 12 | 5.8 | 3.3 | G-M6 |
MSA 25 A MSA 25 LA |
36 | 70 | 81.6 100.6 |
23.5 | 6.5 | 57 | 45 | M8x16 | 59 78 |
11 | 16 | 6 | 12 | 5.8 | 3.3 | G-M6 |
MSA 30 A MSA 30 LA |
42 | 90 |
97 |
31 | 8 | 72 | 52 | M10x18 | 71.4 93.6 |
11 | 18 | 7 | 12 | 6.5 | 3.3 | G-M6 |
MSA 35 A MSA 35 LA |
48 | 100 | 111.2 136.6 |
33 | 9.5 | 82 | 62 | M10x21 | 81 106.4 |
13 | 21 | 8 | 11.5 | 8.6 | 3.3 | G-M6 |
MSA 45 A MSA 45 LA |
60 | 120 | 137.7 169.5 |
37.5 | 10 | 100 | 80 | M12x25 | 102.5 134.3 |
13 | 25 | 10 | 13.5 | 10.6 | 3.3 | G-PT1/8 |

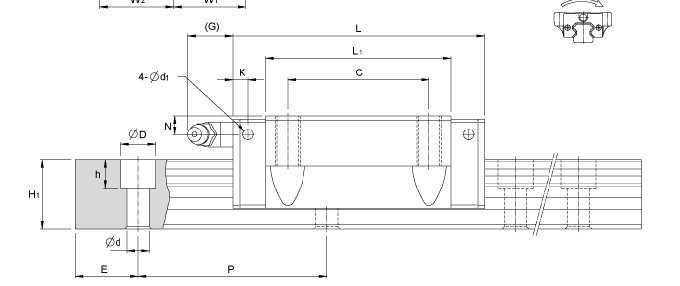

型號 | 滑軌尺寸 | 基本額定負荷 | 容許淨力矩 | 重量 | ||||||||
寬度 W1 |
高度 H1 |
節距 P |
E std. |
D x h x d | 動負荷C kN |
靜負荷C0 kN |
MP kN-m |
MY kN-m |
MR kN-m |
滑塊 kg |
滑軌 kg/m | |
MSA 15A | 15 | 15 | 60 | 20 | 7.5 x 5.3 x 4.5 | 11.8 | 18.9 | 0.12 | 0.12 | 0.14 | 0.18 | 1.5 |
MSA 20 A MSA 20 LA |
20 | 18 | 60 | 20 | 9.5 x 8.5 x 6 | 19.2 23.3 |
29.5 39.3 |
0.23 0.39 |
0.23 0.39 |
0.29 0.38 |
0.4 0.52 |
2.4 |
MSA 25 A MSA 25 LA |
23 | 22 | 60 | 20 | 11 x 9 x 7 | 28.1 34.4 |
42.4 56.6 |
0.39 0.67 |
0.39 0.67 |
0.48 0.63 |
0.62 0.82 |
3.4 |
MSA 30 A MSA 30 LA |
28 | 26 | 80 | 20 | 14 x 12 x 9 | 39.2 47.9 |
57.8 77.0 |
0.62 1.07 |
0.62 1.07 |
0.79 1.05 |
1.09 1.43 |
4.8 |
MSA 35 A MSA 35 LA |
34 | 29 | 80 | 20 | 14 x 12 x 9 | 52.0 63.6 |
75.5 100.6 |
0.93 1.60 |
0.93 1.67 |
1.25 1.67 |
1.61 2.11 |
6.6 |
MSA 45 A MSA 45 LA |
45 | 38 | 105 | 22.5 | 20 x 17 x 14 | 83.8 102.4 |
117.9 157.3 |
1.81 3.13 |
1.81 3.13 |
2.57 3.43 |
2.98 3.9 |
11.5 |
