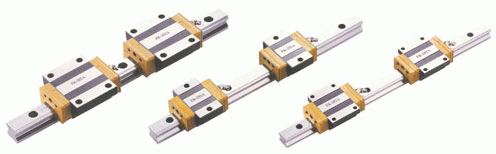

FL-15CA、FL-20CA、FL-55CA、FL-30CA、FL-35CA、FL-45CA滑块轴承

型号

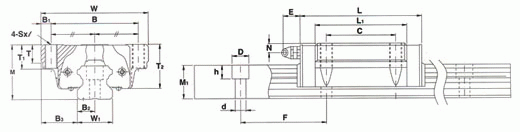

Width
(W)

Length
(L)

Height
(M)

B

B1

L1

C

T

T1

T2

Sx/

N

E

润滑油接管

FL-15CA

47

66.5

24

38

4.5

38.5

30

7

11

19.5

M5×11

4.5

5.5

M4×0.7P

FL-20CA

63

80.5

30

53

5

50.5

40

10

10

24.5

M6×10

5

12

M6×1.0P

FL-20HA

63

96.5

30

53

5

66.5

40

10

10

24.5

M6×10

5

12

M6×1.0P

FL-25CA

70

89.5

36

57

6.5

59.5

45

12

16

29.0

M8×16

6

12

M6×1.0P

FL-25HA

70

108.5

36

57

6.5

78.5

45

12

16

29.0

M8×16

6

12

M6×1.0P

FL-30CA

90

103.5

42

72

9

70.5

52

12

18

34.0

M10×18

7

12

M6×1.0P

FL-30HA

90

125.5

42

72

9

92.5

52

12

18

34.0

M10×18

7

12

M6×1.0P

FL-35CA

100

115.5

48

82

9

80.5

62

13

21

39.0

M10×21

8

12

M6×1.0P

FL-35HA

100

140.5

48

82

9

105.5

62

13

21

39.0

M10×21

8

12

M6×1.0P

FL-45CA

120

137

60

100

10

98

80

14

25

48.5

M12×15

10

16

1/8 PT

FL-45HA

120

169

60

100

10

130

80

14

25

48.5

M12×15

10

16

1/8 PT

Width
(W1)

Height
(M1)

Pitch
(F)

B2

B3

dxDxh

C
kgf

Co
kgf

MA
kgf-M

MB
kgf-M

MC
kgf-M

Block
kgf

Rail
kgf

15

15

60

7.5

16

4.5×7.5×5.5

850

1380

7.3

7.3

10.1

0.2

1.7

20

18

60

10

21.5

6×9.5×8.5

1410

2430

15.9

15.9

23.7

0.35

2.5

20

18

60

10

21.5

6×9.5×8.5

2170

3240

27.5

27.5

31.6

0.47

2.5

23

22

60

11.5

23.5

7×11×9

2030

3510

27.5

27.5

40.0

0.59

3.6

23

22

60

11.5

23.5

7×11×9

2770

4680

46.8

46.8

51.8

0.75

3.6

28

26

80

14

31

9×14×12

2860

4770

43.8

43.8

65.8

1.1

5.1

28

26

80

14

31

9×14×12

3800

6370

74.4

74.4

87.7

1.3

5.1

34

29

80

17

33

9×14×12

3800

6230

65.4

65.4

104.7

1.6

6.9

34

29

80

17

33

9×14×12

5120

8310

111.1

111.1

139.9

2.0

6.9

45

38

105

22.5

37.5

14×20×17

6120

9750

127.6

127.6

213.2

2.8

11.0

45

38

105

22.5

37.5

14×20×17

8200

13000

217.1

217.1

284.1

3.3

11.0
