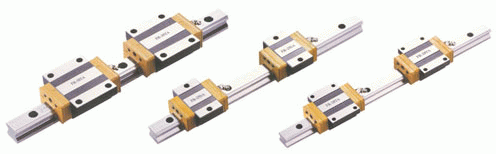

FR-15TA、FR-20TA、FR-25TA、FR-30TA、FR-35TA滑块轴承

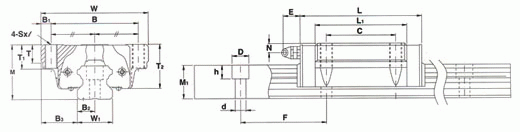

型号

Width
(W)

Length
(L)

Height
(M)

B

B1

L1

C

T

T1

T2

Sxl

N

E

润滑油接管

FR-15TA

52

67.5

24

41

5.5

39.5

26

7

11

19.5

M5x11

4

5.5

M4×0.7P

FR-15SA

52

50.5

24

41

5.5

22.5

-

7

11

19.5

M5x11

4

5.5

M4×0.7P

FR-20TA

59

76.5

28

49

5

46.5

32

8

10

22.5

M6x10

4

12

M6×1.0P

FR-20SA

59

57.5

28

49

5

27.5

-

8

10

22.5

M6x10

4

12

M6×1.0P

FR-25TA

73

89.0

33

60

6.5

59.0

35

10

16

26

M8x16

4.5

12

M6×1.0P

FR-25SA

73

65.0

33

60

6.5

35.0

-

10

16

26

M8x16

4.5

12

M6×1.0P

FR-30TA

90

102.5

42

72

9

69.0

40

12

18

34.0

M10x18

7

12

M6×1.0P

FR-30SA

90

73.5

42

72

9

40.5

-

12

18

34.0

M10x18

7

12

M6×1.0P

FR-35TA

100

114.0

48

82

9

79.0

50

13

21

39.0

M10x21

8

12

M6×1.0P

FR-35SA

100

80.5

48

82

9

45.5

-

13

21

39.0

M10x21

8

12

M6×1.0P

Width
(W1)

Height
(M1)

Pitch
(F)

B2

B3

dxDxh

C
kgf

Co
kgf

MA
kgf-M

MB
kgf-M

MC
kgf-M

Block
kgf

Rail
kgf

15

15

60

7.5

18.5

4.5×7.5×5.5

850

1380

7.3

7.3

10.1

0.2

1.7

15

15

60

7.5

18.5

4.5×7.5×5.5

550

1132

2.04

2.04

4.08

0.15

1.7

20

18

60

10

19.5

6×9.5×8.5

1410

2430

15.9

15.9

23.7

0.35

2.5

20

18

60

10

19.5

6×9.5×8.5

730

1468

3.06

2.04

7.14

0.42

2.5

23

22

60

11.5

25

7×11×9

2030

3510

27.3

27.5

40.0

0.59

3.6

23

22

60

11.5

25

7×11×9

1190

2295

5.1

4.08

12.24

0.71

3.6

28

26

80

14

31

9×14×12

2860

4770

43.8

43.8

65.8

1.1

5.1

28

26

80

14

31

9×14×12

1754

3315

9.18

8.16

21.42

1.3

5.1

34

29

80

17

33

9×14×12

3800

6230

40.8

34.68

61.2

1.6

6.9

34

29

80

17

33

9×14×12

2428

4498

14.28

12.24

34.68

2.0

6.9
