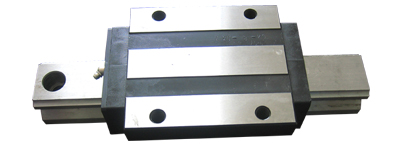

RHD55AL直线滑块
发布时间：2025-06-20
|
|
|
|
|

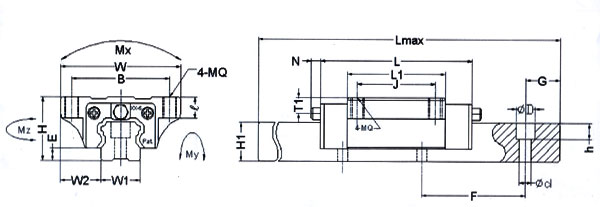

型号 |
组合尺寸 |
滑座尺寸 |
滑轨尺寸 |
|
H |
W |
W2 |
E |
L |
B×J |
MQ×l**/* |
L1 |
油孔 |
T1 |
N |
W1 |
H1 |
F |
d×D×h |
|
RHD15A |
24 |
47 |
16 |
4.6 |
66 |
38×30 |
M5×8 |
40 |
Ф3 |
4.3 |
5 |
15 |
14 |
60 |
4.5×7.5×5.3 |
|
RHD20A |
30 |
63 |
21.5 |
5 |
77.8 |
53×40 |
M6×9 |
48.8 |
M6×1 |
5 |
6.5 |
20 |
18 |
60 |
6×9.5×8.5 |
|
RHD20AL |
92.4 |
63.4 |
|
RHD25A |
36 |
70 |
23.5 |
7 |
88 |
57×45 |
M8×12 |
57 |
M6×1 |
5 |
6.5 |
23 |
22 |
60 |
7×11×9 |
|
RHD25AL |
110.1 |
79.1 |
|
RHD30A |
42 |
90 |
31 |
9 |
109 |
72×52 |
M10×12 |
72 |
M6×1 |
7 |
6.5 |
28 |
26 |
80 |
9×14×12 |
|
RHD30AL |
131.3 |
94.3 |
|
RHD35A |
48 |
100 |
33 |
9.5 |
109 |
82×62 |
M10×13 |
80 |
M6×1 |
8 |
6.5 |
34 |
29 |
80 |
9×14×12 |
|
RHD35AL |
134.8 |
105.8 |
|
RHD45A |
60
(62) |
120 |
37.5 |
14 |
138.2 |
100×80 |
M12×15 |
105 |
M8×1 |
10 |
13 |
45 |
38 |
105
(100) |
14×20×17 |
|
RHD45AL |
163 |
129.8 |
|
RHD55A |
70 |
140 |
43.5 |
15 |
170 |
116×95 |
M14×20 |
121 |
M8×1 |
11 |
13 |
53 |
44 |
120 |
16×23×20 |
|
RHD55AL |
205.1 |
156.1 | |
|
型号 |
参考资料（mm） |
基本荷重(kgf) |
容许静力矩(kgfxm) |
重量 |
|
Lmax |
G |
动额定负荷（c） |
静额定负荷（co） |
Mx |
My |
Mz |
滑块kg |
滑轨kgf/m |
|
RHD15A |
4000 |
30 |
850 |
1650 |
10 |
8 |
8 |
0.19 |
1.4 |
|
RHD20A |
4000 |
30 |
1450 |
2560 |
22 |
18 |
18 |
0.4 |
2.6 |
|
RHD20AL |
1900 |
3330 |
28.6 |
23.4 |
23.4 |
0.52 |
|
RHD25A |
4000 |
30 |
2140 |
4000 |
36 |
32 |
31 |
0.57 |
3.6 |
|
RHD25AL |
2996 |
5600 |
50.4 |
44.8 |
43.4 |
0.72 |
|
RHD30A |
4000 |
40 |
2980 |
5490 |
60 |
50 |
49 |
1.1 |
5.2 |
|
RHD30AL |
3900 |
7190 |
78.5 |
65 |
65 |
1.4 |
|
RHD35A |
4000 |
40 |
3960 |
7010 |
96 |
75 |
73 |
1.6 |
7.2 |
|
RHD35AL |
5230 |
9270 |
125 |
95 |
95 |
2 |
|
RHD45A |
4000 |
50
52.5 |
6740 |
12100 |
216 |
170 |
168 |
2.7 |
12.3 |
|
RHD45AL |
8330 |
14950 |
267 |
210 |
210 |
3.6 |
|
RHD55A |
4000 |
60 |
9940 |
17100 |
367 |
293 |
288 |
5 |
16.9 |
|
RHD55AL |
12820 |
22060 |
473 |
380 |
375 |
6.4 | |
