BRC15UO滑块、BRC15SU滑块、BRC20UO滑块、BRC20SU滑块、BRC25UO滑块、BRC25SU滑块、BRC25LU滑块、BRC30UO滑块、BRC30SU滑块、BRC30LU滑块、BRC35UO滑块、BRC35SU滑块、BRC35LU滑块、BRC45UO滑块、BRC45LU滑块、BRC55UO滑块、BRC55LU滑块

发布时间：2025-06-19

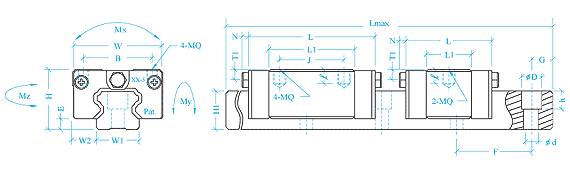

老型号新型号组合尺寸(mm) 滑座尺寸(mm) 滑轨尺寸

H W W2 E L B×J MQ×L L1 油孔 T1 N W1

BRS15B BRC15UO 24 34 9.5 4.6 66 26×26 M4×5.6 40 Ø3 4.3 5 15

BRS15BS BRC15SU 47.6 26×- 21.6

BRS20B BRC20UO 28 42 11 5 77.8 32×32 M5×7 48.8 M6×1 5 6.5 20

BRS20BS BRC20SU 58 32×- 28

BRS25B BRC25UO 33 48 12.5 7 88 35×35 M6×8.4 57 M6×1 4.8 6.5 23

BRS25BS BRC25SU 62.5 35×- 31.5

BRS25BL BRC25LU 110.1 35×50 79.1

BRS30B BRC30UO 42 60 16 9 109 40×40 M8×11.2 72 M6×1 7 6.5 28

BRS30BS BRC30SU 75.6 40×- 38.6

BRS30BL BRC30LU 131.3 40×60 94.3

BRS35B BRC35UO 48 70 18 9.5 119 50×50 M8×11.2 80 M6×1 8 6.5 34

BRS35BS BRC35SU 84.7 50×- 45.7

BRS35BL BRC35LU 144.8 50×72 105.8

BRS45B BRC45UO 60 86 20.5 14 148.2 60×60 M10×14 105 M8×1 8.5 13 45

BRS45BL BRC45LU 173 60×80 129.8

BRS55B BRC55UO 68 100 23.5 15 170 75×75 M12×15 121 M8×1 8 13 53

BRS55BL BRC55LU 205.1 75×95 156.1

老型号新型号参考资料(mm) 基本荷重(kgf) 容许静力矩(kgf×m) 重量(mm) 滑轨尺寸

L max G 动额定负荷(G) 静额定负荷(G) Mx My Mz 滑块滑轨

(kgf) (kgf/M) H1 F d×D×h

BRS15B BRC15UO 4000 20 850 1650 10 8 8 0.17 1.4 14 60 4.5×7.5×5.3

BRS15BS BRC15SU 510 950 6 4.8 4.8 0.1

BRS20B BRC20UO 4000 20 1450 2650 22 18 18 0.26 2.6 18 60 6×9.5×8.5

BRS20BS BRC20SU 830 1470 12.6 10.3 10.3 0.17

BRS25B BRC25UO 4000 20 2140 4000 36 32 31 0.38 3.6 22 60 7×11×9

BRS25BS BRC25SU 1190 2230 20 17.5 17.2 0.21

BRS25BL BRC25LU 2996 5600 50.4 44.8 43.4 0.53

BRS30B BRC30UO 4000 20 2980 5490 60 50 49 0.81 5.2 26 80 9×14×12

BRS30BS BRC30SU 1595 2940 32 27 27 0.48

BRS30BL BRC30LU 3900 7190 78.5 65 65 1.06

BRS35B BRC35UO 4000 20 3960 7010 96 75 73 1.2 7.2 29 80 9×14×12

BRS35BS BRC35SU 2260 4000 54.5 42.5 41.5 0.8

BRS35BL BRC35LU 5230 9270 125 95 95 1.6

BRS45B BRC45UO 4000 22.5 6740 12100 216 170 168 2.1 12.3 38 105 14×20×17

BRS45BL BRC45LU 8330 14950 267 210 210 2.6

BRS55B BRC55UO 4000 30 9940 17100 367 293 288 3.6 16.9 44 120 16×23×20

BRS55BL BRC55LU 12820 22060 473 380 375 4.6
