SQ6C杆端关节轴承目录
发布时间：2025-06-20

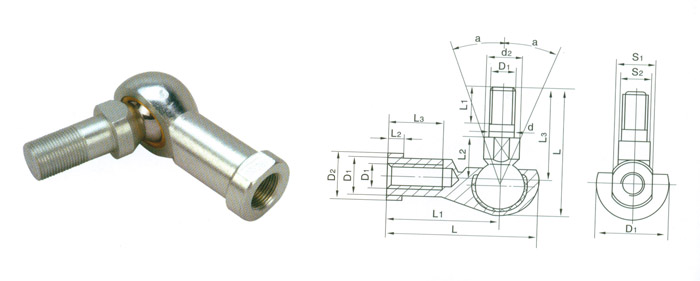

SQ...C
|
轴承型号Designation |
尺寸Dimensions (mm) |
额定负荷 Load ratings |
a° | |||||||||||||||
|
d1 |
L |
d2 |
D1 |
D3 |
d |
L1 |
L2 |
L3 |
S1 |
L1 |
L2 |
L3 |
S2 |
D2 |
动 Dyn. |
静 Stat. | ||
|
SQ5C |
M5×0.8 |
36 |
9 |
9 |
18 |
5 |
27 |
4 |
14 |
7 |
8 |
10 |
21 |
10 |
18 |
2.7 |
9.2 |
25 |
|
SQ6C |
M6×1 |
40.5 |
10 |
10 |
20 |
6 |
30 |
5 |
14 |
8 |
11 |
11 |
26 |
10 |
20 |
3.6 |
12 |
25 |
|
SQ8C |
M8×1.25 |
49 |
12 |
12.5 |
25 |
8 |
36 |
5 |
17 |
10 |
12 |
14 |
31 |
13 |
25 |
5.7 |
19 |
25 |
|
SQ10C |
M10×1.25 |
58 |
14 |
15 |
29 |
10 |
43 |
6.5 |
21 |
11 |
15 |
17 |
37 |
16 |
29 |
8.2 |
27 |
25 |
|
SQ12C |
M12×1.25 |
66 |
19 |
17.5 |
31 |
12 |
50 |
6.5 |
25 |
16 |
17 |
19 |
42 |
18 |
31 |
11 |
37 |
25 |
|
SQ14C |
M14×1.5 |
75 |
19 |
20 |
35 |
14 |
57 |
8 |
26 |
16 |
22 |
21.5 |
56 |
21 |
35 |
14 |
48 |
25 |
|
SQ16C |
M16×1..5 |
84 |
22 |
22 |
39 |
16 |
64 |
8 |
32 |
18 |
23 |
23.5 |
60 |
24 |
39 |
16 |
53 |
20 |
|
SQ18C |
M18×1.5 |
93 |
25 |
25 |
44 |
18 |
71 |
10 |
34 |
21 |
25 |
26.5 |
68 |
27 |
44 |
18 |
61 |
20 |
|
SQ20C |
M20×1.5 |
99 |
29 |
27.5 |
44 |
20 |
77 |
10 |
35 |
24 |
25 |
27 |
68 |
30 |
44 |
18 |
61 |
20 |
|
SQ22C |
M22×1.5 |
109 |
29 |
30 |
50 |
22 |
84 |
12 |
41 |
24 |
26 |
28 |
70 |
30 |
50 |
22 |
75 |
10 |
