搜轴承 -- 黑板报 -- 非标轴承GW208PPB5、GW208PPB8、GW209PPB5、GW209PPB8、GW210PPB...

非标轴承GW208PPB5、GW208PPB8、GW209PPB5、GW209PPB8、GW210PPB4、GW211PPB11、GW211PPB3、GW211PPB6、W208PPB11、W208PPB12、W208PPB13、W208PPB18、W208PPB19、W208PPB5、W208PPB8、W208PPB9

发布时间：2025-05-05

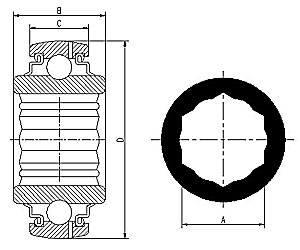

型号 主要尺寸(in) 额定负载(N) 重量(Kg) XLB d D Bi Be Cr (参考) GW208PPB5 1 1/8 3.1496 1.437 0.708 26200 0.67 GW208PPB8 1 1/8 3.1496 1.437 1.189 26200 0.75 GW209PPB5 1 1/4 3.3464 1.437 1.189 29200 0.79 GW209PPB8 1 1/4 3.3464 1.437 0.748 29200 0.75 GW210PPB4 1 1/8 3.5433 1.189 1.189 31500 0.96 GW211PPB11 1 1/2 3.937 1.75 0.984 39100 1.02 GW211PPB3 1 1/2 3.937 1.311 1.311 39100 1.21 GW211PPB6 1 1/2 4.125 1.75 1.437 39100 1.86 W208PPB11 7/8 3.428 1.437 1.189 26200 0.93 W208PPB12 1 1/8 3.428 1.437 1.189 26200 0.85 W208PPB13 7/8 3.1496 1.437 0.708 26200 0.73 W208PPB18 7/8 3.4385 1.437 1.189 26200 0.93 W208PPB19 1 1/8 3.4385 1.437 1.189 26200 0.85 W208PPB5 1 1/8 3.1496 1.437 0.708 26200 0.67 W208PPB8 1 1/8 3.1496 1.437 1.189 26200 0.75 W208PPB9 1 3.1496 1.437 1.189 26200 0.79 W209PPB5 1 1/4 3.3464 1.437 1.189 29200 0.79 W209PPB7 1 1/4 34380 1.437 1.189 29200 0.84 W209PPB8 1 1/4 3.3464 1.437 0.748 29200 0.75 W210PPB4 1 1/8 3.5433 1.189 1.189 31500 0.96
