圆柱滚子轴承RNU1005、RNU1006、RNU1007、RNU1008、RNU1009、RNU1010、RNU1011、RNU1012、RNU1013、RNU1014、RNU1015、RNU1016、RNU1017、RNU1018、RNU1019、RNU1020、RNU1021、RNU1022、RNU1024、RNU1026、RNU1028、RNU103032、RNU1034、RNU1036、RNU1038、RNU1040

发布时间：2025-10-22

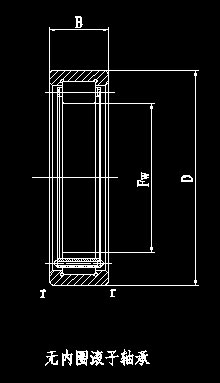

RNU型无内圈圆柱滚子轴承.

该种轴承仅由带双挡边的外圈,全套滚子和保持架组成,适用于直径方向尺寸受限制的部件中,轴颈表面直接作为滚动面,若轴颈表面的硬度和粗糙度与轴承公差有特殊要求时,可另行规定.

轴承型号	尺寸㎜							轴承原型号 292100型
轴承型号	FW	FW公差	D	B	rsmin	d2max	a	轴承原型号 292100型
RNU1005	30.5	+0.015 0	47	12	0.6	32.6	3.25	292105
RNU1006	36.5		55	13	1	38.9	3.5	292106
RNU1007	42		62	14	1	44.5	3.75	292107
RNU1008	47		68	15	1	49.7	4	292108
RNU1009	52.5		75	16	1	55.3	4.25	292109
RNU1010	57.5		80	16	1	60.4	4.25	292110
RNU1011	64.5	+0.020 0	90	18	1.1	67.9	5	292111
RNU1012	69.5		95	18	1.1	72.7	5	292112
RNU1013	74.5		100	18	1.1	77.5	5	292113
RNU1014	80		110	20	1.1	83.8	5	292114
RNU1015	85		115	20	1.1	89	5	292115
RNU1016	91.5		125	22	1.1	95.7	5.5	292116
RNU1017	96.5		130	22	1.1	100.8	5.5	292117
RNU1018	103		140	24	1.5	107.8	6	292118
RNU1019	108		145	24	1.5	112.3	6	292119
RNU1020	113		150	24	1.5	117.5	6	292120
RNU1021	119.5		160	26	2	124.7	6.5	292121
RNU1022	125		170	28	2	130.7	6.5	292122
RNU1024	135		180	28	2	140.7	6.5	292124
RNU1026	148	+0.025 0	200	33	2	154.5	8	292126
RNU1028	158		210	33	2	164.5	8	292128
RNU1030	169.5		225	35	2.1	176.7	8.5	292130
RNU1032	180		240	38	2.1	186.8	9	292132
RNU1034	193		260	42	2.1	201.7	10	292134
RNU1036	205		280	46	2.1	214.5	10.5	292136
RNU1038	215		290	46	2.1	225	10.5	292138
RNU1040	229		310	51	2.1	239.4	12.5	292140
