不锈钢非标轴承系列（图片）
发布时间：2025-06-20
|
|

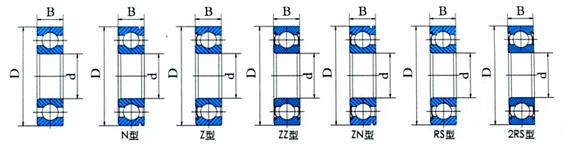

轴承型号
No. |
内径
d
mm in |
外径
D
mm in |
宽度
B
mm in |
倒角
rmin
mm |
额定载荷（KN） |
钢球参数 |
Dynamic
Cr |
Static
Cor |
NO. |
Size
mm |
ssR3
开闭 |
4.763 |
.1875 |
12.70 |
.5000 |
3.967
4.978 |
.1562
.1960 |
0.3 |
0.89 |
0.42 |
6 |
2.381 |
| ssR3A |
4.763 |
.1875 |
15.875 |
.6250 |
4.978 |
.1960 |
0.3 |
0.31 |
0.49 |
7 |
2.381 |
| ssR168 |
6.35 |
.2500 |
9.525 |
.3750 |
3.175 |
.1250 |
0.1 |
0.27 |
0.14 |
|
|
| ssR188 |
6.35 |
.2500 |
12.70 |
.5000 |
3.175 |
.1250 |
0.15 |
0.83 |
0.37 |
8 |
1.588 |
| ssR4 |
6.35 |
.2500 |
15.875 |
.6250 |
4.978 |
.1960 |
0.30 |
1.136 |
0.558 |
8 |
2.381 |
ssR4A
开闭 |
6.35 |
.2500 |
19.05 |
.7500 |
5.556
7.142 |
.2188
.2812 |
0.40 |
2.175 |
1.163 |
6 |
3.969 |
ssR6
开闭 |
9.525 |
.3750 |
22.225 |
.8570 |
5.556
7.142 |
.2188
.2812 |
0.40 |
2.56 |
1.35 |
7 |
3.969 |
|
ssR8
开闭 |
12.70 |
.5000 |
28.575 |
1.1250 |
6.350
7.938 |
.2500
.3125 |
0.40 |
3.90 |
2.23 |
8 |
4.763 |
| ssR8-7 |
11.113 |
.4375 |
28.575 |
1.1250 |
6.35 |
.2500 |
0.40 |
3.912 |
2.245 |
8 |
4.763 |
|
ssR10
开闭 |
15.875 |
.6250 |
34.925 |
1.3750 |
7.142
8.731 |
.2812
.3437 |
0.60 |
4.62 |
2.79 |
10 |
4.763 |
ssR12
开闭 |
19.05 |
.7500 |
41.275 |
1.6250 |
7.938
11.113 |
.3125
.4375 |
0.60 |
7.24 |
4.46 |
9 |
6.350 |
| ss99502H |
15.875 |
.6250 |
34.925 |
1.3750 |
7.938 |
.3125 |
0.80 |
4.61 |
2.77 |
8 |
5.953 |
ssR14
开闭 |
22.225 |
.8750 |
47.625 |
1.8750 |
9.525
12.70 |
.3705
.5000 |
0.60 |
7.74 |
4.96 |
|
|
ssR16
开闭 |
25.4 |
1.0000 |
50.80 |
2.0000 |
9.525
12.70 |
.3705
.5000 |
0.60 |
7.74 |
5.16 |
|
|
ssR18
开闭 |
28.575 |
1.1250 |
53.975 |
2.1250 |
9.525
12.70 |
.3705
.5000 |
0.60 |
10.18 |
6.19 |
|
