长圆柱滚子轴承-第五页
发布时间：2025-12-13
 |
|

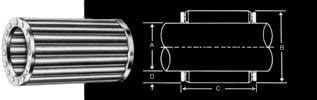

Bearing |
Shaft |
Outside |
Operating |
Roller | |
|
Number |
Dia. |
Dia. |
Space |
Dia. | |
|
A |
B |
C |
D | ||
| YD93016 | .3750 | .812 | 1.000 | .1875 | |
| YD93020 | .3750 | .812 | 1.250 | .1875 | |
| YD93024 | .3750 | .812 | 1.500 | .1875 | |
| YD93028 | .3750 | .812 | 1.750 | .1875 | |
| YD93032 | .3750 | .812 | 2.000 | .1875 | |
| YD07220 | .4375 | .812 | 1.250 | .1562 | |
| YD07224 | .4375 | .812 | 1.500 | .1562 | |
| YD93112 | .5000 | .937 | .750 | .1875 | |
| YD93116 | .5000 | .937 | 1.000 | .1875 | |
| YD93118 | .5000 | .937 | 1.125 | .1875 | |
| YD93120 | .5000 | .937 | 1.250 | .1875 | |
| YD93122 | .5000 | .937 | 1.375 | .1875 | |
| YD93124 | .5000 | .937 | 1.500 | .1875 | |
| YD93128 | .5000 | .937 | 1.750 | .1875 | |
| YD93132 | .5000 | .937 | 2.000 | .1875 | |
| YD94112 | .5000 | 1.062 | .750 | .2500 | |
| YD94116 | .5000 | 1.062 | 1.000 | .2500 | |
| YD94118 | .5000 | 1.062 | 1.125 | .2500 | |
| YD94120 | .5000 | 1.062 | 1.250 | .2500 | |
| YD94124 | .5000 | 1.062 | 1.500 | .2500 | |
| YD94128 | .5000 | 1.062 | 1.750 | .2500 | |
| YD94132 | .5000 | 1.062 | 2.000 | .2500 | |
| YD94136 | .5000 | 1.062 | 2.250 | .2500 | |
| YD94140 | .5000 | 1.062 | 2.500 | .2500 | |
| YD95116 | .5000 | 1.187 | 1.000 | .3125 | |
| YD95120 | .5000 | 1.187 | 1.250 | .3125 | |
| YD95122 | .5000 | 1.187 | 1.375 | .3125 | |
| YD95124 | .5000 | 1.187 | 1.500 | .3125 | |
| YD95128 | .5000 | 1.187 | 1.750 | .3125 | |
| YD95130 | .5000 | 1.187 | 1.875 | .3125 | |
| YD95132 | .5000 | 1.187 | 2.000 | .3125 | |
| YD95136 | .5000 | 1.187 | 2.250 | .3125 | |
| YD95140 | .5000 | 1.187 | 2.500 | .3125 | |
| YD95148 | .5000 | 1.187 | 3.000 | .3125 | |
| YD09316 | .5625 | 1.000 | 1.000 | .1875 | |
| YD09320 | .5625 | 1.000 | 1.250 | .1875 | |
| YD09324 | .5625 | 1.000 | 1.500 | .1875 | |
| YD09416 | .5625 | 1.125 | 1.000 | .2500 | |
| YD09420 | .5625 | 1.125 | 1.250 | .2500 | |
| YD09424 | .5625 | 1.125 | 1.500 | .2500 | |
| YD09428 | .5625 | 1.125 | 1.750 | .2500 | |
| YD09432 | .5625 | 1.125 | 2.000 | .2500 | |
| YD09440 | .5625 | 1.125 | 2.500 | .2500 | |
| YD92216 | .6250 | 1.000 | 1.000 | .1562 | |
| YD92220 | .6250 | 1.000 | 1.250 | .1562 | |
| YD92224 | .6250 | 1.000 | 1.500 | .1562 | |
| YD93212 | .6250 | 1.062 | .750 | .1875 | |
| YD93214 | .6250 | 1.062 | .875 | .1875 | |
| YD93216 | .6250 | 1.062 | 1.000 | .1875 | |
| YD93218 | .6250 | 1.062 | 1.125 | .1875 | |
| YD93220 | .6250 | 1.062 | 1.250 | .1875 | |
| YD93224 | .6250 | 1.062 | 1.500 | .1875 | |
| YD93220 | .6250 | 1.062 | 1.750 | .1875 | |
| YD93232 | .6250 | 1.062 | 2.000 | .1875 | |
| YD93240 | .6250 | 1.062 | 2.500 | .1875 | |
| YD94212 | .6250 | 1.187 | .750 | .2500 | |
| YD94216 | .6250 | 1.187 | 1.000 | .2500 | |
| YD94218 | .6250 | 1.187 | 1.125 | .2500 | |
| YD94220 | .6250 | 1.187 | 1.250 | .2500 | |
| YD94222 | .6250 | 1.187 | 1.375 | .2500 | |
| YD94223 | .6250 | 1.187 | 1.438 | .2500 | |
| YD94224 | .6250 | 1.187 | 1.500 | ;2500 | |
| YD94226 | .6250 | 1.187 | 1.625 | .2500 | |
| YD94228 | .6250 | 1.187 | 1.750 | .2500 | |
| YD94230 | .6250 | 1.187 | 1.875 | .2500 | |
| YD94232 | .6250 | 1.187 | 2.000 | .2500 | |
| YD94236 | .6250 | 1.187 | 2.250 | .2500 | |
| YD94240 | .6250 | 1.187 | 2.500 | .2500 | |
| YD94248 | .6250 | 1.187 | 3.000 | .2500 | |
| YD95216 | .6250 | 1.312 | 1.000 | .3125 | |
| YD95220 | .6250 | 1.312 | 1.250 | .3125 | |
| YD95224 | .6250 | 1.312 | 1.500 | .3125 | |
| YD95228 | .6250 | 1.312 | 1.750 | .3125 | |
| YD95232 | .6250 | 1.312 | 2.000 | .3125 | |
| YD95236 | .6250 | 1.312 | 2.250 | .3125 | |
| YD95240 | .6250 | 1.312 | 2.500 | .3125 | |
| YD96216 | .6250 | 1.437 | 1.000 | .3750 | |
| YD96224 | .6250 | 1.437 | 1.500 | .3750 | |
| YD96228 | .6250 | 1.437 | 1.750 | .3750 | |
| YD96232 | .6250 | 1.437 | 2.000 | .3750 | |
| YD96240 | .6250 | 1.437 | 2.500 | .3750 | |
| YD96244 | .6250 | 1.437 | 2.750 | .3750 | |
| YD96248 | .6250 | 1.437 | 3.000 | .3750 | |
| YD110316 | .6875 | 1.125 | 1.000 | .1875 | |
| YD110320 | .6875 | 1.125 | 1.250 | .1875 | |
| YD93312 | .7500 | 1.187 | .750 | .1875 | |
| YD93316 | .7500 | 1.187 | 1.000 | .1875 | |
| YD93318 | .7500 | 1.187 | 1.125 | .1875 | |
| YD93320 | .7500 | 1.187 | 1.250 | .1875 | |
| YD93322 | .7500 | 1.187 | 1.375 | .1875 | |
| YD93323 | .7500 | 1.187 | 1.438 | .1875 | |
| YD93324 | .7500 | 1.187 | 1.500 | .1875 | |
| YD93326 | .7500 | 1.187 | 1.625 | .1875 | |
| YD93328 | .7500 | 1.187 | 1.750 | .1875 | |
| YD93330 | .7500 | 1.187 | 1.875 | .1875 | |
| YD93332 | .7500 | 1.187 | 2.000 | .1875 | |
| YD93336 | .7500 | 1.187 | 2.250 | .1875 | |
| YD93340 | .7500 | 1.187 | 2.500 | .1875 | |
| YD93348 | .7500 | 1.187 | 3.000 | .1875 | |
| YD94316 | .7500 | 1.312 | 1.000 | .2500 | |
| YD94320 | .7500 | 1.312 | 1.250 | .2500 | |
| YD94324 | .7500 | 1.312 | 1.500 | .2500 | |
| YD94328 | .7500 | 1.312 | 1.750 | .2500 | |
| YD94330 | .7500 | 1.312 | 1.875 | .2500 | |
| YD94332 | .7500 | 1.312 | 2.000 | .2500 | |
| YD94336 | .7500 | 1.312 | 2.250 | .2500 | |
| YD94340 | .7500 | 1.312 | 2.500 | .2500 | |
| YD95312 | .7500 | 1.437 | .750 | .3125 | |
| YD95316 | .7500 | 1.437 | 1.000 | .3125 | |
| YD95320 | .7500 | 1.437 | 1.250 | .3125 | |
| YD95324 | .7500 | 1.437 | 1.500 | .3125 | |
| YD95328 | .7500 | 1.437 | 1.750 | .3125 | |
| YD95330 | .7500 | 1.437 | 1.875 | .3125 | |
| YD95332 | .7500 | 1.437 | 2.000 | .3125 | |
| YD95336 | .7500 | 1.437 | 2.250 | .3125 | |
| YD95340 | .7500 | 1.437 | 2.500 | .3125 | |
| YD95344 | .7500 | 1.437 | 2.750 | .3125 | |
| YD95348 | .7500 | 1.437 | 3.000 | .3125 | |
| YD95324 | .7500 | 1.500 | 1.500 | .3125 | |
| YD95332 | .7500 | 1.500 | 2.000 | .3125 | |
| YD95340 | .7500 | 1.500 | 2.500 | .3125 | |
